Description

The YOKOGAWA CP451-10 module is part of Yokogawa’s advanced industrial automation and control systems.

Product Name:

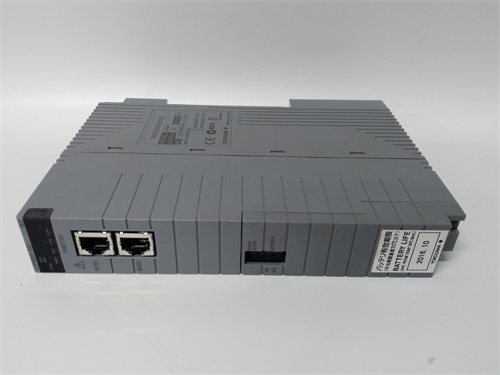

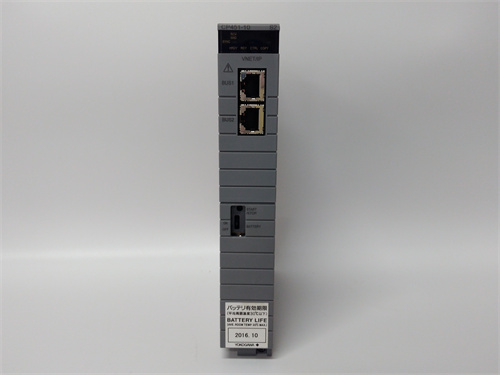

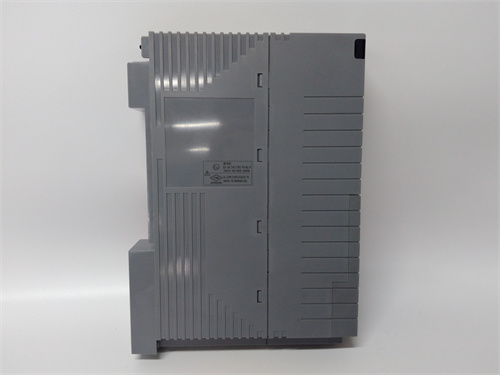

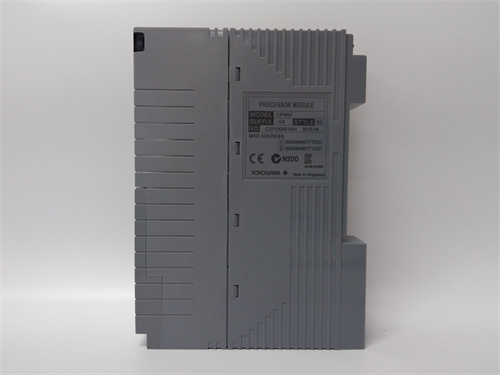

YOKOGAWA CP451-10

Product Description:

The CP451-10 is a versatile, high-performance controller module designed to be part of Yokogawa’s CENTUM VP and ProSafe-RS systems. It acts as a controller within these systems, enabling complex processes to be controlled and monitored in industries such as oil and gas, power generation, chemical processing, and other industrial automation applications. The CP451-10 is known for its reliability, high-speed processing, and integration capabilities with other control modules.

Key Features:

• High-performance Processing: Designed to handle high-speed, real-time processing needs, ensuring optimal control and monitoring of complex processes.
• Redundancy Support: For high availability and system reliability, the CP451-10 can be configured in redundant pairs for failover capability.
• Open Communication Protocols: The module supports communication protocols like Modbus, OPC, and others, allowing for seamless integration with third-party systems.
• Scalability: It is suitable for large-scale systems and can be expanded easily by integrating additional modules.
• Diagnostics and Maintenance: Advanced diagnostic features for system health monitoring, preventive maintenance, and troubleshooting.

Product Parameters and Specifications:

• Model Number: CP451-10
• Operating Voltage: 24V DC (nominal)
• Current Consumption: Typically 1.0 A (at 24V DC)
• Temperature Range:
  • Operating: 0°C to 55°C (32°F to 131°F)
  • Storage: -20°C to 70°C (-4°F to 158°F)
• Humidity: 5% to 95% RH (Non-condensing)
• Power Consumption: Approximately 20W (depending on load and configuration)
• Communication Ports:
  • Ethernet (supports various protocols such as TCP/IP, UDP)
  • Serial ports (for legacy communication)
  • Fieldbus (supports various protocols for communication with field devices)

Functionality:

• Control Functions: Process control, data acquisition, system diagnostics, alarm management, and historical data logging.
• Redundancy: Supports system redundancy for critical applications requiring high availability.
• Modularity: Can be combined with other control modules and I/O units for a customized control solution.
• Process Control: Suitable for applications such as PLCs, DCS, SCADA, and more.

Product Use:

The YOKOGAWA CP451-10 module is used primarily in distributed control systems (DCS) and safety instrumented systems (SIS) for large industrial plants. Its main applications include:

• Oil & Gas: For real-time monitoring and control of extraction, refining, and transportation processes.
• Power Generation: In control systems for power plants, including those for renewable energy and conventional power generation.
• Chemical & Petrochemical: For process control in chemical production and refinery processes.
• Water & Wastewater: Monitoring and control of treatment processes in municipal water facilities.
• Manufacturing and Industrial Automation: As part of complex automation systems in manufacturing plants requiring real-time process control.
