YOKOGAWA+ATK4A-00

Description

Product Name:

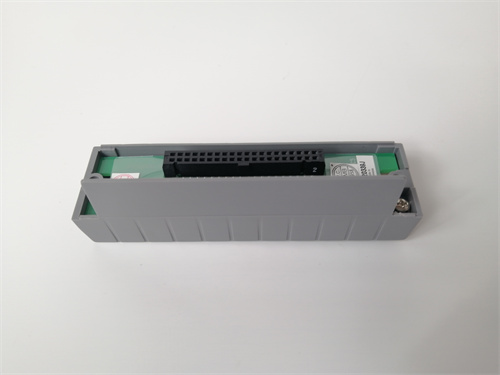

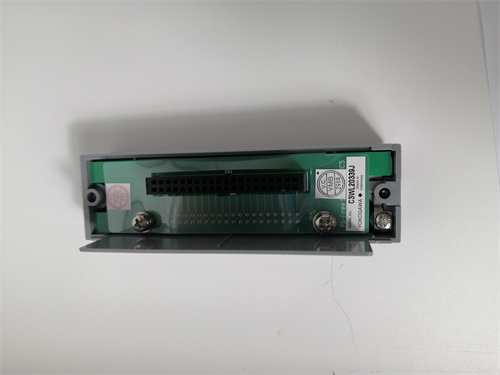

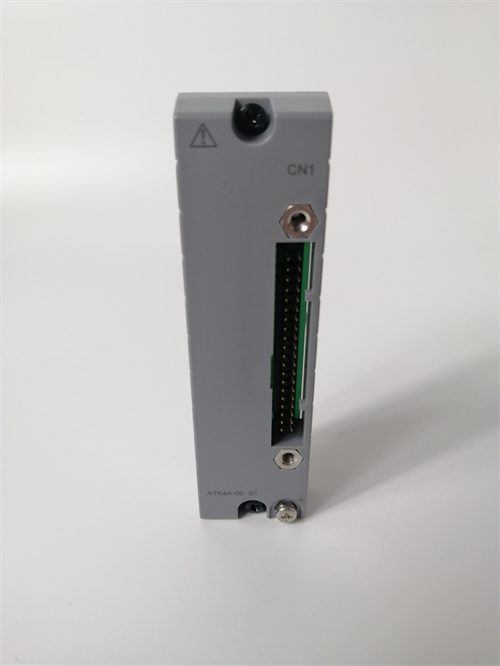

Yokogawa+ATK4A-00 KS Cable interface adapter

Product Description:

The module acts as an interface adapter for the Yokogawa Electric control system. It provides connectivity and signal processing for 2 – or 4-wire transmitters used in the process industry.

Product Parameters/Specifications:

Input signal type: Support 4 ~ 20ma DC and 1 ~ 5v DC voltage range, usually used in process transmitters.
Input current/voltage Limit: Depending on the configuration, the module can handle input current up to 27ma and input voltage up to ± 7.5V or ±13v.
Number of input channels: There are 16 non-isolated channels for signal processing.
Output: The data sheet you found earlier mentions a transmitter, but the ATK4A-00 does not directly output processed signals. It interfaces with other modules within the Yokogawa DCS system for further processing and control of actions.
Isolation: Provides current isolation between input and output signals to reduce noise interference.
Power: May receive power from Yokogawa DCS backplane.
Installation: Installed on the rack in the Yokogawa DCS system.
