YOKOGAWA+ALR121-S00

Description

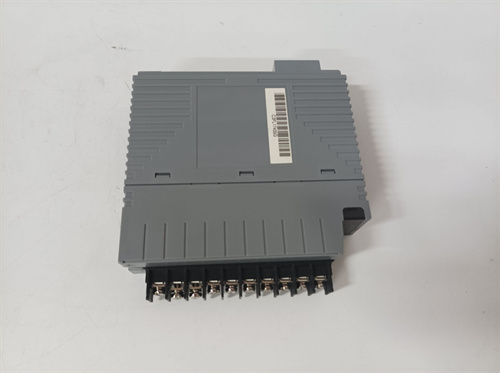

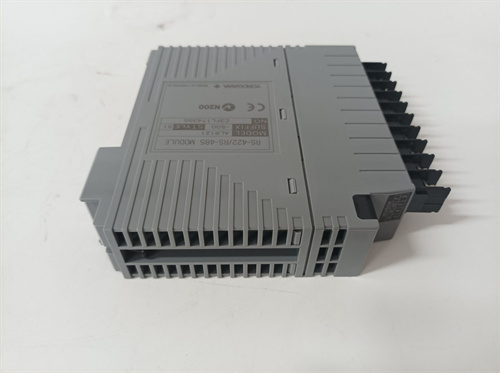

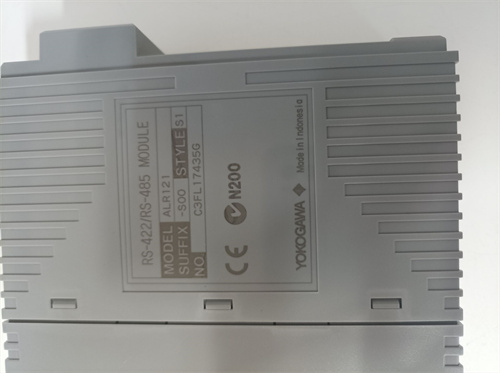

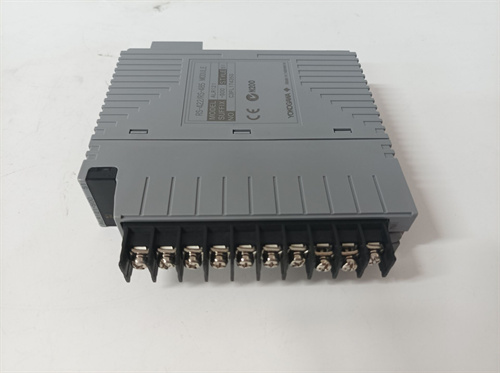

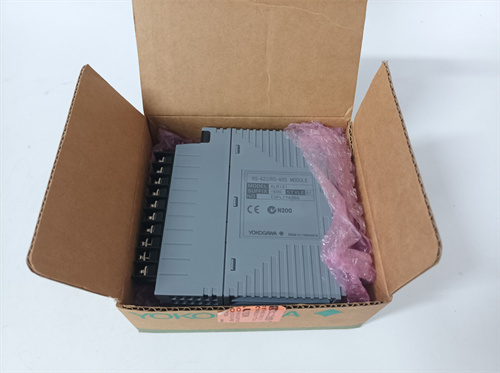

The YOKOGAWA ALR121-S00 is a signal conditioning module primarily designed for use with the YOKOGAWA STARDOM series of controllers.

Product Name:

YOKOGAWA ALR121-S00

Product Description:

The ALR121-S00 is a field signal conditioning module that provides signal conversion and isolation for use with the YOKOGAWA STARDOM series controllers. It is designed to accept various types of analog signals and convert them into a format suitable for input into the controller. The module provides high accuracy and reliability in industrial process control and monitoring applications.

Product Parameters:

The module accepts a wide range of input signals including voltage, current, thermocouple, RTD, and resistance signals. It provides isolation and conversion to a standard 4-20 mA signal for transmission to the controller.

Specifications:

– Input Types: Voltage (0-5V, 1-5V, 0-10V), Current (4-20 mA), Thermocouple (J, K, T, E, R, S), RTD (Pt100, Pt50, JPt100, JIS, DIN), Resistance (50Ω to 500Ω)
– Output: 4-20 mA
– Power Supply: 24 VDC
– Isolation: 1 kV between input, output, power supply, and communication ports
– Operating Temperature: -20 to 60°C

Product Use:

The ALR121-S00 module is used to interface with various field sensors and devices in industrial process control systems. It provides signal conditioning, isolation, and conversion capabilities, allowing the integration of diverse analog signals into the YOKOGAWA STARDOM controllers.
