YOKOGAWA+ALR121-S00

Description

Product Name:

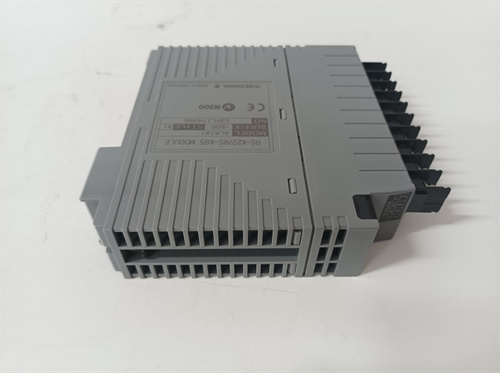

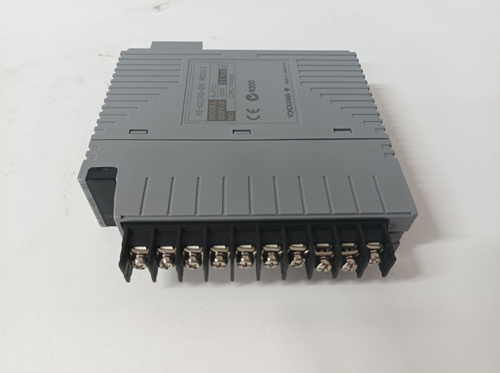

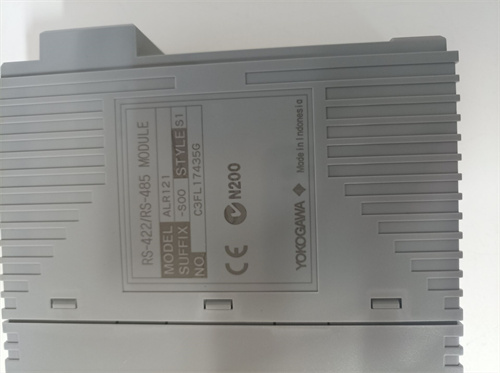

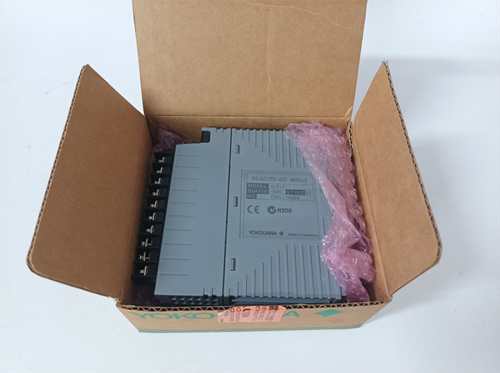

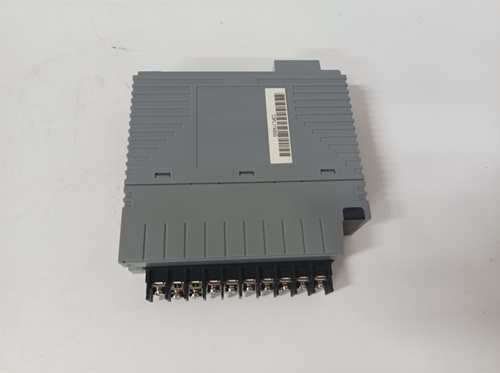

Yokogawa + alr121-500 serial communication module

Product Description:

The module acts as a serial communication interface in Yokogawa Electric control systems or industrial automation applications. It supports serial communication between various subsystems such as field control units (FCU) and FA-M3 controllers.
Product parameters/Specifications:

Compatible Field control units: Compatible with Yokogawa Field Control Unit (FCU) models such as AFV10, AFV30, AFV40, AFF50, ANB10, ANB11 and ANR10
Communication interface: Support RS-232C, RS-422, RS-485 serial communication protocol
Transmission speed: Support 1200, 2400, 4800, 9600, 19200, 38400bps (bits per second) and other transmission speeds
Transmission code: Support ASCII and binary transmission code
Character length: Supports 7 or 8 characters
Stop bit length: Supports one or two stop bits
Parity check: Supports none, even, and parity check
Maximum transmission distance: 15 meters for point-to-point connections (RS-232C) and 1200 meters for extended multipoint connections (RS-485)
Installation: Installed on the field control unit mentioned earlier [1].
I/O cabling: Requires specific Yokogawa cables (AKB131, AKB132, AKB133, AKB134) with 3 pairs of shielded signal transmission
Power consumption: about 0.5A
