YOKOGAWA+AIP171

Description

Product Name:

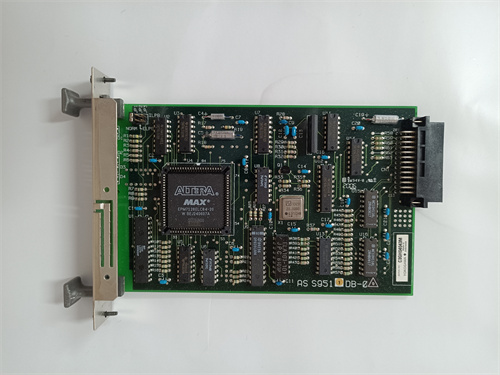

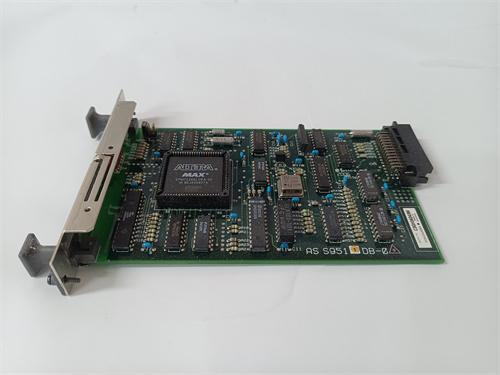

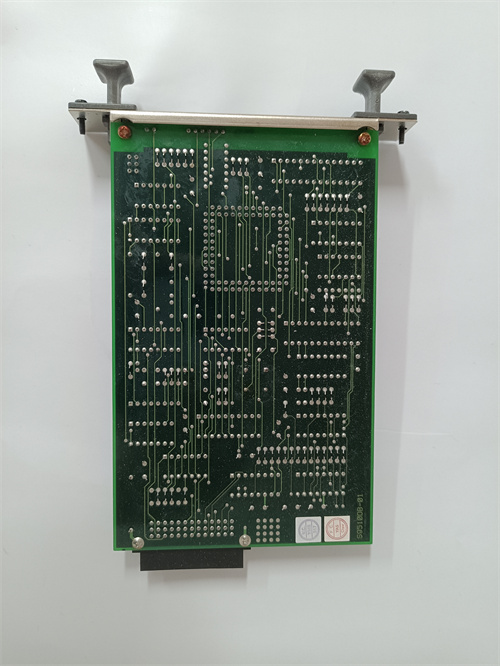

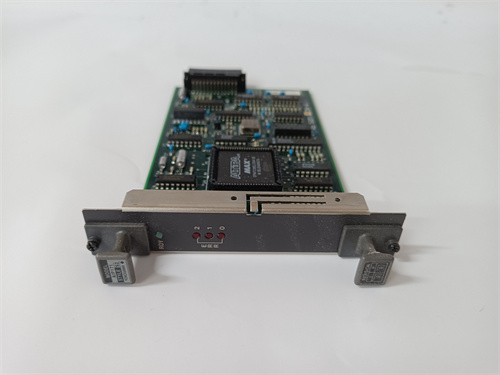

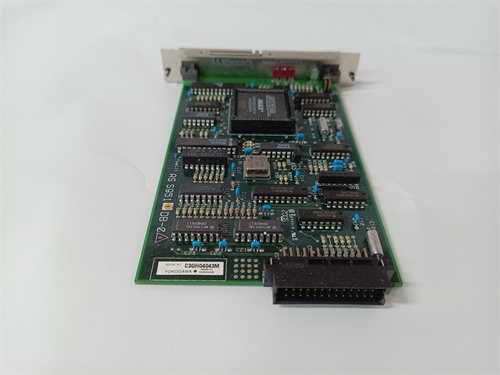

YOKOGAWA AIP171 Module

Product Description:

The YOKOGAWA AIP171 module is a high-precision analog input module designed for industrial process control applications.

Product Parameters:

– Number of Channels: 8
– Input Type: Voltage/Current
– Input Range: Programmable from -10 V to 10 V, -20 mA to 20 mA
– Resolution: 16-bit
– Isolation: 2500 Vrms

Specifications:

– Input Accuracy: ±0.05% of input range
– Update Rate: 10 ms per channel
– Temperature Drift: 0.01% FS/°C
– Common Mode Rejection Ratio: 86 dB (DC to 60 Hz)

Product Use:

The YOKOGAWA AIP171 module is used for accurate and reliable measurement of analog signals in industrial control systems. It provides high-resolution data acquisition and can be integrated with YOKOGAWA’s control systems for monitoring and controlling industrial processes.
