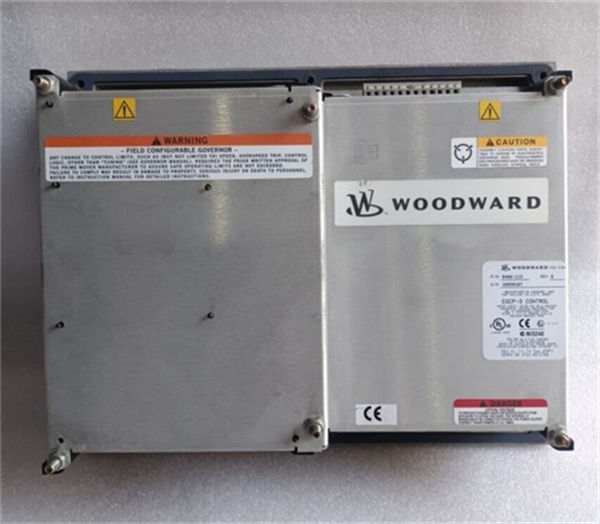

WOODWARD+EGCP-2 8406-121

Description

The WOODWARD EGCP-2 8406-121 Controller is part of Woodward’s family of industrial control products used primarily in power generation and turbine control systems. It is designed for the precise control of gas and steam turbines, as well as other types of mechanical power generation systems.

Product Name:

WOODWARD EGCP-2 8406-121 Controller

Product Description:

The EGCP-2 (Electronic Governor Control Panel) is a microprocessor-based control system designed for the regulation and control of turbine or engine-based generation systems. It integrates all of the necessary features for controlling turbine load, speed, and protection, and is designed to work with a variety of turbine models, engines, and other rotating equipment. The EGCP-2 provides features like automatic load sharing, control of the generator’s speed and frequency, and communication with external supervisory systems.

Key Features:

• Advanced Control Functionality: Can manage turbine speed, load, and protection functions.
• User Interface: Includes a user-friendly display for monitoring operational parameters.
• Flexibility: Compatible with a wide range of turbines, engines, and generators.
• Communication: Supports various industrial communication protocols, including Modbus and others for integration with SCADA or DCS systems.
• Comprehensive Protection: Includes various protection functions for over-speed, under-speed, over-current, and over-temperature conditions.
• Load Sharing: Supports load sharing with other generators in a multi-generator configuration.

Product Parameters & Specifications:

• Power Supply: Typically 24 VDC or 48 VDC, depending on the configuration.
• Input/Output: Digital and analog inputs/outputs for engine speed, load, and temperature monitoring.
• Communication Protocols: Supports Modbus RTU, Modbus TCP, and other common industrial communication protocols for integration with SCADA/DCS systems.
• Display: LCD display for system diagnostics, parameter settings, and operational monitoring.
• Control Logic: Microprocessor-based, highly programmable control logic for flexibility.
• Environmental Conditions:
  • Operating Temperature: -20°C to 70°C (-4°F to 158°F)
  • Storage Temperature: -40°C to 85°C (-40°F to 185°F)
  • Humidity: 5% to 95% (non-condensing)
• Enclosure: Designed to fit within standard 19-inch rackmount configurations or wall-mount enclosures.
