Description

Product Name:

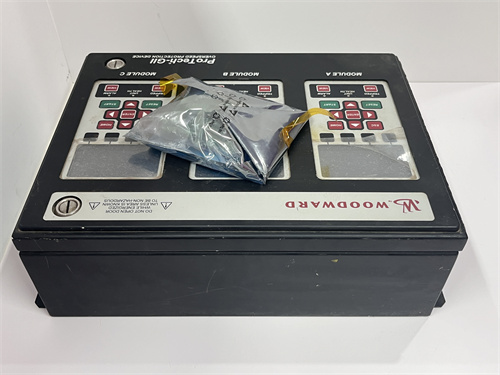

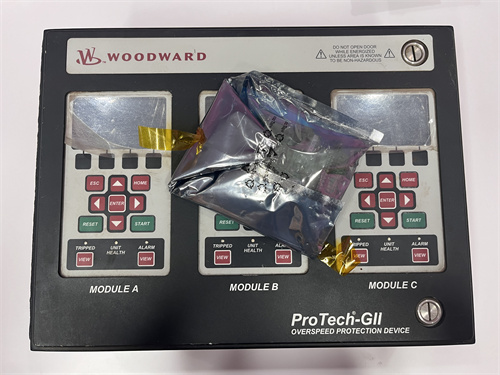

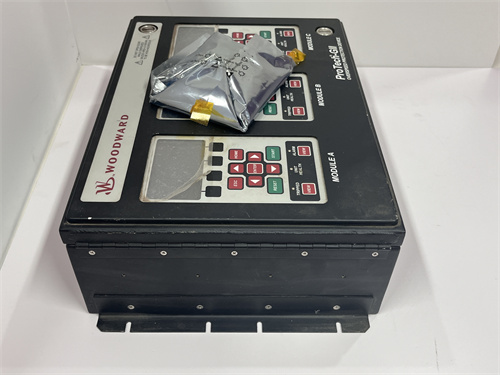

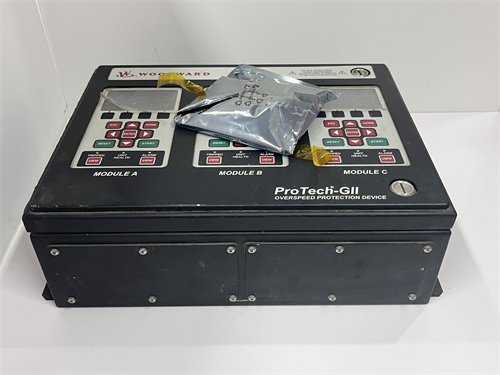

WOODWARD 8237-1246 Controller

Product Description:

The WOODWARD 8237-1246 is a digital controller designed for use in industrial control systems, typically in applications such as gas turbines, steam turbines, and other industrial machinery. This controller is part of WOODWARD’s family of sophisticated control products that enable efficient, safe, and reliable operation of power generation and other industrial equipment. The WOODWARD 8237-1246 features advanced control algorithms, real-time data processing, and communication capabilities for integration into various automation and monitoring systems.

Product Parameters:

• Model Number: WOODWARD 8237-1246
• Controller Type: Digital controller
• Power Supply: Typically 24 VDC or 110-240 VAC (depending on configuration)
• Input Types: Analog (voltage or current), digital inputs, speed pickups, temperature sensors, etc.
• Output Types: Analog outputs, relay contacts, digital outputs, communication interfaces (Modbus, CANbus, etc.)
• Communication Ports: Ethernet, RS-485, Modbus RTU/TCP, CANbus
• Display Type: LED or LCD interface (if applicable)
• Enclosure Type: Designed for industrial environments with protection against dust, moisture, and vibration (IP rating varies by model).
• Operating Temperature Range: Typically from -10°C to +60°C (depending on specific model/conditions)
• Mounting: DIN rail mount or panel mount
• Response Time: Typically in the range of milliseconds to seconds, depending on configuration and application
• Redundancy: Some configurations support system redundancy for increased reliability

Product Specifications:

1. Control Features:
   • Adaptive algorithms for controlling complex systems
   • Configurable for a wide variety of industrial applications
   • Safety monitoring and diagnostic functions
   • Integrated protection functions like over-speed, overspeed, low oil pressure, etc.
2. I/O Options:
   • 4-20 mA analog inputs for sensors (e.g., temperature, pressure)
   • Digital inputs for events or switch status
   • Analog outputs for control signals
   • Relay outputs for alarms or control actions
3. User Interface:
   • Graphical display or touchscreen (depending on configuration)
   • Customizable interface for ease of operation
   • Diagnostic and maintenance tools for troubleshooting and system monitoring
4. Communication:
   • Supports Modbus RTU/TCP, CANbus, and Ethernet-based communication
   • Real-time data logging and remote monitoring
   • Connectivity to supervisory control and data acquisition (SCADA) systems
   • Integration with other WOODWARD systems for complex control schemes
5. Power Supply:
   • Wide input voltage range to accommodate industrial settings
   • Low power consumption when idle
6. Environmental Protection:
   • Designed to operate in harsh industrial environments
   • Protected against moisture, dust, and vibration (IP-rated enclosures)
7. Safety and Redundancy:
   • Fault detection and alarm systems to prevent damage to equipment
   • Configurable fail-safe modes for critical systems

Product Use:

The WOODWARD 8237-1246 controller is widely used in various industries, particularly in:

• Power Generation: Managing the operation of turbines, generators, and other equipment in power plants.
• Oil & Gas: Control and monitoring of engines, turbines, and compressors in oil and gas fields or refineries.
• Industrial Automation: Used to control manufacturing processes, including material handling systems, robotics, and automated machines.
• Marine Applications: Managing the propulsion and power systems in ships or offshore platforms.
• HVAC Systems: Control of large-scale heating, ventilation, and air conditioning units in commercial and industrial buildings.
• Renewable Energy: In wind and solar power systems, the controller ensures the safe and efficient operation of turbines and other related equipment.

This controller is a crucial part of advanced control systems that require high reliability, real-time data processing, and precise control of mechanical and electrical equipment in demanding industrial environments.
