WOODWARD+8237-1244

Description

The WOODWARD+8237-1244 Controller appears to be a specific product used in industrial control systems, often within energy, power generation, or mechanical applications.

Product Name

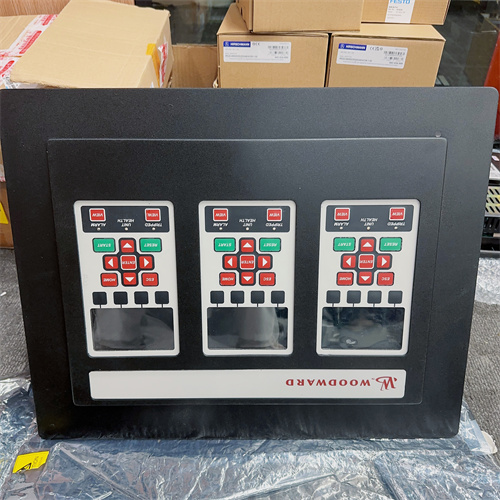

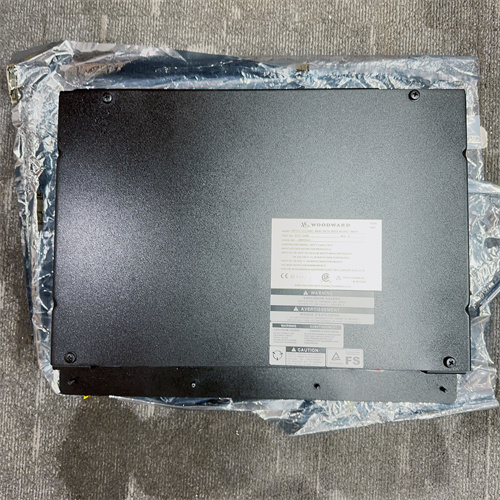

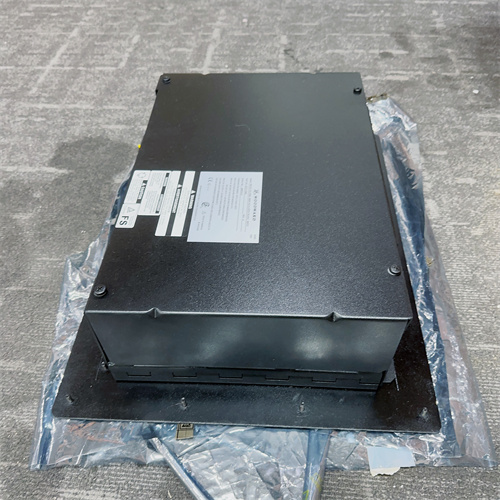

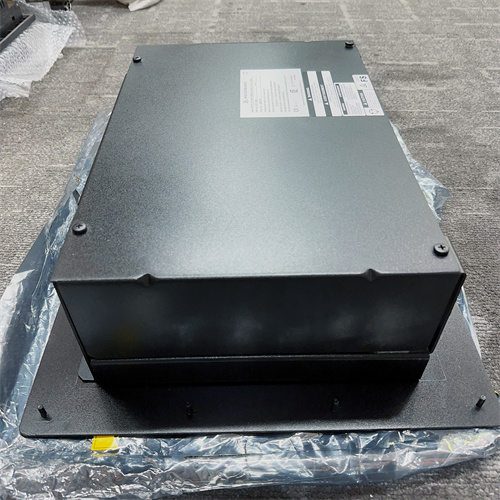

WOODWARD 8237-1244 Controller

Product Description

The Woodward 8237-1244 is a programmable controller designed to manage and optimize engine, turbine, or generator operations in industrial applications. It offers high precision and reliability for automatic control of power generation systems, including synchronization, load sharing, protection, and more. The controller is designed to interface with various sensor inputs and manage the system’s operational parameters.

This controller typically features robust communication capabilities, flexible configuration options, and advanced diagnostics. It can be used in critical applications such as power plants, oil and gas platforms, and other industries where engine or generator performance needs to be continuously monitored and optimized.

Product Parameters & Specifications

• Power Supply: Typically 12V or 24V DC, depending on configuration.
• Operating Temperature Range: -40°C to +85°C, for industrial-grade reliability in harsh environments.
• Inputs/Outputs:
  • Multiple digital inputs for sensors (speed, temperature, pressure, etc.).
  • Analog inputs for voltage, current, or other system parameters.
  • Digital outputs for controlling actuators or alarms.
  • Communication ports (e.g., CAN, Modbus, Ethernet) for system integration.
• Communication Protocols: Modbus RTU/TCP, CANopen, and sometimes custom protocols for specific industrial applications.
• Control Capabilities:
  • Engine start/stop control.
  • Load sharing and synchronization control (for multi-engine/generator setups).
  • Protection functions such as overspeed, underfrequency, or overcurrent.
  • Remote monitoring and diagnostics.
• User Interface: Typically features a built-in display or can be connected to a remote HMI for user interaction.
• Certifications: CE, UL, or other industry-specific certifications, ensuring the controller complies with global standards.

Product Use

The Woodward 8237-1244 controller is used primarily in applications where precise engine, generator, or turbine control is required. Its common uses include:

• Power Generation: Managing generators in standalone or multi-unit configurations, ensuring they run efficiently and in sync with grid requirements.
• Industrial Engines: Used to control and protect engines in industrial settings, such as oil & gas, marine, or manufacturing plants.
• Turbine Control: Can be used to manage steam, gas, or hydro turbines, including startup/shutdown sequences and operational limits.
• Backup Power Systems: Ensuring automatic transfer switches (ATS) function properly in backup power configurations, providing reliable energy when needed.

Key Features

• Programmable Logic: Allows users to customize control logic to fit specific operational requirements.
• Safety and Protection: Integrated safety features to protect both the machinery and operators.
• Advanced Diagnostics: Provides real-time monitoring and troubleshooting capabilities.
• Scalability: Suitable for both small and large installations, including complex multi-unit systems.
