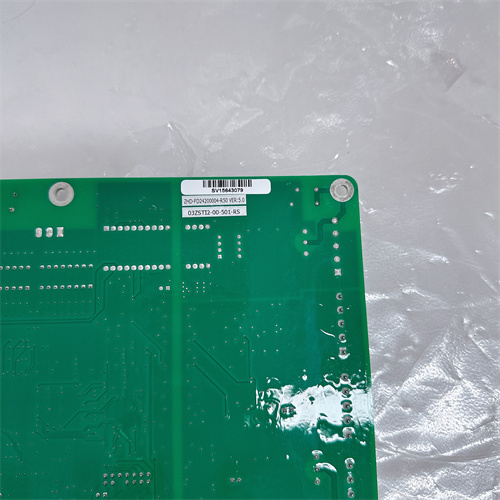

WINGREEN+03ZSTI2-00-501-RS

Description

The module is part of the ControlLogix family of programmable automation controllers.

Product Name:

WINGREEN+03ZSTI2-00-501-RS module

Product Description:

It is an industrial communication module designed to provide communication between ControlLogix plc and other devices over an Ethernet /IP network. It provides a reliable and high-speed communication interface for industrial automation.

Product parameters:

– Communication interface: Ethernet /IP
– Supported networks :ControlNet, EtherNet/IP
– Communication speed: 10/100 Mbit/s
– Maximum number of connections: 32 per adapter
– Operating temperature :0 ~ 60 degrees
– Input voltage: 5.1V DC
– Power consumption :800ma @ 5.1v DC

Technical requirements:

– Compact and durable design for industrial environments
– Dual-port network backup
– Supports linear and ring (DLR) topologies
– Built-in network troubleshooting diagnostics
– Compatible with ControlLogix controllers

Product use:

The module is used in a variety of industrial automation applications that require seamless communication between PLCS and other devices via Ethernet /IP networks. It is widely used in manufacturing, technology and other industrial environments to ensure the exchange, management and monitoring of data between the different components of an automated system.

WINGREEN+03ZSTI2-00-501-RS

Interface modules of the contact type sensor (position sensor) (4-channel \ multifunction, 4-channel \ 1-channel \ 2-channel \ option for detection of line damage, 1-channel), articles: mtl4510, mtl4510b, mtl4511, mtl4513, mtl4516, mtl4516, mtl4517, mtl4510, mtl5510b, mtl5511, mtl5513, mtl5516c, mtl5517; Solenoid/alarm modules (with line damage detection option), articles: mtl4521, mtl4523, mtl4523r, mtl4523l, mtl4524s, mtl4525, mtl4521, mtl5523, mtl5524, mtl5525; Power supply Repeaters (1-channel, 2-channel, 2-channel, 2-wire hart intelligent converters with 4-20ma output signal), articles: mtl4541, mtl4541b, mtl4541p, mtl4544, mtl4544s, mtl4544b, mtl5541, mtl5544;
