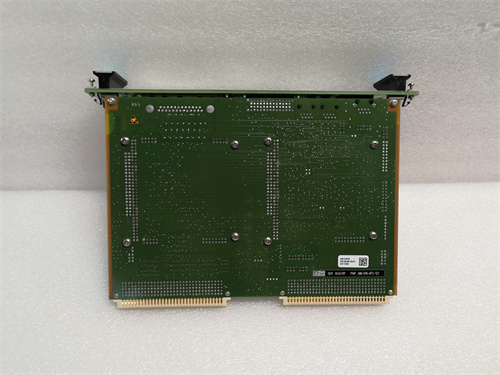

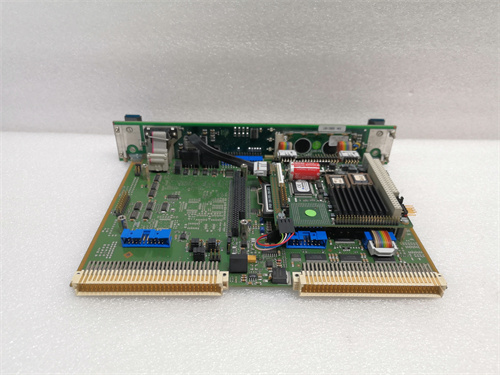

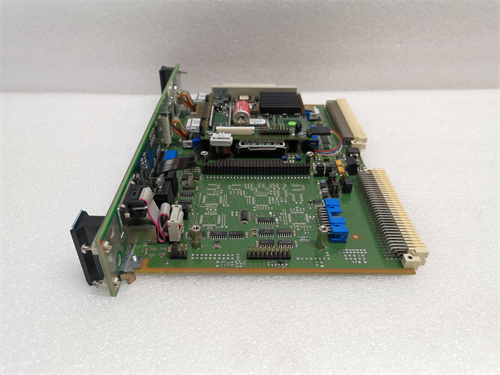

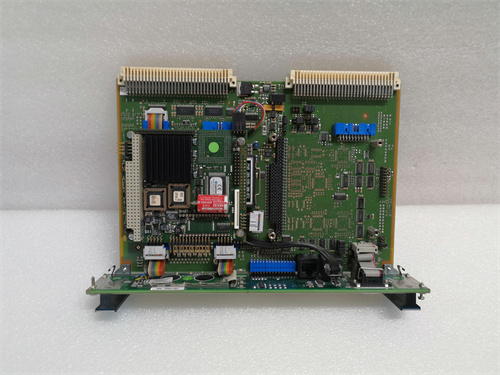

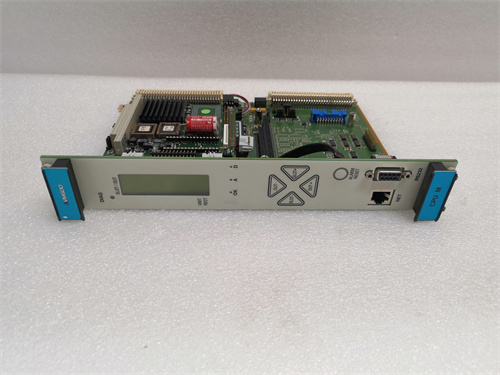

VIBRO-METER+VM600 CPUM 200-595-075-122

Description

Product Name:

VIBRO-METER+ VM600 CPUM 200-595-075-122

Product Description:

The VIBRO-METER+ VM600 CPUM 200-595-075-122 is a specialized monitoring and protection module used for vibration measurement and condition monitoring in industrial machinery, particularly in rotating equipment such as motors, turbines, and compressors. It is part of the broader VIBRO-METER VM600 series, which provides advanced vibration analysis capabilities, real-time diagnostics, and predictive maintenance solutions to help ensure operational efficiency and avoid unexpected equipment failures. The module is designed for high-performance machinery monitoring in sectors such as power generation, oil and gas, petrochemical, and manufacturing.

The module is engineered to provide real-time data acquisition and processing of vibration signals, detecting fault conditions, and enabling predictive maintenance by identifying potential issues before they lead to costly downtime.

Product Features:

• Advanced Vibration Monitoring: The module measures key vibration parameters, such as acceleration, velocity, displacement, and other dynamic signals.
• Real-time Data Acquisition: Provides continuous, real-time monitoring of machinery conditions.
• High Sensitivity & Accuracy: Capable of detecting even small changes in vibration levels, ensuring early fault detection.
• Integrated Protection: Capabilities for protecting critical rotating equipment against damage from excessive vibration.
• Flexible Integration: Easily integrates with other components of the VM600 system for comprehensive monitoring and reporting.
• Intuitive User Interface: Includes a user-friendly interface for configuration, diagnostics, and maintenance management.

Product Parameters and Specifications:

• Vibration Measurement Range:
  • Acceleration: 0.1 m/s² to 1000 m/s² (adjustable range)
  • Velocity: 0.1 mm/s to 1000 mm/s (adjustable range)
  • Displacement: 0.1 μm to 1000 μm (adjustable range)
• Input Signal Type:
  • Proximity probes, accelerometers, velocity transducers, and other vibration sensors.
  • Compatible with a wide range of vibration sensors (e.g., piezoelectric sensors, inductive sensors).
• Signal Conditioning:
  • Includes built-in filtering, amplification, and signal processing for vibration measurements.
• Communication Protocols:
  • Compatible with Modbus, Ethernet, PROFIBUS, and CANopen for easy integration with SCADA systems and industrial control networks.
  • Analog Output Options (for interfacing with PLC systems).
• Power Supply:
  • Typical Voltage: 24V DC
  • Power Consumption: Typically less than 5W
• Environmental Conditions:
  • Operating Temperature Range: -20°C to 60°C
  • Humidity: 0 to 95% RH (non-condensing)
  • Enclosure Protection: IP20 or higher, depending on the configuration
• Dimensions:
  • Form Factor: 19” Rack Mount or DIN Rail Mount options
  • Weight: Typically 1-2 kg (depending on the configuration)
• Alarm & Protection:
  • Configurable alarm thresholds for vibration levels (velocity, displacement, acceleration)
  • Alarms can be configured for early fault detection, such as misalignment, unbalance, bearing defects, etc.

Product Use:

The VIBRO-METER+ VM600 CPUM 200-595-075-122 is used primarily for monitoring the health and performance of critical rotating machinery in industrial environments. Key uses include:

1. Condition Monitoring:
   • Regular measurement of vibration levels on machinery such as motors, compressors, turbines, and pumps.
   • Detection of abnormal vibration patterns indicating potential issues like misalignment, imbalance, bearing wear, or resonance.
2. Predictive Maintenance:
   • The module aids in predicting when equipment is likely to fail, enabling maintenance to be scheduled before a failure occurs, reducing downtime and extending equipment life.
3. Protective Shutdowns:
   • If excessive vibration is detected, the system can trigger automatic shutdowns or alerts to prevent damage to the machinery.
4. Performance Optimization:
   • Continuous monitoring ensures that machinery operates within optimal vibration parameters, improving overall performance and efficiency.
5. Data Integration & Reporting:
   • The module can be integrated into larger monitoring systems, providing detailed vibration analysis reports and alerts to maintenance teams and operations managers.
