Description

The Triconex 3805E module is part of the Triconex family of safety systems designed for critical control applications in industrial environments.

**Product Name:**

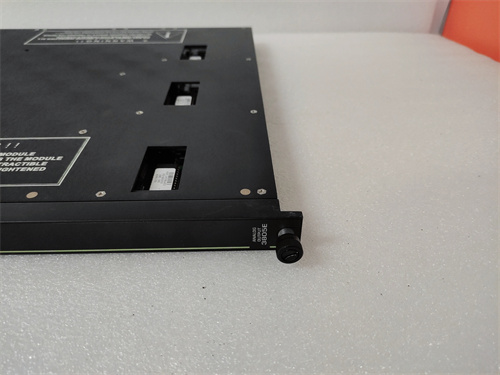

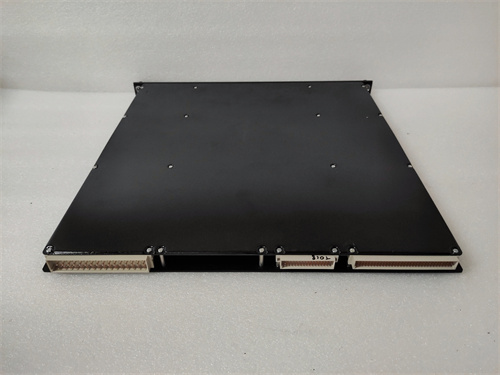

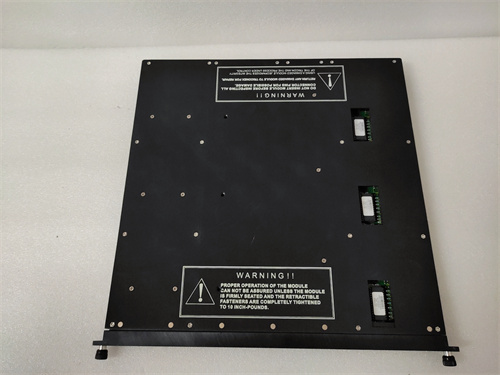

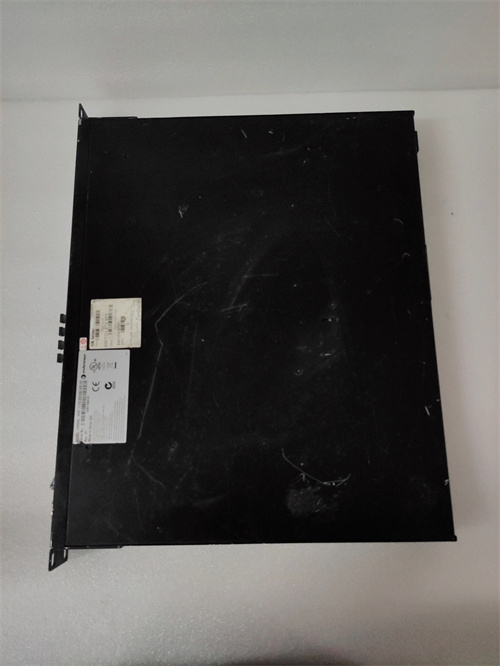

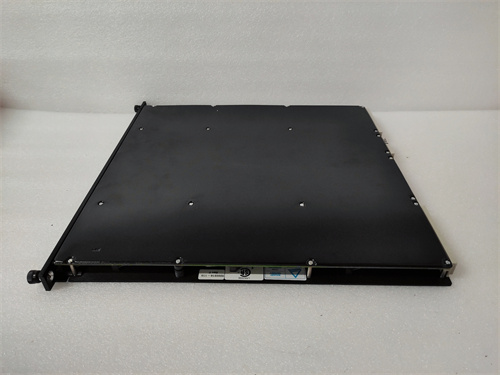

Triconex 3805E Digital Output Module

**Product Description:**

The Triconex 3805E is a digital output module designed to provide high-reliability switching capability for industrial control systems. It is part of the Triconex safety instrumented system (SIS) which ensures safe operation in hazardous environments by implementing stringent safety protocols.

**Product Parameters:**

– **Channels:** Typically 16 channels per module (configurable)
– **Outputs:** Digital outputs, typically relay or solid-state
– **Voltage Rating:** Typically supports 24V DC or 120V AC
– **Current Rating:** Depending on configuration, usually up to 2A per output
– **Temperature Range:** Designed to operate within -40°C to +70°C
– **Certifications:** SIL 2 or SIL 3 certified, depending on configuration

**Specifications:**

– **Safety:** Designed to meet IEC 61508 standards for safety instrumented systems
– **Reliability:** High-reliability architecture with redundancy options
– **Communication:** Interfaces with Triconex safety controllers via a dedicated communication protocol
– **Mounting:** DIN rail mountable for easy installation in control panels
– **Enclosure:** Typically housed in a ruggedized enclosure for protection against industrial environments

**Product Use:**

The Triconex 3805E module is used primarily in safety-critical applications where reliable digital output switching is essential. Typical applications include:

– Emergency shutdown systems (ESD)
– Fire and gas detection systems
– Turbomachinery control
– Process shutdown
– Any application requiring fail-safe operation in hazardous environments

**Key Features:**

– High-density digital output channels
– Designed for use in SIL 2 and SIL 3 safety applications
– Robust construction suitable for harsh industrial environments
– Configurable output types (relay or solid-state)
– Seamless integration with Triconex safety controllers

This module ensures that critical industrial processes can be safely controlled and monitored, adhering to the strict safety standards required in industries such as oil and gas, chemical processing, power generation, and others where safety is paramount.
