Description

The TRICONEX 3700A module is part of the Triconex safety and control systems, primarily used for industrial process control, safety instrumented systems (SIS), and emergency shutdown (ESD) applications.

Product Name:

TRICONEX 3700A

Product Description:

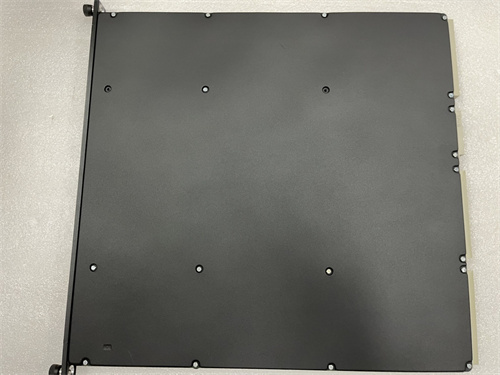

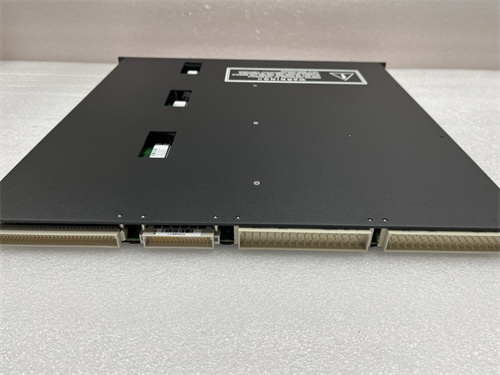

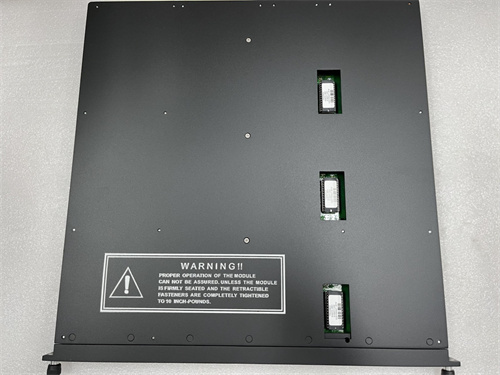

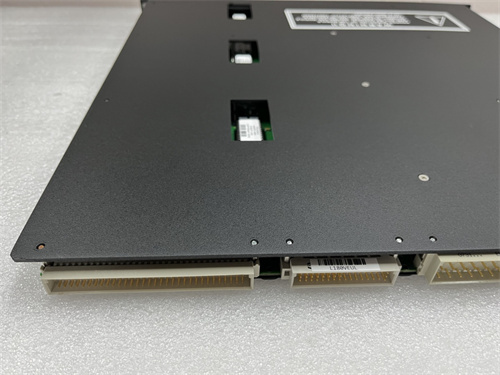

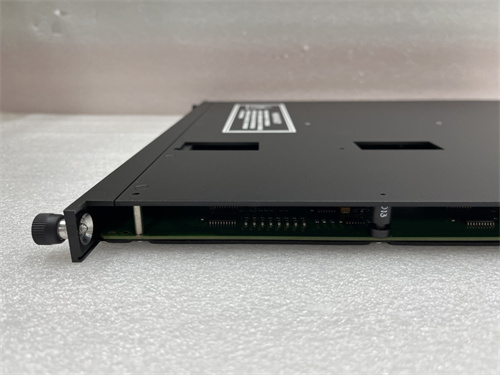

The TRICONEX 3700A is a high-performance I/O (input/output) module for Triconex safety systems. It is designed to interface with field devices in critical industrial applications, offering high reliability and fault tolerance. The 3700A is typically used in systems that require a combination of process control and safety functions, such as oil and gas facilities, chemical plants, power plants, and other process industries.

This module is built to work with the Tricon™ safety system, which is a triple-redundant system that ensures operational safety even in the case of hardware failures.

Product Parameters and Specifications:

• Model Number: TRICONEX 3700A
• Type: Input/Output (I/O) Module
• I/O Type: Digital and Analog (specific configuration can depend on module variant)
• Redundancy: Triple-redundant architecture to enhance system reliability
• Operating Voltage: Typically operates on a 24 V DC system
• Input Channels: Up to 32 digital inputs and 16 digital outputs, depending on configuration
• Output Channels: Digital (potentially with relay contacts, depending on configuration)
• Communication: Communication with Triconex processors over a proprietary communication bus
• Certification: The 3700A module is certified for use in safety applications, with compliance to major standards such as IEC 61508, IEC 61511, and others relevant to functional safety.

Features:

• High Availability: The triple-redundant configuration ensures fault tolerance and system availability, making it suitable for critical safety functions.
• Fail-Safe Operation: Designed to fail safely in the event of module malfunction, preventing unsafe conditions.
• Wide Range of I/O Options: Configurable to handle different types of field signals such as digital, analog, and in some cases, temperature signals.
• Enhanced Diagnostics: Provides advanced diagnostic and monitoring capabilities to ensure quick detection of faults.
• Modular Design: Allows for flexible configuration of I/O points, making it scalable for different system sizes.
• Integration: Can be integrated into Triconex’s wider family of safety systems for applications like emergency shutdown (ESD), fire and gas detection, and process monitoring.

Product Use:

The TRICONEX 3700A module is primarily used in:

• Safety Instrumented Systems (SIS): Used to monitor and control safety-critical processes, ensuring that the system can automatically respond to unsafe conditions.
• Emergency Shutdown Systems (ESD): Used for detecting dangerous conditions and shutting down equipment or processes to prevent hazardous incidents.
• Process Control Systems: It can be used to integrate safety and control functions in the same system, providing higher efficiency while maintaining safety.
• Critical Applications in Industries: Typically used in industries such as oil and gas, petrochemicals, chemicals, power generation, and other sectors where safety and reliability are paramount.
