TRICONEX+3503E

Description

The TRICONEX 3503E module is a safety-rated digital output module designed for use in safety instrumented systems.

Product Name:

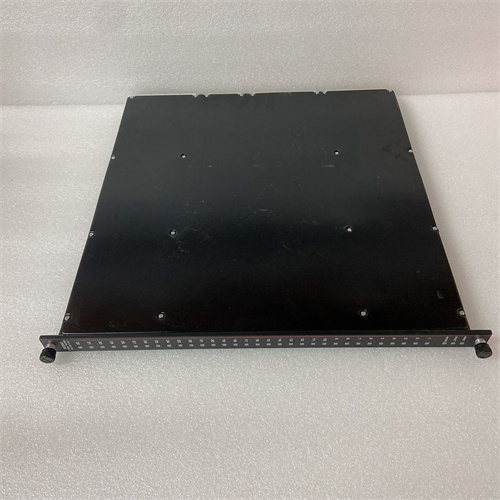

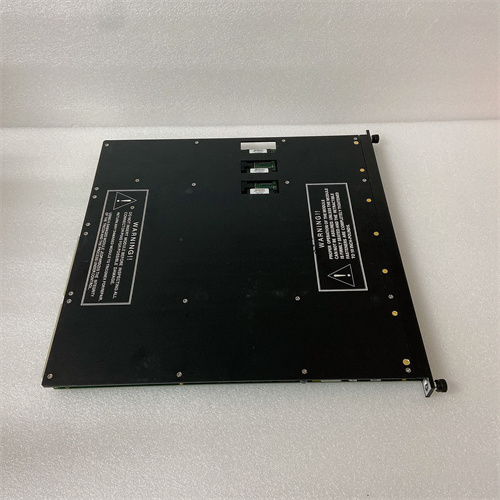

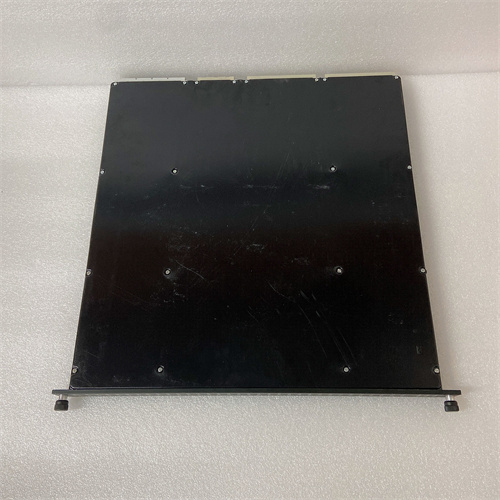

TRICONEX 3503E Digital Output Module

Product Description:

The TRICONEX 3503E module provides 16 digital output channels that can be used to control external devices in safety-critical applications. It is designed to meet stringent safety standards and ensure reliable operation in hazardous environments.

Product Parameters:

– Number of Channels: 16
– Input Voltage Range: 10-30VDC
– Output Type: Solid-state relay
– Safety Integrity Level (SIL): SIL 2 certified

Specifications:

– Operating Temperature: -40°C to +70°C
– Storage Temperature: -40°C to +85°C
– Relative Humidity: 0% to 95% non-condensing
– Dimensions: 4.96 x 2.52 x 5.06
– Weight: 0.5 lb

Product Use:

The TRICONEX 3503E module is typically used in safety instrumented systems in industries such as oil and gas, petrochemical, and power generation. It is used to interface with external devices such as valves, motors, and alarms to ensure safe and reliable operation of the system.
