Description

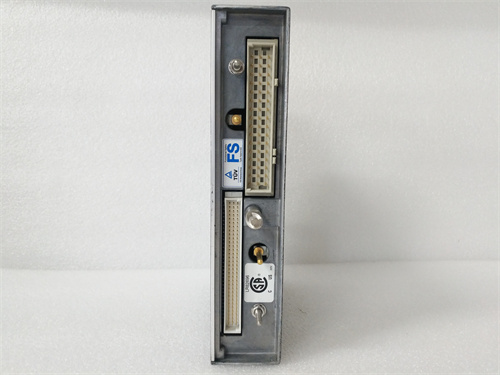

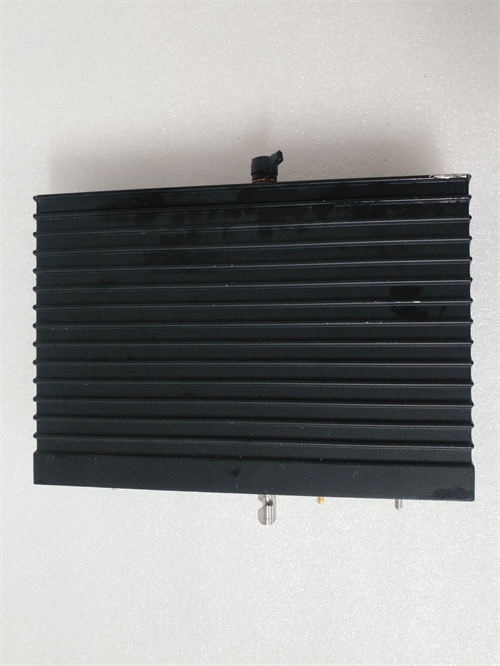

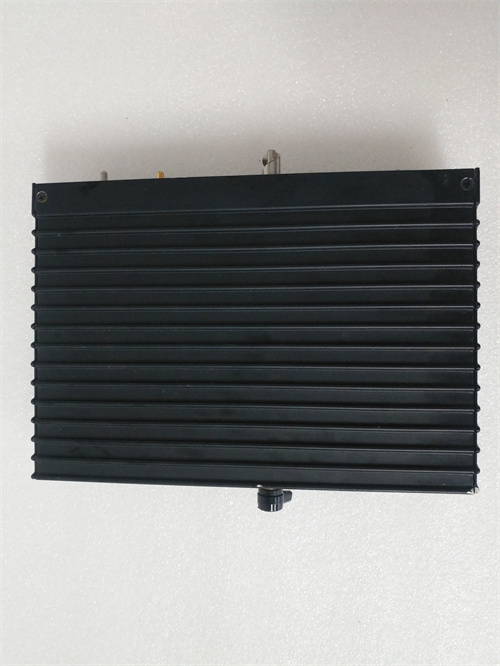

The TRICONEX 3381 module is part of the Triconex Safety System, which is widely used in industrial environments for safety and control applications.

### Product Name

TRICONEX 3381 Safety I/O Module

### Product Description

The TRICONEX 3381 module is a safety input/output (I/O) module designed for use in Triconex Safety Systems. It provides a range of digital input and output functionalities to interface with various field devices. The module is part of the Triconex system, known for its high reliability and safety standards in critical applications.

### Product Parameters and Specifications

– **Type:** Digital Input/Output Module
– **Compatibility:** Designed for use with Triconex Tricon systems

**Inputs:**

– **Number of Inputs:** Typically 16 digital inputs
– **Input Voltage Range:** 24V DC (standard, but can vary)
– **Input Type:** Sinking or sourcing (depending on configuration)
– **Input Frequency:** Varies based on application and configuration

**Outputs:**

– **Number of Outputs:** Typically 16 digital outputs
– **Output Voltage Range:** 24V DC (standard, but can vary)
– **Output Type:** Relay or transistor outputs (depending on model)
– **Output Current:** Typically up to 0.5A per output

**Communication:**

– **Bus Communication:** Connected to the Tricon system via a dedicated communication bus
– **Protocol:** Uses proprietary Triconex protocols for communication

**Power Supply:**

– **Operating Voltage:** Usually 24V DC for the module itself
– **Power Consumption:** Varies depending on configuration and usage

**Isolation:**

– **Electrical Isolation:** Typically features isolation between input/output channels and the system bus to protect against electrical faults

**Environmental Ratings:**

– **Temperature Range:** Typically from 0°C to 60°C (32°F to 140°F)
– **Humidity Range:** Usually up to 95% non-condensing
– **Enclosure Rating:** Designed for use in industrial environments; specifics may depend on the installation
– **Certification:** Often certified to various safety standards (e.g., IEC 61508) depending on the specific module and application requirements

### Product Use

The TRICONEX 3381 module is used in safety-critical applications where reliable and redundant input/output processing is essential. Common applications include:

– **Process Safety:** In chemical, oil & gas, and pharmaceutical industries to monitor and control critical processes.
– **Control Systems:** For controlling and monitoring industrial equipment and processes.
– **Emergency Shutdown Systems:** In systems requiring immediate response to unsafe conditions.

The module integrates with the Triconex system to provide real-time monitoring and control, ensuring high availability and safety in automated industrial processes. It is used in conjunction with other Triconex modules and systems to form a comprehensive safety and control solution.
