TRICONEX+3351

Description

Product Name:

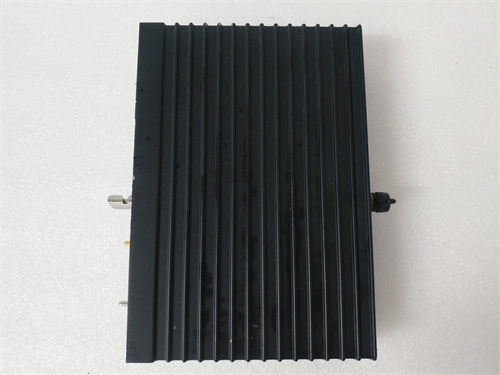

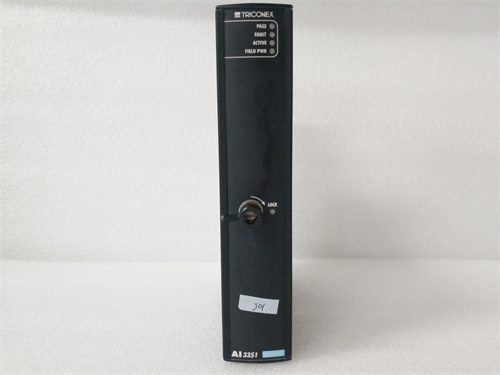

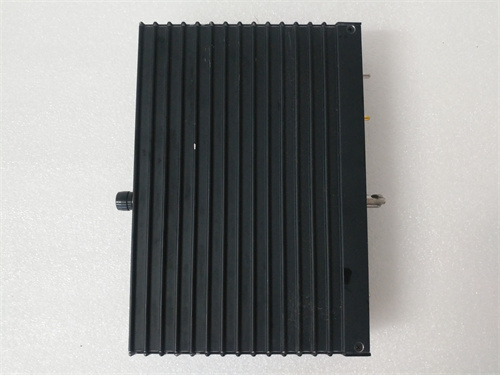

TRICONEX 3351 Module

Product Description:

The TRICONEX 3351 is a high-performance, dual-redundant analog input module designed for use in safety-critical applications. It is part of the TRICONEX family of safety systems, known for their reliability and robustness in protecting industrial processes.

Product Parameters:

– Number of Channels: 16 analog input channels
– Input Type: Voltage or Current
– Input Range: Configurable for different voltage or current ranges
– Resolution: 16 bits
– Accuracy: ±0.1% of full-scale range
– Response Time: 1ms

Specifications:

– Operating Temperature: -20°C to +70°C
– Storage Temperature: -40°C to +85°C
– Input Voltage: 24Vdc
– Power Consumption: 1.5 Watts per channel
– Communication Protocol: Modbus TCP/IP
– Safety Integrity Level (SIL): SIL 3 certified

Product Use:

The TRICONEX 3351 module is typically used in safety instrumented systems (SIS) to monitor and measure analog signals from various sensors and transmitters in critical industrial processes. It provides high-speed, accurate data acquisition and is essential for ensuring the safe operation of the process plant.
