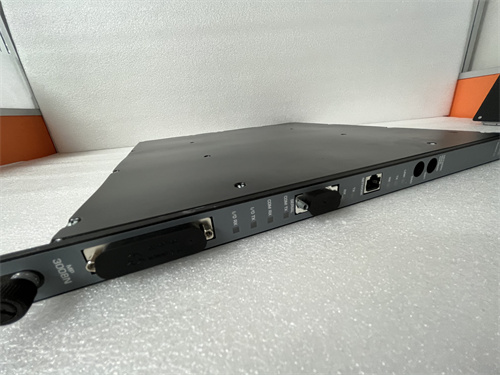

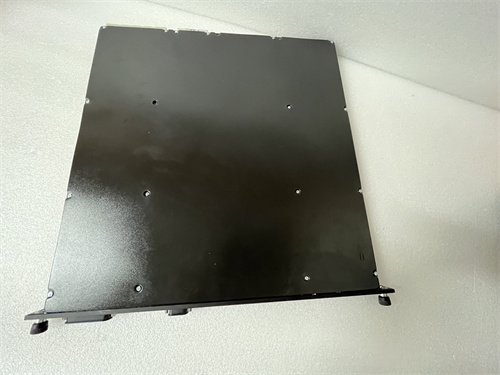

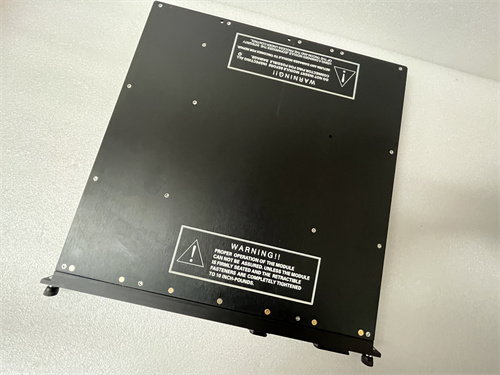

TRICONEX+3008 3009 3006 3002 3005

Description

The TRICONEX 3008, 3009, 3006, 3002, and 3005 modules are part of the Triconex safety and control system, widely used in industrial automation, process control, and safety-critical applications.

TRICONEX 3008 Module

Product Name: TRICONEX 3008
Product Description:
The TRICONEX 3008 is a high-functionality I/O module designed for analog input applications in safety instrumented systems.

Product Parameters:

• Type: Analog Input Module
• Channels: Typically supports multiple input channels (e.g., 8 channels)
• Input Range: Designed for various sensor inputs

Specifications:

• Input Signal Type: Various (current, voltage)
• Resolution: High resolution for accurate measurements
• Isolation: Galvanic isolation to protect against system faults

Product Use: Used in applications requiring real-time monitoring and control of analog signals, such as temperature, pressure, and flow in process industries.

TRICONEX 3009 Module

Product Name: TRICONEX 3009
Product Description:
The TRICONEX 3009 module is designed for digital input applications, typically used for monitoring on/off devices.

Product Parameters:

• Type: Digital Input Module
• Channels: Usually supports up to 32 channels

Specifications:

• Input Type: Dry contact, wet contact
• Voltage Compatibility: Multiple voltage levels supported
• LED Indicators: For status monitoring

Product Use: Essential for integrating and monitoring safety devices such as emergency stop buttons, limit switches, and other on/off controls.

TRICONEX 3006 Module

Product Name: TRICONEX 3006
Product Description:
The TRICONEX 3006 module serves as a digital output module for controlling various actuators and devices.

Product Parameters:

• Type: Digital Output Module
• Channels: Typically supports 16 to 32 output channels

Specifications:

• Output Type: Relay and transistor outputs
• Load Capacity: Rated for specific voltage and current loads
• Fail-safe operation: Designed for safety-critical applications

Product Use: Used to drive on/off devices like valves, motors, and alarms in safety and control systems in industrial environments.

TRICONEX 3002 Module

Product Name: TRICONEX 3002
Product Description:
The TRICONEX 3002 module is an essential component designed for high-speed processing and communication in safety systems.

Product Parameters:

• Type: Processor/Controller Module
• Redundancy: Typically features fault-tolerant capabilities

Specifications:

• CPU Type: High-performance processor
• Memory: Significant onboard and expandable memory options
• Communication: Multiple protocols supported for interoperability

Product Use: Acts as the brains of the Tricon safety system, executing control logic, running safety applications, and ensuring system integrity.

TRICONEX 3005 Module

Product Name: TRICONEX 3005
Product Description:
The TRICONEX 3005 module is used for serial communication, ensuring integration of various system components.

Product Parameters:

• Type: Communication Module
• Protocols: Supports multiple industrial communication protocols

Specifications:

• Ports: Typically includes multiple serial ports for device connectivity
• Data Rate: Configurable data rates to suit application needs
• Diagnostic Features: Built-in diagnostic capabilities for troubleshooting

Product Use: Facilitates communication between the Tricon system and other automation equipment or systems, enhancing overall system reliability and efficiency.
