TRICONEX+2101

Description

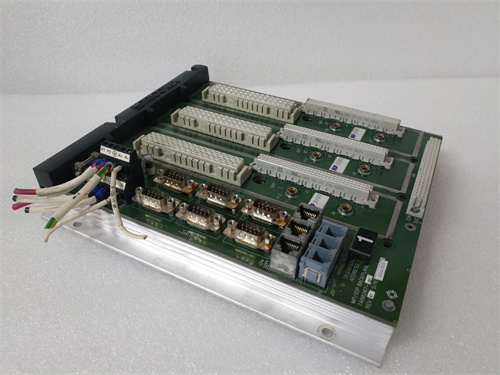

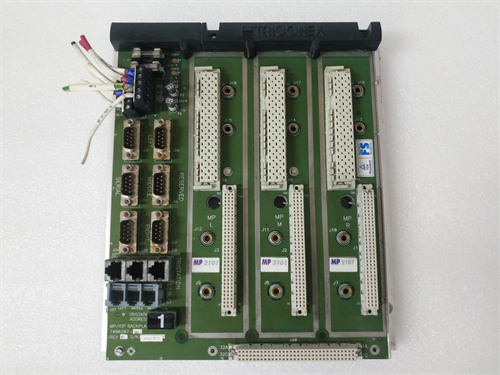

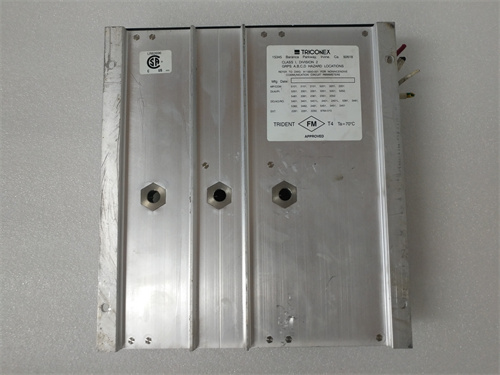

The TRICONEX+2101 module is a part of the TRICONEX safety system by Schneider Electric.

Product Name

TRICONEX+2101

Product Description

The TRICONEX+2101 is a high-reliability input/output module designed for use in critical process control and safety applications. It integrates seamlessly with the TRICONEX safety system, offering robust performance in industrial environments where safety and reliability are paramount.

Product Parameters and Specifications

• Type: Digital Input/Output Module
• Compatibility: TRICONEX Safety System
• Input Channels:
  • Number of Channels: Typically 8
  • Input Type: Digital (Discrete)
  • Voltage Range: 24 V DC
  • Input Current: 5-10 mA (typical)
  • Input Configuration: Sink or Source
• Output Channels:
  • Number of Channels: Typically 8
  • Output Type: Digital (Discrete)
  • Voltage Range: 24 V DC
  • Output Current: 0.5 A (per channel)
  • Output Configuration: Sink or Source
• Communication: Uses TRICONEX system communication protocols for integration and data exchange.
• Power Requirements:
  • Operating Voltage: 24 V DC
  • Power Consumption: Varies based on module configuration
• Operating Temperature Range: Typically -20°C to 60°C (-4°F to 140°F)
• Environmental Protection: IP20 or equivalent, suitable for industrial environments
• Mounting Type: DIN Rail

Product Use

The TRICONEX+2101 module is used in safety-critical and high-availability systems for:

• Industrial Process Control: Managing and monitoring digital signals from field devices such as switches and sensors.
• Safety Systems: Ensuring safe operation by controlling emergency shutdowns or other safety functions.
• Process Automation: Integrating with other TRICONEX modules and controllers for comprehensive automation solutions.
