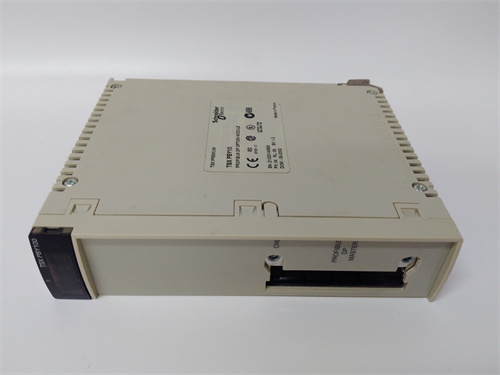

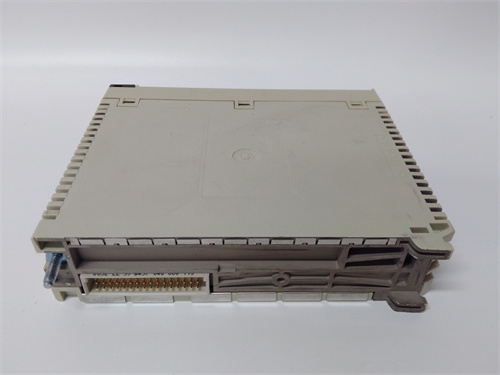

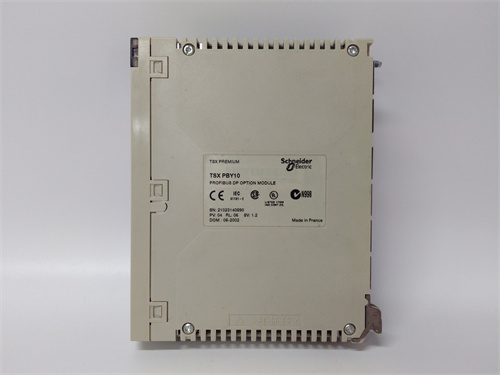

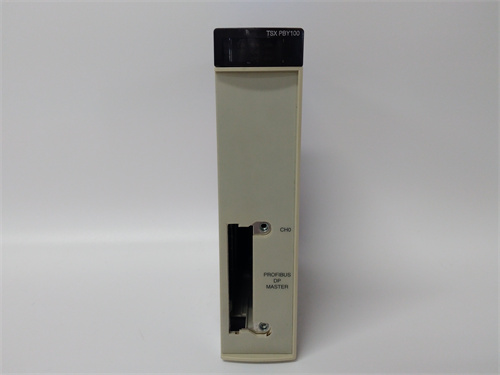

SCHNEIDER+TSXPBY100

Description

The Schneider Electric TSXPBY100 is part of the TSX series of programmable controllers designed for various automation applications.

Product Name:

Schneider Electric TSXPBY100

Product Description:

The TSXPBY100 is an I/O module that is compatible with the Modicon TSX series programmable logic controllers (PLCs). This module adds specific input/output capabilities to a PLC system, facilitating the connection and control of various field devices in automation applications.

Product Parameters and Specifications:

1. Type:
   • Input/Output expansion module for Modicon PLCs.
2. Connectivity:
   • Compatible with the TSX Quantum and TSX Premium series controllers.
3. I/O Configuration:
   • Typically supports a mix of digital and analog inputs/outputs.
4. Power Supply:
   • Designed to operate under specific voltage and current standards within the TSX systems.
5. Environmental Conditions:
   • Operating temperature range: Typically between 0°C to 60°C (32°F to 140°F).
   • Storage temperature range: Generally extends from -40°C to 85°C.
6. Dimensions and Weight:
   • Specific dimensions and weight may vary based on the exact configuration and packaging.
7. Communication Protocol:
   • Uses standard communication protocols that enable integration with the broader Modicon ecosystem.

Product Use:

The TSXPBY100 module is primarily used in industrial automation systems. Its applications include but are not limited to:

• Process Control: Connecting sensors and actuators for monitoring and controlling industrial processes.
• Factory Automation: Integrating machine components and managing production lines.
• Building Automation: Managing HVAC systems, lighting, and other building management systems.
• Data Acquisition: Gathering data from various sources for analysis and decision-making.
