Description

Product Name:

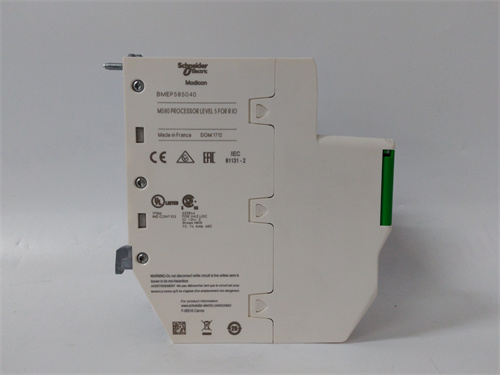

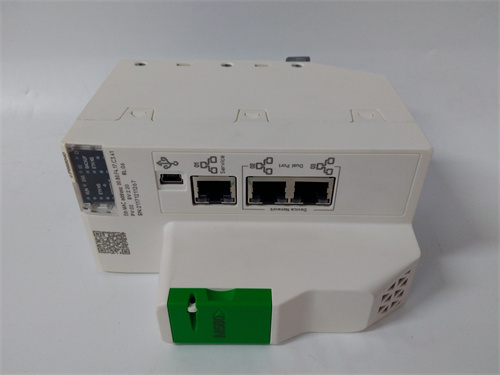

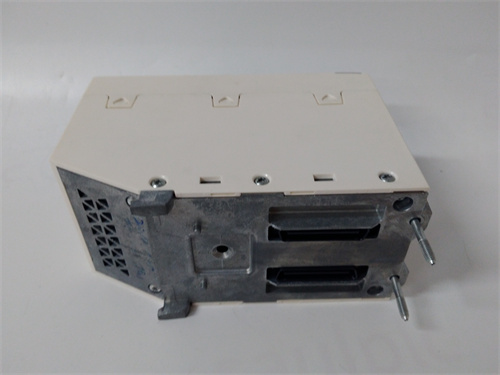

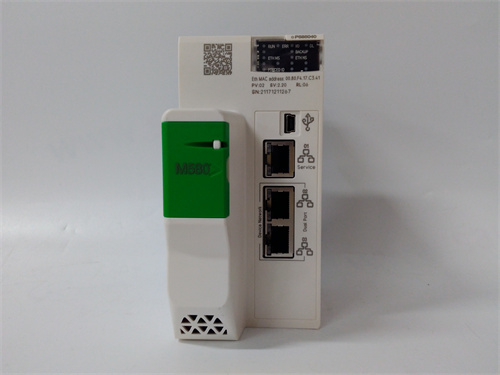

Schneider BMEP584040S

Product Description:

The BMEP584040S is an Ethernet communication module designed for the Modicon M580 programmable logic controller (PLC) system. It provides high-speed, reliable Ethernet communication for connecting Modicon M580 controllers to other network devices and systems. The module supports a range of industrial communication protocols, allowing for integration into complex automation environments.

This module is equipped with high-performance features suitable for large and complex industrial automation systems, ensuring that the Modicon M580 series can handle demanding process control and data exchange requirements.

Product Parameters & Specifications:

• Model: BMEP584040S
• Type: Ethernet Communication Module
• For Use With: Modicon M580 PLC
• Communication Type: Ethernet (IEC 61158, Modbus TCP/IP, Ethernet/IP)
• Port Configuration:
  • 2 Ethernet ports (for dual Ethernet redundancy)
  • Standard 10/100/1000 Mbps Ethernet connectivity
  • Dual Ethernet Ports for Redundancy (provides higher system availability and fault tolerance)
• Protocol Support:
  • Modbus TCP/IP
  • EtherNet/IP
  • SNMP (Simple Network Management Protocol)
  • HTTP/HTTPS for web access
  • OPC UA (for cloud connectivity and industrial IoT)
• Redundancy and Reliability:
  • Provides advanced features for redundancy and failover to ensure continued communication in case of network issues.
  • Hot Standby and EtherChannel support for redundant configurations.
• Performance Features:
  • High-speed processing with minimal latency for critical applications.
  • Support for high bandwidth for real-time data exchange.
  • Advanced diagnostics for monitoring network health and performance.
• Power Supply:
  • Typically powered through the backplane of the M580 controller, requiring 24V DC.
• Mounting:
  • Designed to fit directly onto the Modicon M580 backplane.
• Operating Temperature Range:
  • Typically 0°C to 60°C (32°F to 140°F), depending on the environment.
• Certifications:
  • UL listed
  • CE marked
  • RoHS compliant (Restriction of Hazardous Substances)

Product Use:

The BMEP584040S Ethernet module is used primarily for communication in industrial automation environments, where there is a need for:

• High-speed, reliable communication between controllers, HMIs, and SCADA systems.
• Interfacing with various field devices over Ethernet networks.
• Supporting complex automation systems with redundant configurations for enhanced uptime.
• Facilitating seamless integration into existing industrial Ethernet networks with Modbus TCP/IP or Ethernet/IP protocols.

It’s suitable for industries such as:

• Manufacturing (e.g., automotive, electronics, food & beverage)
• Oil & Gas
• Water Treatment and Utilities
• Energy Management Systems
• Chemical & Process Industries
