Description

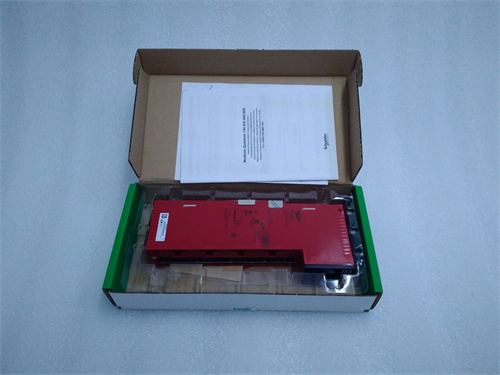

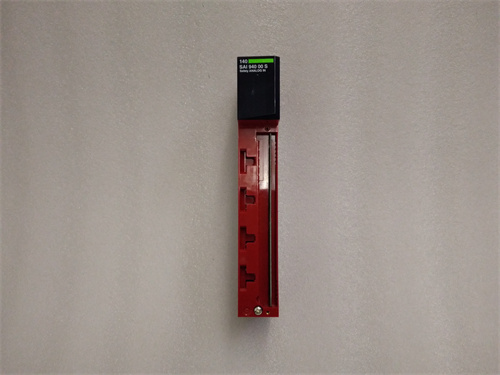

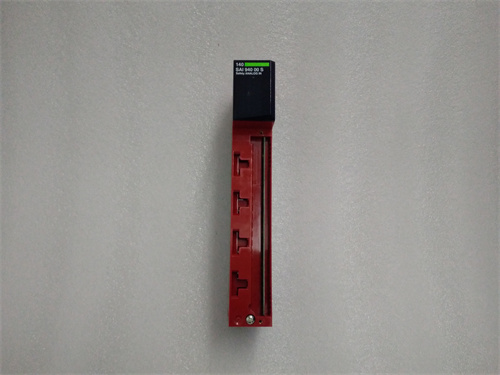

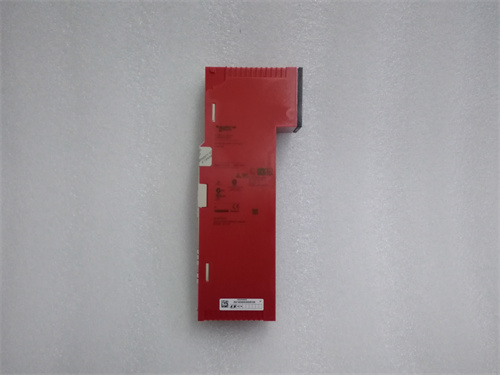

SCHNEIDER 140SAI94000S

Product Name: 140SAI94000S Analog Input Module

Product Description: The 140SAI94000S is an analog input module designed for use with Schneider Electric’s Modicon Quantum PLCs. This module is used to interface with analog signals in the range of 0-10V or 4-20mA. It converts these signals into digital values that can be processed by the PLC.

Product Parameters & Specifications:

• Number of channels: Typically 8
• Input Signal Types: 0-10V or 4-20mA
• Input range: 0-10V (voltage) / 4-20mA (current)
• Resolution: Usually 12 bits
• Update time: Depends on the configuration, often around 10 ms
• Power consumption: Refer to spec sheet
• Mounting: Rail-mounted in a control cabinet

Product Use: The 140SAI94000S module is used in various applications that require monitoring and control of analog signals from sensors or other devices. Typical applications include temperature control, pressure measurement, and flow monitoring in industrial processes.

SCHNEIDER 140SDO95300S

Product Name: 140SDO95300S Digital Output Module

Product Description: The 140SDO95300S is a digital output module for Schneider Electric’s Modicon Quantum PLCs. It is designed to control digital outputs such as on/off signals to actuators, relays, or other devices in an automation system.

Product Parameters & Specifications:

• Number of output channels: Usually 16
• Output Voltage: Typically 24 VDC
• Output type: Sourcing or sinking (check specific model)
• Current Rating: Each output can handle a specific current, generally around 2A
• Isolation: Generally designed to provide isolation between the PLC and the output devices
• Mounting: Din rail or panel-mounted

Product Use: This module is used extensively in controlling devices that require a simple on/off control such as motors, lamps, or solenoids in manufacturing and automation systems.

SCHNEIDER 140SDI95300S

Product Name: 140SDI95300S Digital Input Module

Product Description: The 140SDI95300S is a digital input module for Modicon Quantum PLCs, designed to read the status of digital sensors, switches, or other devices in an automation environment.

Product Parameters & Specifications:

• Number of input channels: Typically 16
• Input Voltage: Usually 24 VDC
• Input Type: Either dry contact or sourcing inputs
• Isolation: Features electrical isolation between inputs and PLC
• Response time: Varies based on model, usually in ms
• Mounting: Rail-mounted

Product Use: This module is used to interface with various digital sensors and switches, allowing the PLC to monitor conditions like limit switches, push buttons, and other binary status signals.
