Schneider+140CRA31200

Description

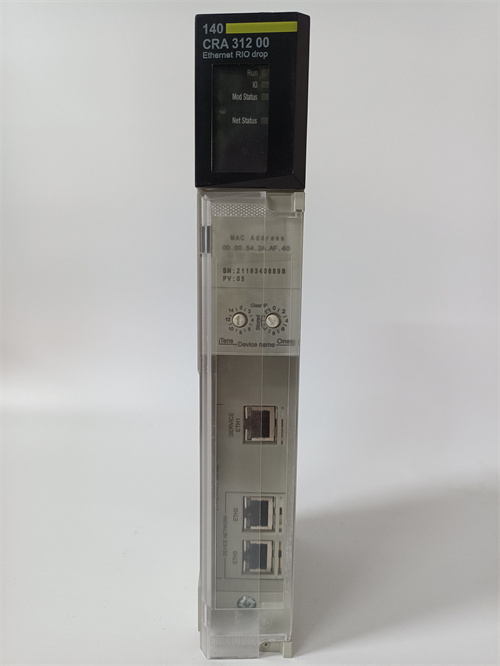

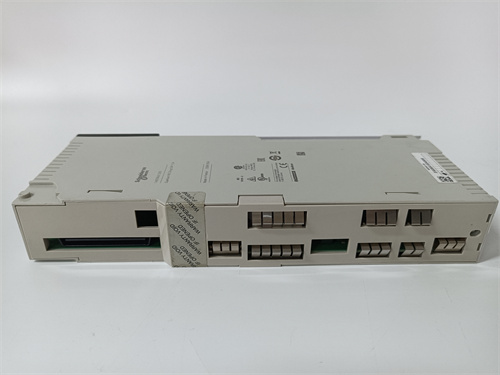

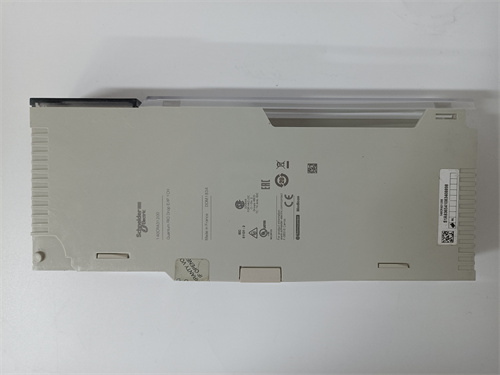

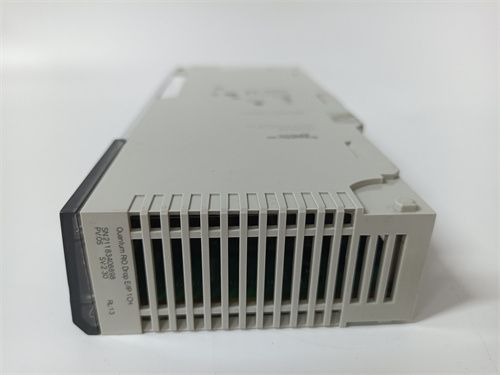

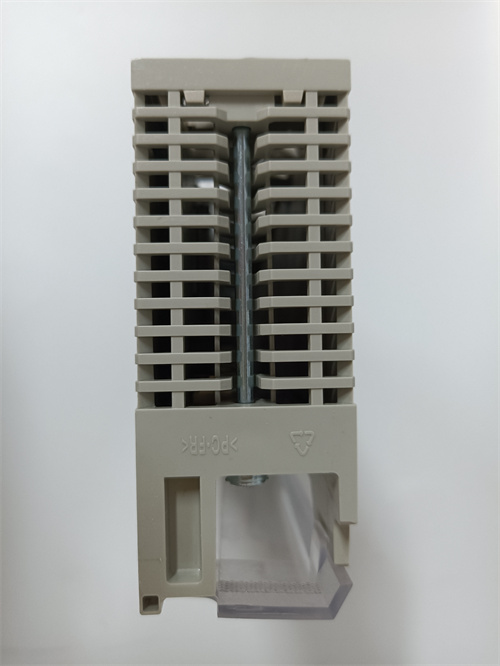

The Schneider Electric 140CRA31200 module is a part of the Modicon Quantum automation system and provides a solution for communication between the PLC and remote I/O drops.

Product Name:

Schneider Electric 140CRA31200 Quantum module

Product Description:

The 140CRA31200 module is an Ethernet communication adapter designed for the Modicon Quantum programmable logic controller (PLC). It allows for the connection of the PLC to the Quantum I/O drops over an Ethernet network.

Product Parameters:

– Communication Protocol: Ethernet/IP
– Supported Networks: Modicon Quantum
– Operating Temperature Range: 0°C to 60°C
– Storage Temperature Range: -40°C to 85°C
– Relative Humidity: 5% to 95% non-condensing

Specifications:

– Power Supply: 5 VDC, 850 mA
– Communication Ports: 1 Ethernet port
– LED Indicators: Power, Communication status, Modbus traffic
– Dimensions (H x W x D): 3.4 x 12.0 x 11.6 cm
– Weight: 0.22 kg

Product Use:

The 140CRA31200 module is used for establishing communication between the Modicon Quantum PLC and the remote I/O drops over an Ethernet/IP network. It enables the exchange of data between the PLC and the I/O drops, allowing for the control and monitoring of various industrial processes.
