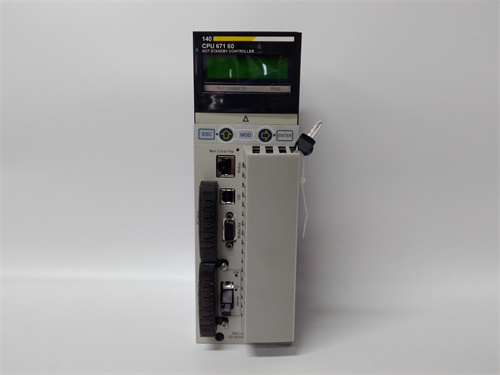

SCHNEIDER+140CPU67160

Description

The SCHNEIDER+140CPU67160 is part of Schneider Electric’s Modicon line of programmable logic controllers (PLCs). The 140CPU67160 is a modular PLC processor used in industrial automation and control systems.

Product Name:

Schneider Electric Modicon 140CPU67160
This is a Modicon M340 series PLC processor.

Product Description:

The 140CPU67160 is a powerful CPU module designed for use in modular control systems. It is part of Schneider Electric’s Modicon M340 PLC range, which is aimed at providing high-performance and flexible automation solutions for various industrial applications. This CPU offers a high degree of flexibility, with numerous I/O expansion options, and supports advanced control strategies for demanding applications.

The 140CPU67160 is equipped with a high-performance processor, supports Ethernet communication, and allows for easy integration with various industrial protocols and devices. This model is often used in medium to large-scale automation projects requiring a robust and scalable control platform.

Product Parameters and Specifications:

• Processor Type:
  • High-performance 32-bit RISC processor.
• Memory:
  • Program memory: 512 KB (with extension options available via external memory).
  • Retentive memory: 50 KB.
  • RAM: 512 KB.
• Communication Ports:
  • Ethernet Port for TCP/IP communication.
  • Modbus TCP and Modbus RTU protocols supported.
  • Optional Serial Ports (RS-232/RS-485) for communication with peripheral devices.
• Inputs/Outputs:
  • The module itself does not have direct I/O but can be connected to various I/O modules for digital or analog inputs and outputs.
  • Expansion Modules: Allows up to 8 extension racks or I/O modules for system expansion.
• Supported Software:
  • Unity Pro and SoMachine software for programming and configuration.
  • Supports IEC 61131-3 programming languages (Ladder Logic, Function Block Diagram, Structured Text, etc.).
• Operating Temperature Range:
  • 0°C to 55°C (32°F to 131°F).
• Power Supply:
  • Requires a separate power supply, which is typically 24V DC.
• Dimensions:
  • Height: 99 mm
  • Width: 90 mm
  • Depth: 75 mm
• Certification:
  • UL, CE, and other international certifications for safety and electromagnetic compatibility (EMC).

Product Use:

The SCHNEIDER+140CPU67160 module is typically used in industrial automation applications where reliability, flexibility, and high performance are required. Some common use cases include:

• Manufacturing Automation: Controlling machines, conveyors, and assembly lines in factories.
• Process Control Systems: Used in industries like chemical, water treatment, oil & gas, and energy.
• Building Automation: Managing HVAC systems, lighting, and security.
• Infrastructure Projects: Including power distribution, traffic management systems, and large-scale industrial systems.
