SCHNEIDER+140CPU65150 140CPU65260 140CPU43412 140CPU11303

Description

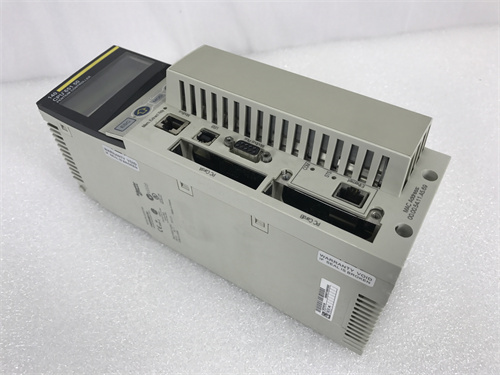

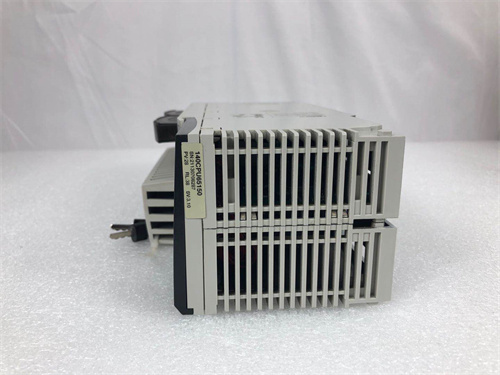

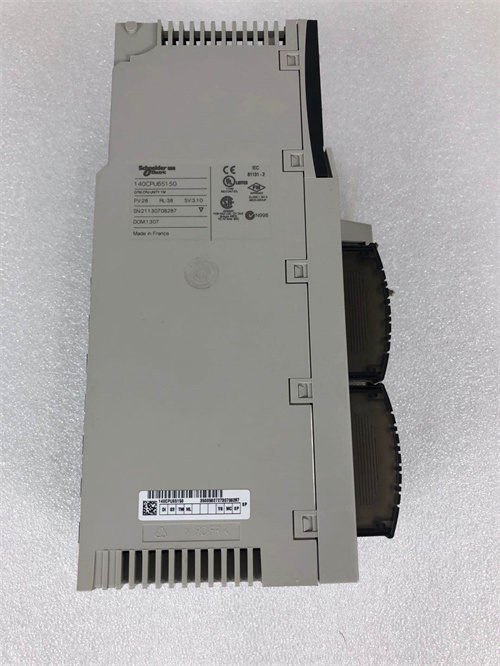

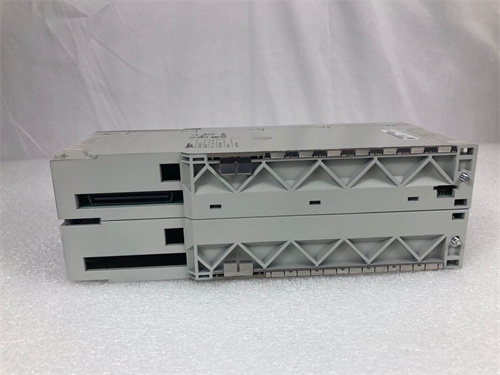

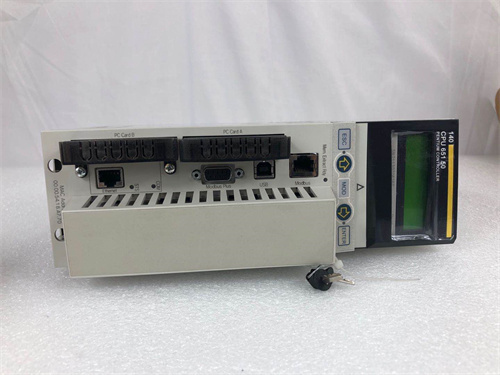

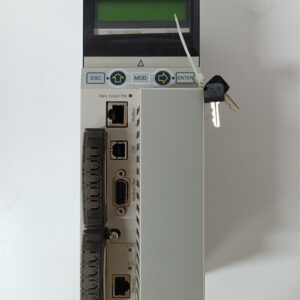

The Schneider Electric 140CPU65150 is a part of the Modicon Quantum programmable logic controller (PLC) series.

Product Name

SCHNEIDER+140CPU65150 140CPU65260 140CPU43412 140CPU11303

Product Description

The 140CPU65150 is a high-performance CPU module designed for the Modicon Quantum PLC system, focusing on automation and control applications. This module is typically used in large and complex process control environments that require reliable and fast processing capability. It supports advanced programming options and offers extensive connectivity, making it suitable for various industrial applications.

Product Parameters and Specifications

• Architecture: Supports a distributed control architecture with capability for high-speed processing.
• Processing Speed: Up to 1.9 MIPS (Million Instructions Per Second).
• Memory:
  • RAM: 512 KB, expandable for larger applications.
  • EEPROM: 128 KB for program storage.
• I/O Capacity: Can handle a variety of input/output modules in a wide array of configurations.
• Communication Ports:
  • Ethernet TCP/IP
  • Serial communication (e.g., Modbus)
  • Optional communication modules for other protocols.
• Power Supply: Typically requires a 24 V DC power supply.
• Software Support: Compatible with Unity Pro programming software for creating and editing automation programs.
• Operating Environment:
  • Operating Temperature: -20°C to +60°C
  • Storage Temperature: -40°C to +85°C
  • Humidity: 5% to 95% (non-condensing)

Product Use

The Modicon Quantum CPU (140CPU65150) is used in various automation applications, including:

• Manufacturing control systems
• Process automation in industries such as oil and gas, water treatment, and food processing
• Material handling systems
• Building automation and control
• Robotics and motion control systems
• Complex machinery control where high-speed processing and reliability are critical

SCHNEIDER+140CPU65150 140CPU65260 140CPU43412 140CPU11303
