Product Description:

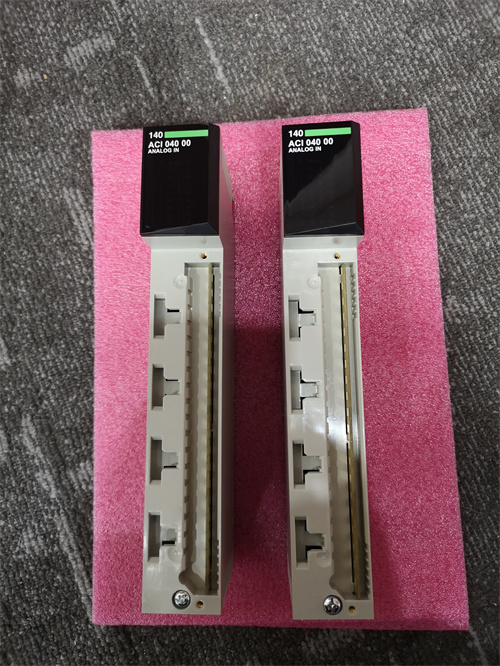

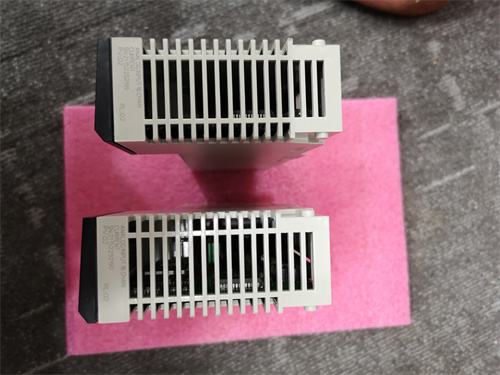

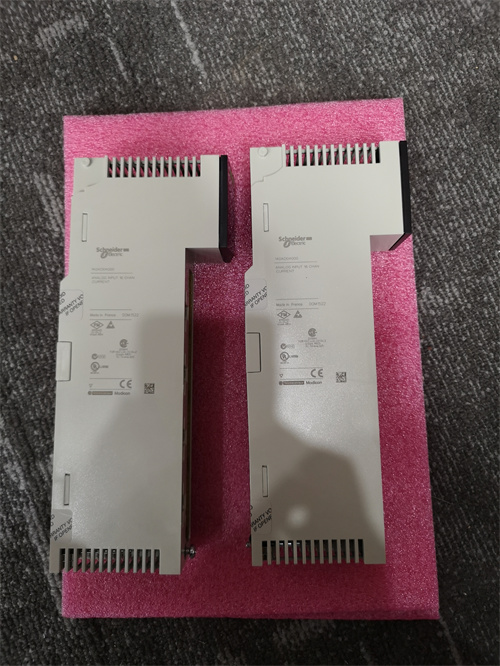

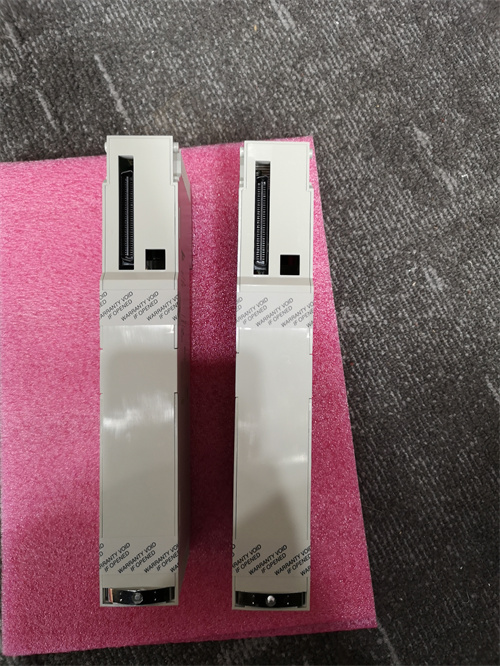

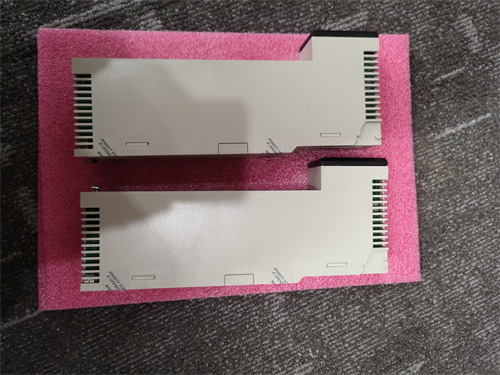

The Schneider Electric 140ACI04000DCS PLC module is a high-performance analog input module designed for use with the Modicon Quantum automation platform. It provides precise and reliable analog input data acquisition for industrial control applications.

Product Parameters:

– Number of Analog Inputs: 4
– Input Type: Voltage or Current
– Input Range: Configurable from -10V to +10V or 0-20mA
– Resolution: 16 bits
– Isolation: 1500V AC between inputs and backplane

Specifications:

– Operating Voltage: 24 VDC
– Input Update Rate: 3 ms per channel
– Operating Temperature: 0 to 60 degrees Celsius
– Storage Temperature: -40 to 85 degrees Celsius
– Dimensions: 126 x 100 x 116 mm

Product Use:

The 140ACI04000DCS PLC module is used in industrial control systems to interface with sensors and transducers that provide analog voltage or current signals. It is commonly used in applications such as process control, motion control, and monitoring systems where precise and accurate analog data acquisition is required for efficient operation.
