Description

The Schneider Electric 140CPS12400 module is part of Schneider’s Modicon series, which is a family of programmable logic controllers (PLCs) used in industrial automation systems. The 140CPS12400 is a specific power supply module designed for the Modicon programmable automation controllers (PAC) and other control systems in Schneider’s lineup.

Product Name:

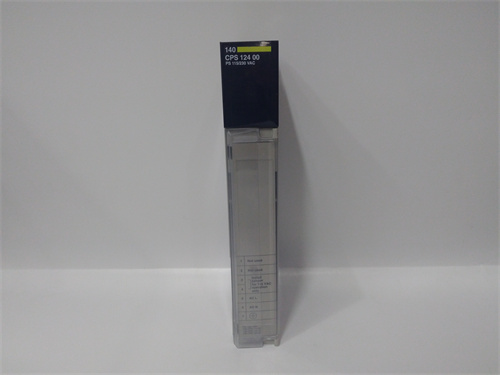

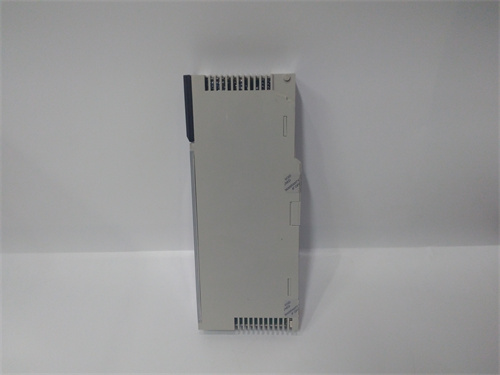

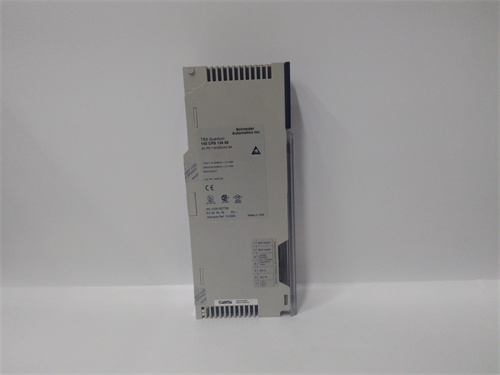

Schneider Electric 140CPS12400 Power Supply Module

Product Description:

The 140CPS12400 is a power supply unit used for the Modicon Premium PLC system. This module provides regulated DC power to the Modicon control systems, ensuring stable and reliable operation of the PLC components and peripherals. It is designed to be integrated into a modular PLC configuration for various industrial automation and control applications.

Product Parameters and Specifications:

• Input Voltage Range:
  • AC Input: 100 to 240 VAC (nominal)
  • Frequency: 50/60 Hz
• Output Voltage:
  • DC Output: 24 VDC
• Output Current:
  • Rated Output Current: 3.0 A
  • Maximum Output Current: 4.0 A
• Power Output:
  • Rated Power: 72 W
• Type: Switch-mode power supply (SMPS)
• Efficiency: High efficiency for energy savings and minimized heat generation
• Safety Standards:
  • UL Listed
  • CE Certified
  • RoHS Compliant (for environmental and safety standards)
• Dimensions:
  • Length: 120 mm
  • Width: 120 mm
  • Depth: 50 mm
• Mounting: DIN rail mounting for easy installation within control panels or automation cabinets
• Environmental Conditions:
  • Operating Temperature: 0°C to +60°C
  • Storage Temperature: -40°C to +85°C
  • Humidity: 5% to 95%, non-condensing
  • Protection: IP20 (standard protection from accidental contact with components)

Product Use:

The 140CPS12400 Power Supply Module is designed to provide reliable DC power to Modicon Premium PLCs, I/O modules, and other automation components that require 24 VDC for operation. This power supply ensures that the entire PLC system remains powered, including the central processing unit (CPU) and expansion modules, for uninterrupted control of industrial processes.

Typical Use Cases:

• Industrial Automation: For controlling machinery, assembly lines, and production systems.
• Process Control: In environments where precise and reliable control of process variables (temperature, pressure, flow) is critical.
• Building Automation: Used in HVAC, lighting control, and other facility management systems.
• Energy Management: For energy monitoring and control applications.

Key Features:

• Modular Design: Easily integrated into modular PLC systems, allowing flexibility in system configuration.
• Compact Design: Space-efficient, allowing for installation in standard control panels.
• Reliable Power Delivery: Ensures consistent performance in industrial applications, even in demanding environments.
• Energy Efficient: Helps reduce operating costs and energy consumption in automation systems.
