Description
Product Name:

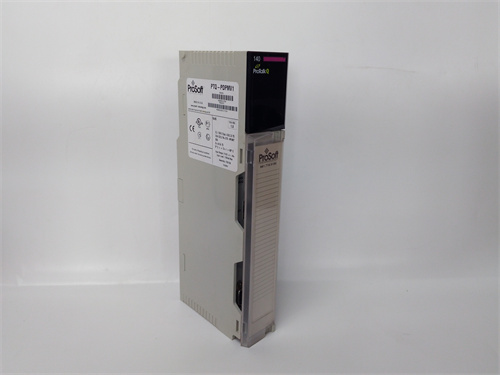

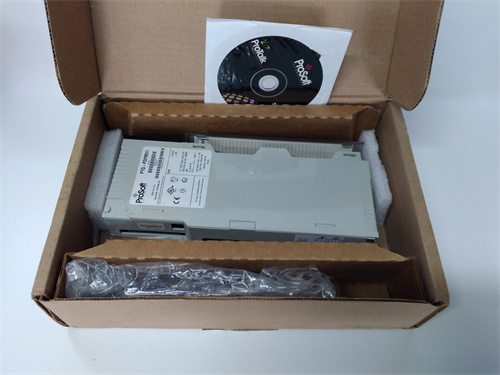

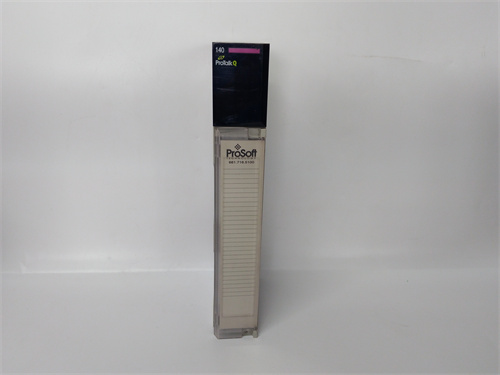

PROSOFT+PTQ-PDPMV1
(Communication/Protocol Module for Industrial Automation)
Product Description:
The PROSOFT+PTQ-PDPMV1 is a communication module designed to facilitate seamless communication between programmable logic controllers (PLCs) and various industrial devices, networks, and protocols. This module is part of the ProSoft Technology’s suite of industrial communication solutions and is typically used in applications where different PLC systems need to interface with other automation equipment or third-party devices.
The module supports multiple communication protocols and can be used to extend the connectivity of a PLC to different networks or industrial systems, enabling efficient data transfer and integration across the entire manufacturing process.
Product Parameters and Specifications:
- Model: PROSOFT+PTQ-PDPMV1
- Form Factor: Typically DIN rail mounted or similar form factor
- Communication Protocols Supported:
- Ethernet/IP, Modbus, Profinet, or others (based on the specific version)
- Specific support for common industrial networks (e.g., DeviceNet, Profibus, etc.)
- Operating Voltage:
- 24V DC (common for industrial automation modules)
- Power Consumption:
- Typically 5-10W, depending on the communication workload
- Interface:
- Ethernet ports (for network communication)
- Serial ports (RS-232, RS-485) or other I/O ports as needed
- Data Transmission Rate:
- Up to 100 Mbps or higher for Ethernet-based modules
- Operating Temperature Range:
- Typically -40°C to +70°C, depending on the specific industrial environment
- Mounting:
- DIN rail or other mounting options available
- LED Indicators:
- For status, power, and communication activity
- Protocol Conversion:
- Capable of translating between different protocols (e.g., Modbus to Ethernet/IP or Profinet to DeviceNet)
- Diagnostics and Troubleshooting Features:
- Built-in diagnostic tools and status indicators for monitoring and troubleshooting network issues
- Certification:
- CE, UL, and other industrial certifications for safety and quality compliance
Product Use:
The PROSOFT+PTQ-PDPMV1 module is used in various industrial automation scenarios, including:
- PLC Networking: Used to enable communication between different PLCs and control systems across an industrial facility.
- System Integration: Connects disparate systems and devices in manufacturing or production lines, facilitating data exchange across different protocols.
- Device Connectivity: Provides connectivity between PLCs and remote I/O devices, sensors, actuators, or machine controllers.
- Protocol Bridging: Ideal for systems requiring communication between different types of fieldbus protocols, enabling seamless integration between legacy systems and modern automation networks.
- SCADA Systems: Enhances SCADA (Supervisory Control and Data Acquisition) systems with improved protocol flexibility and communication options.
