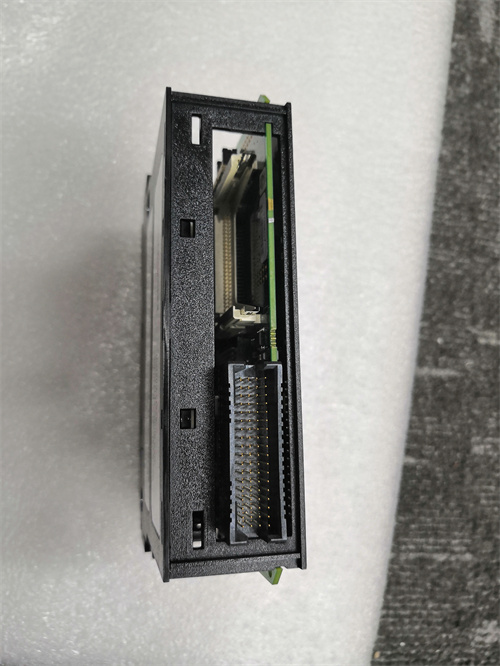

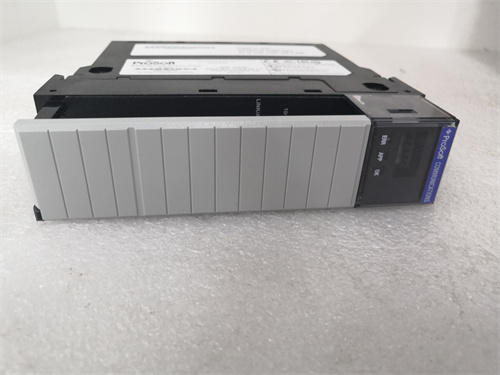

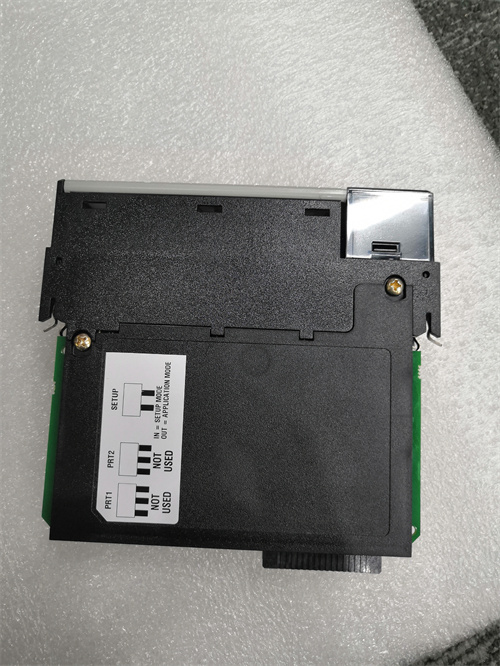

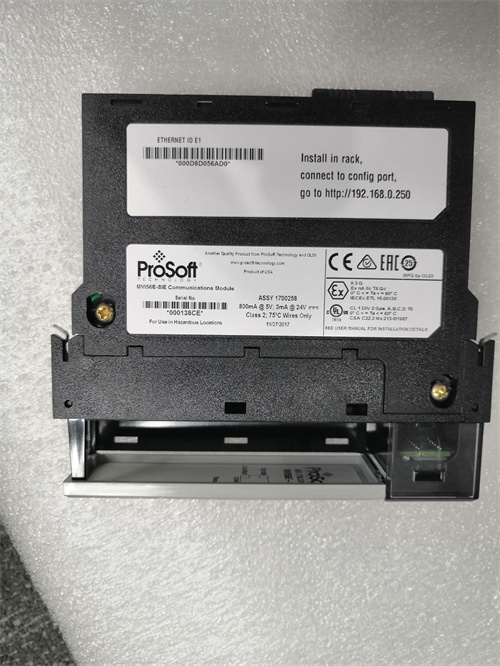

PROSOFT+MVI56E-SIE

Description

The PROSOFT+MVI56E-SIE module is a communication module designed to interface Rockwell Automation’s Allen-Bradley programmable logic controllers (PLCs) with a variety of industrial networks. The module integrates ProSoft Technology’s communication solutions with Allen-Bradley’s ControlLogix PLC systems.

Product Name:

MVI56E-SIE – Ethernet/IP Communication Module for Rockwell Automation ControlLogix

Product Description:

The MVI56E-SIE module is an Ethernet/IP communication interface module, designed to enable seamless communication between Rockwell Automation PLCs and Siemens S7 PLCs or other Siemens equipment using the Siemens S7 protocol. The module provides a robust and flexible solution for integrating Siemens devices into Allen-Bradley control systems, allowing users to easily manage data exchange between different PLC brands within industrial automation systems.

Product Parameters and Specifications:

1. Interface:
   • Ethernet/IP (Industrial Ethernet).
   • Supported protocols: Siemens S7 (ISO on TCP/IP).
2. Compatibility:
   • Works with Allen-Bradley ControlLogix and CompactLogix PLC platforms.
   • Compatible with Siemens S7-1200, S7-1500 PLCs, and other Siemens automation systems supporting the S7 protocol.
3. Data Communication:
   • Facilitates data transfer between Siemens S7 PLCs and Allen-Bradley PLCs over Ethernet/IP.
   • Supports real-time data exchange including I/O, tags, and device information.
4. Network:
   • Uses Ethernet/IP for network connectivity.
   • Supports TCP/IP communication for integration with networked systems.
5. LED Indicators:
   • Provides status LEDs for Power, Network, and Communication (for diagnostics).
6. Power Requirements:
   • Operating voltage: 24V DC.
   • Power consumption: Approximately 2.5W.
7. Programming & Configuration:
   • Configured and programmed via RSLogix 5000 or Studio 5000 software.
   • Includes ProSoft Configuration Builder for easy setup.
8. Mounting:
   • The module is designed to be mounted directly onto the Allen-Bradley ControlLogix or CompactLogix chassis.
9. Physical Dimensions:
   • Height: 4.5 inches (114.3mm).
   • Width: 0.8 inches (20.32mm).
   • Depth: 5.4 inches (137.16mm).
10. Environment:

• Operating temperature range: 0°C to 60°C (32°F to 140°F).
• Storage temperature range: -40°C to 85°C (-40°F to 185°F).
• Relative humidity: 5% to 95%, non-condensing.

Product Use:

The MVI56E-SIE module is primarily used in industrial automation applications where communication between Siemens S7-based devices (such as PLCs, HMIs, and remote I/O modules) and Allen-Bradley ControlLogix systems is required. This module enables efficient data exchange across different PLC platforms in a manufacturing environment, particularly in situations where integration between Siemens and Allen-Bradley systems is necessary.

Typical applications include:

• Cross-platform data exchange between Siemens S7 PLCs and Allen-Bradley PLCs.
• Industrial network integration in multi-vendor environments.
• Real-time monitoring and control of devices and systems from both Siemens and Rockwell automation.
• Machine automation where Siemens equipment communicates with Allen-Bradley controllers for process control, packaging, assembly lines, or material handling systems.
