PROSOFT+MVI56E-MNETCR

Description

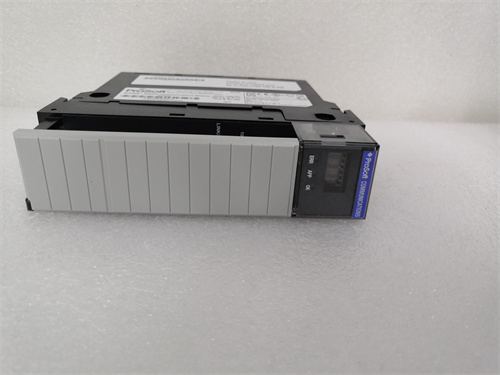

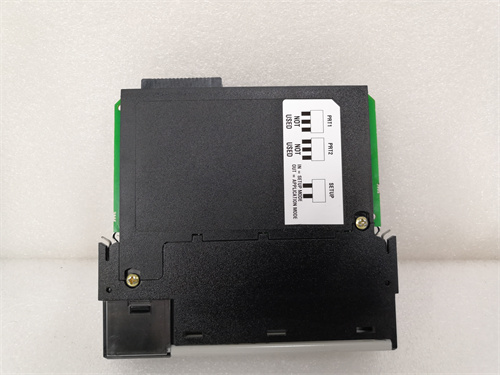

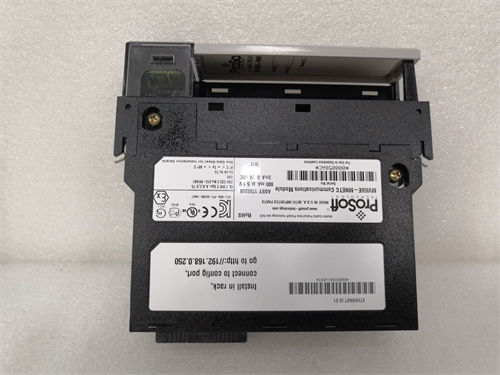

The PROSOFT MVI56E-MNETCR is a communication module designed for the Rockwell Automation ControlLogix platform.

Product Name:

PROSOFT MVI56E-MNETCR

Product Description:

The PROSOFT MVI56E-MNETCR module is a compact communication interface designed to enable communication between Rockwell Automation ControlLogix systems and Modbus TCP/IP devices. This module allows seamless integration of Modbus devices into Allen-Bradley ControlLogix architectures and facilitates bidirectional communication.

Product Parameters:

• Protocol Supported: Modbus TCP/IP
• Communication Ports: Typically includes Ethernet ports for network connectivity.
• Backplane Connector: Compatible with ControlLogix backplane.
• Power Supply Requirements: Generally operates with standard ControlLogix power supply voltages.
• Diagnostic Capabilities: Provides LED indicators for status and diagnostics.

Specifications:

• Network Data Rate: Supports standard Ethernet data rates (10/100 Mbps).
• Maximum Number of Connections: Can support multiple simultaneous Modbus TCP connections.
• Configuration: Includes web-based configuration tools and software.
• Operating Temperature Range: Usually operates in a wide range (e.g., -20 to 60 degrees Celsius).
• Protection Class: Generally built to industrial specifications for durability.
• Dimensions: As per specifics of the module, typically compact to fit in ControlLogix racks.

Product Use:

The MVI56E-MNETCR module is primarily used in industrial automation applications where communication with Modbus TCP/IP devices is required. This includes:

• Integrating Legacy Equipment: Allows integration of older devices using Modbus TCP into modern ControlLogix systems.
• Data Acquisition: Collects data from remote Modbus devices for monitoring and control functions.
• Process Automation: Used in various industries such as manufacturing, oil and gas, water treatment, and any application that deploys Modbus TCP/IP devices.
• SCADA Systems: Facilitates communication in Supervisory Control and Data Acquisition systems.
