PROSOFT+MVI56E-MCM

Description

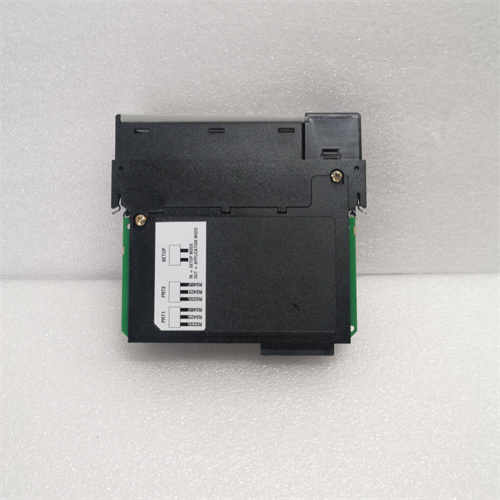

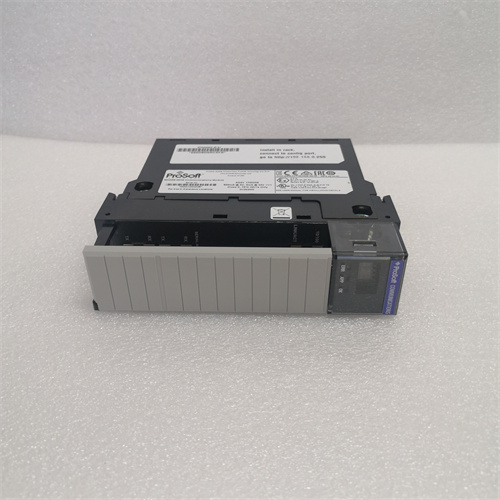

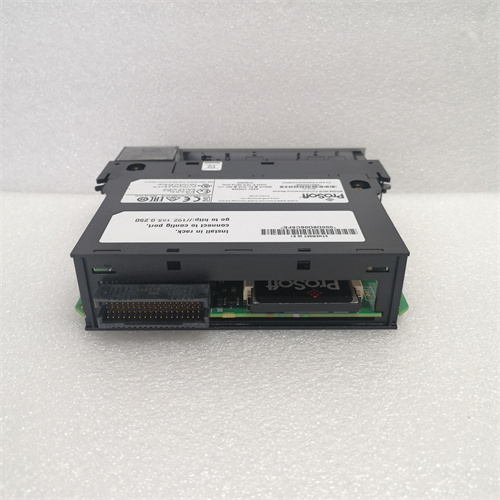

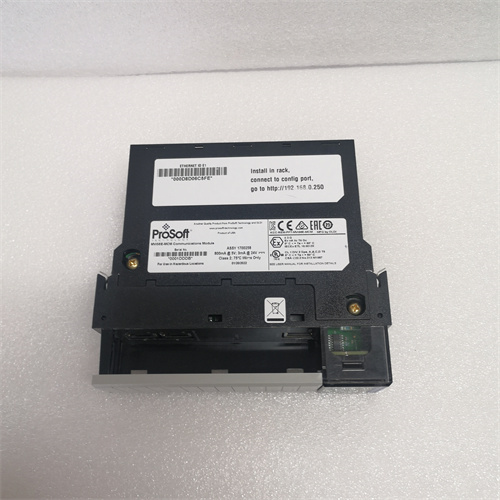

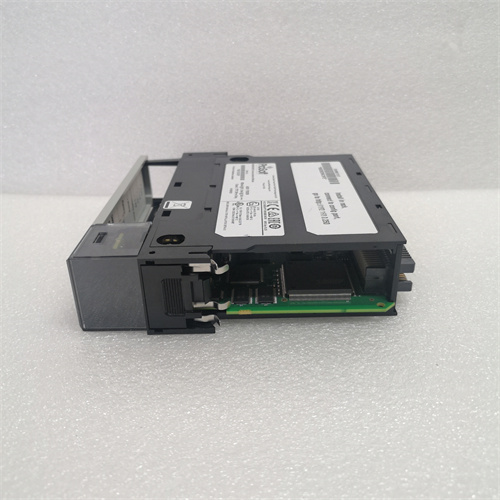

The PROSOFT MVI56E-MCM module is a communication module designed for use in industrial applications.

Product Name:

PROSOFT MVI56E-MCM

Product Description:

The PROSOFT MVI56E-MCM module is a Modbus master/slave communication module that allows communication between Modbus TCP/IP or Modbus RTU devices and the ControlLogix platform. It provides enhanced connectivity and protocol conversion capabilities for a wide range of industrial automation applications.

Product Parameters:

– Modbus Master/Slave communication
– Modbus TCP/IP and Modbus RTU support
– ControlLogix platform compatibility
– DIN rail mountable

Specifications:

– Communication Protocols: Modbus TCP/IP, Modbus RTU
– Communication Speed: 10/100 Mbps
– Operating Temperature: 0°C to 60°C
– Power Supply: 5V DC

Product Use:

The PROSOFT MVI56E-MCM module is commonly used in industrial automation applications where communication with Modbus devices is required. It can be used to connect Modbus TCP/IP or Modbus RTU devices to ControlLogix controllers, enabling seamless data exchange and control functionalities in the industrial environment.
