PROSOFT+MVI56-PDPMV1

Description

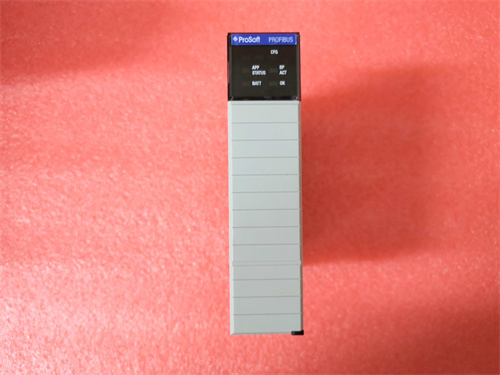

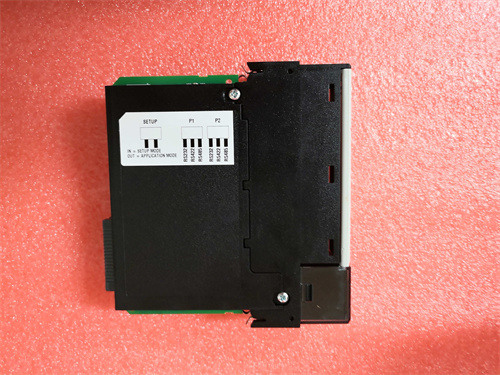

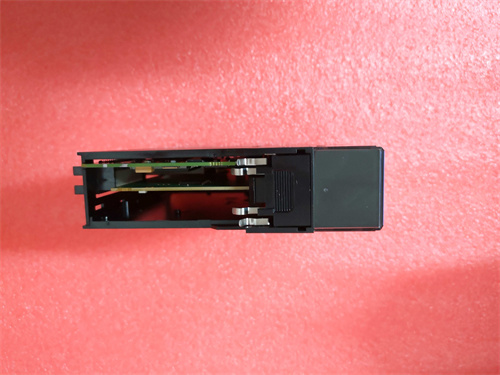

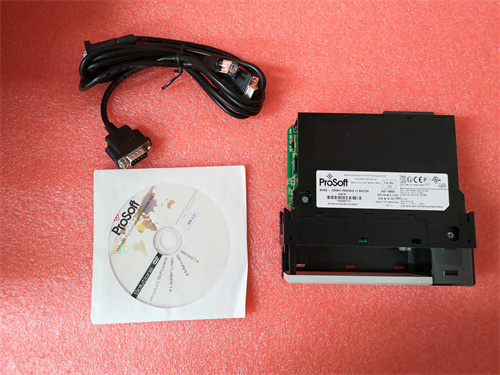

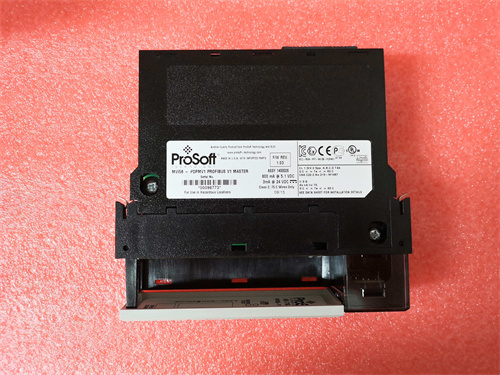

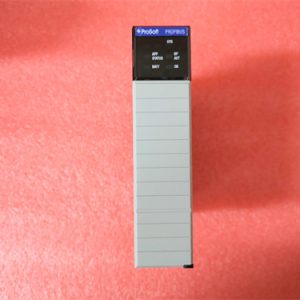

The PROSOFT MVI56-PDPMV1 module is a communication module designed for Rockwell Automation ControlLogix platforms.

Product Name:

PROSOFT MVI56-PDPMV1 Profibus-DP Master Communication Module for ControlLogix

Product Description:

The MVI56-PDPMV1 module enables communication between ControlLogix platforms and devices on a Profibus-DP network. It allows ControlLogix processors to exchange data with Profibus-DP slaves.

Product Parameters:

– Module Type: Profibus-DP Master Communication Module
– Compatibility: Rockwell Automation ControlLogix platforms
– Communication Protocols: Profibus-DP
– Communication Rate: Up to 12 Mbps
– Operating Temperature: 0 to 60°C (32 to 140°F)
– Storage Temperature: -40 to 85°C (-40 to 185°F)

Specifications:

– Input Data: Up to 244 bytes
– Output Data: Up to 244 bytes
– Profibus-DP Addressing: Supports up to 125 slaves
– Diagnostic LEDs: Status and fault indication
– Configuration: Configured using RSLogix 5000 software
– Power Supply: 5V DC from ControlLogix backplane

Product Use:

The PROSOFT MVI56-PDPMV1 module is used to integrate ControlLogix platforms with Profibus-DP networks. It allows the ControlLogix processor to communicate with devices such as sensors, actuators, drives, and other industrial equipment that use the Profibus-DP protocol. This module facilitates data exchange and control between the ControlLogix system and the Profibus-DP devices, enabling seamless integration and automation in industrial applications.
