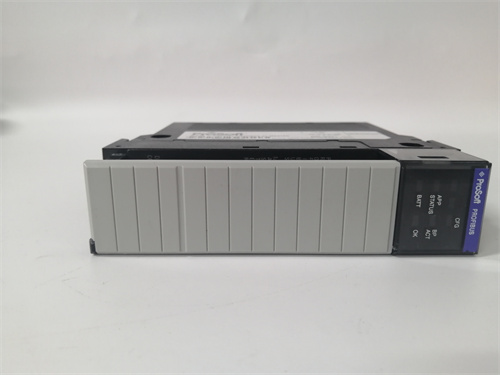

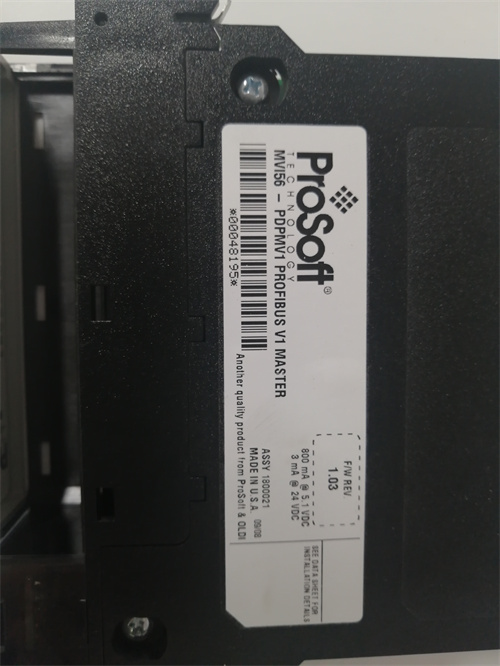

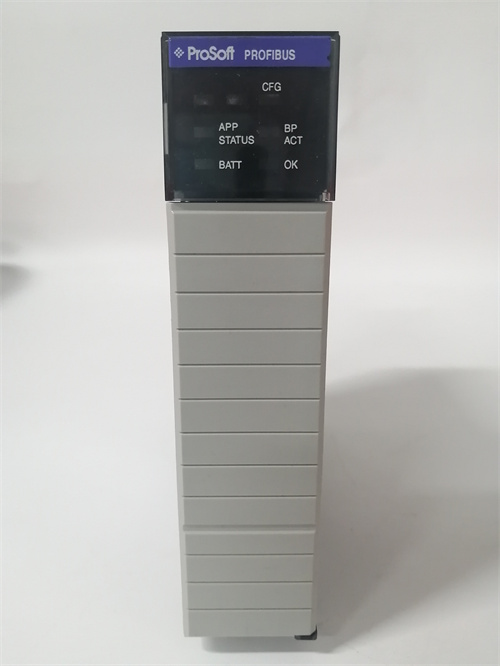

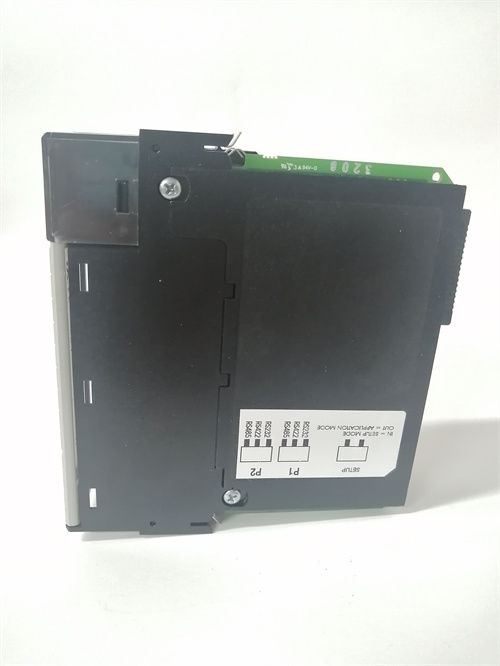

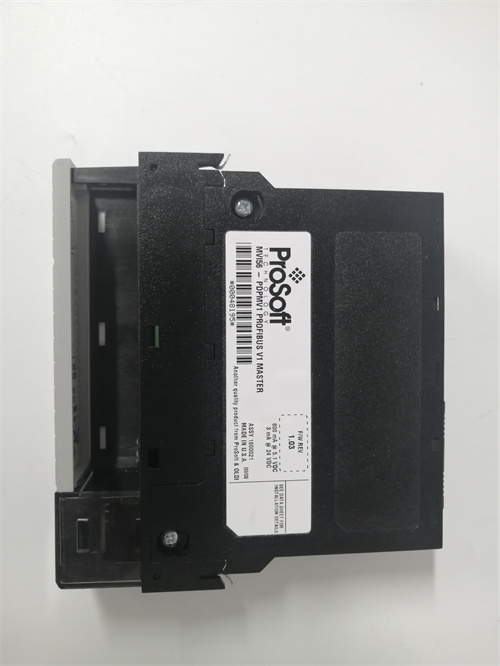

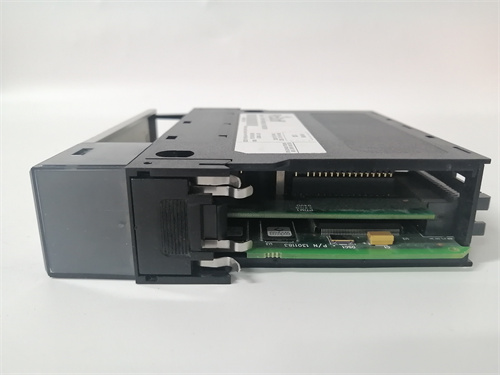

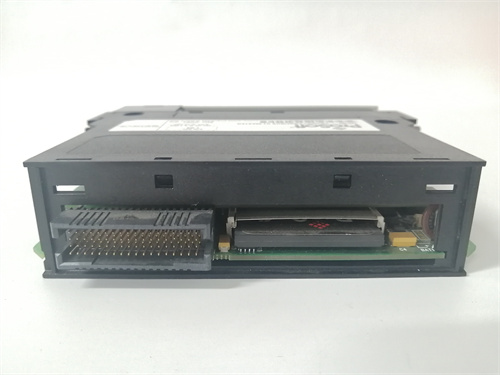

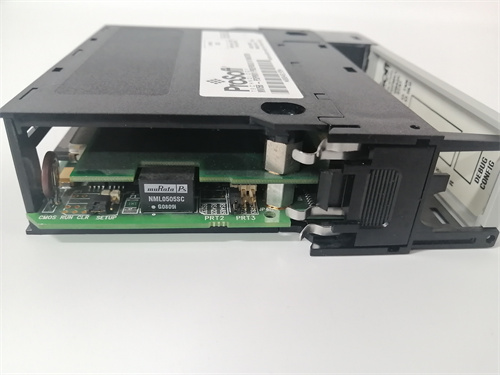

PROSOFT+MVI56-PDPMV1

Description

The Prosoft MVI56-PDPMV1 is a Profibus DPV1 master communication module for Rockwell Automation ControlLogix platform. It allows the ControlLogix processor to interface with Profibus DPV1 industrial networks.

Product Name:

Prosoft MVI56-PDPMV1

Product Description:

The module provides seamless integration between ControlLogix and Profibus DPV1 networks, enabling efficient data transfer and communication.
Product Parameters:

– Profibus DPV1 master
– ControlLogix platform compatibility
– DIN rail mountable
– Supports up to 125 slaves

Specifications:

– Operating Temperature: 0 to 60°C
– Storage Temperature: -40 to 85°C
– Power Supply: 5V DC from the ControlLogix backplane
– Current Load: 800 mA max.
– Dimensions: 149mm x 73mm x 90mm (H x W x D)

Product Use:

The MVI56-PDPMV1 module is used to link ControlLogix platforms to Profibus DPV1 networks, facilitating the exchange of data with a wide range of industrial automation devices such as drives, sensors, and motors. It is commonly employed in manufacturing, process control, and other industrial applications.
