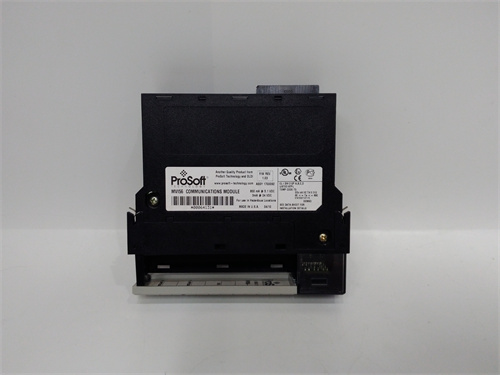

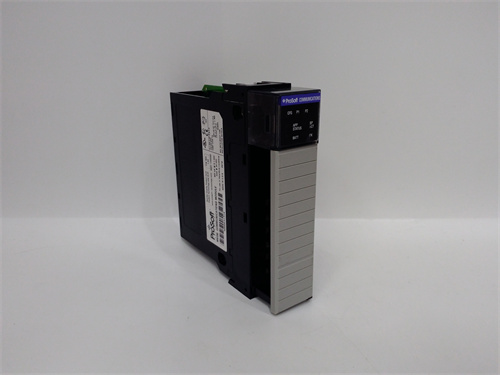

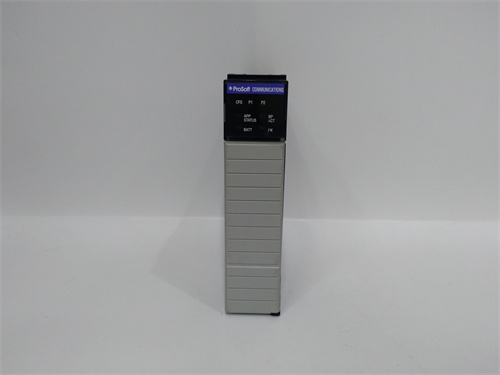

PROSOFT+MVI56-MCM

Description

The PROSOFT+ MVI56-MCM module is a communication module for the Rockwell Automation ControlLogix platform. It is designed to provide connectivity and data exchange between ControlLogix processors and Modbus-compatible devices.

Product Name:

PROSOFT+ MVI56-MCM

Product Description:

The MVI56-MCM module is a communication interface that allows ControlLogix controllers to communicate with Modbus RTU and ASCII compatible devices. It enables seamless integration of Modbus devices into Rockwell Automation control systems.

Product Parameters:

– Communication interface: Modbus RTU and ASCII
– Supported protocols: Modbus Master/Slave
– Communication ports: RS-232 and RS-485
– Data rates: Up to 115.2 kbps
– Power supply: 800 mA @ 5VDC

Specifications:

– CompactLogix and ControlLogix platform compatible
– DIN rail mountable
– Operating temperature: 0 to 60°C
– Storage temperature: -40 to 85°C
– Dimensions: 4.71 x 1.36 x 3.04 in (119.7 x 34.5 x 77.2 mm)

Product Use:

The MVI56-MCM module is used to enable communication with Modbus-compatible devices such as PLCs, RTUs, meters, and other industrial equipment. It allows users to read and write data to and from these devices, thereby integrating them into the overall control system. The module is commonly used in industrial automation, process control, and monitoring applications.
