PR0S0FT+MVI56-MDA4

Description

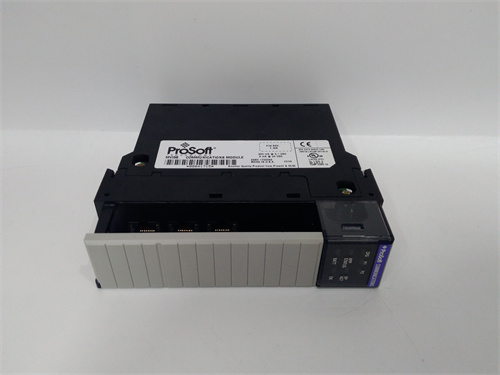

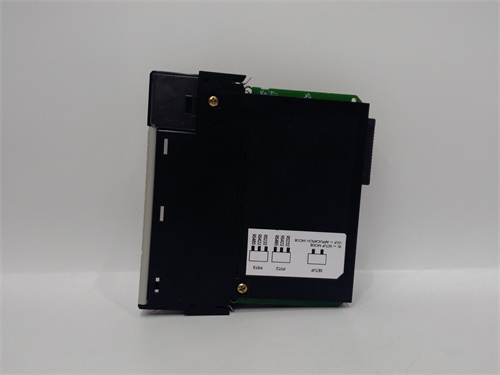

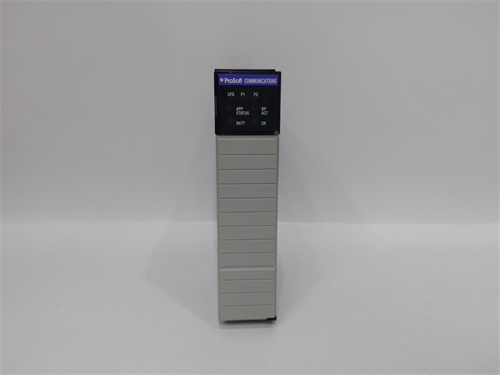

The Prosoft MVI56-MDA4 module is a Modbus Master/Slave Enhanced Communication Module for Rockwell Automation ControlLogix PLCs.

Product Name:

MVI56-MDA4 Modbus Master/Slave Enhanced Communication Module

Product Description:

The MVI56-MDA4 module allows ControlLogix processors to interface easily with other Modbus Protocol compatible devices in the network. It enhances the communication capabilities of the PLC by supporting both Modbus RTU and Modbus ASCII protocols for serial communication.

Product Parameters:

– Supports Modbus RTU and Modbus ASCII protocols
– 4 isolated RS-485 serial ports
– Supports up to 128 Modbus commands in a single scan
– Configurable communication parameters
– DIN-rail mountable

Specifications:

– Compatible with ControlLogix PLCs
– Operating temperature: 0 to 60 degrees Celsius
– Power requirement: 800mA @ 5 VDC
– Communication distance: up to 4000 ft (1219 m)

Product Use:

The MVI56-MDA4 module is commonly used in industrial automation applications where Rockwell Automation ControlLogix PLCs need to communicate with Modbus-compatible devices such as meters, drives, controllers, and other equipment. It facilitates data exchange between different devices in the network, enabling seamless integration and control.
