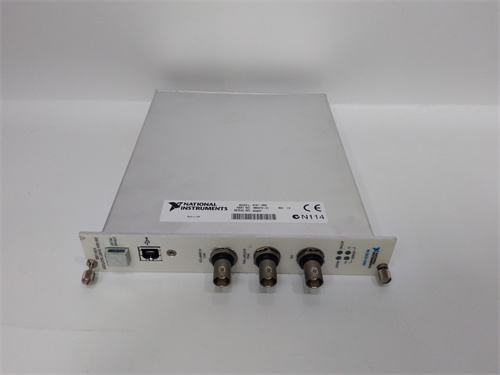

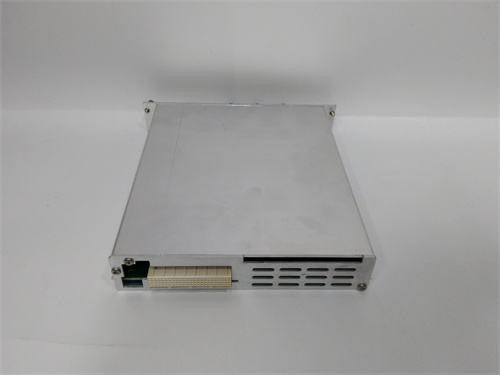

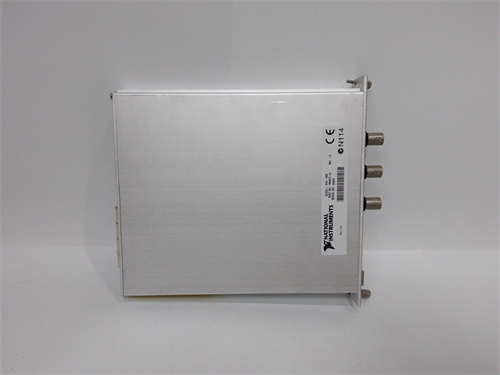

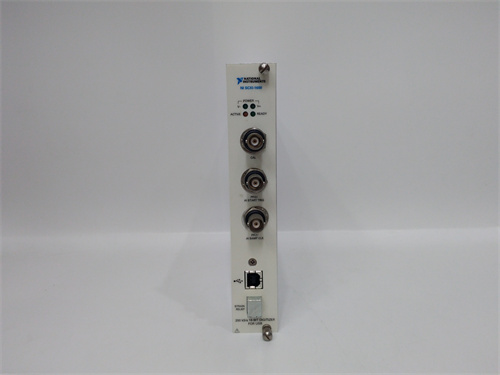

NI+SCXI-1600

Description

The NI SCXI-1600 is a versatile signal conditioning module designed for use with SCXI switch, control, and/or measure modules in data acquisition systems.

Product Name:

NI SCXI-1600

Product Description:

The NI SCXI-1600 is a 64-channel dynamic signal conditioning module for use with SCXI systems, providing signal conditioning and amplification for a wide range of input signals.

Product Parameters:

– Input Channels: 64 differential or 128 single-ended
– Input Types: AC/DC voltage, AC/DC current, thermocouples, RTDs, strain gauges, and frequency
– Input Range: Varies based on input type
– Frequency Response: Up to 100 kHz
– Output Types: Analog voltage or current

Specifications:

– Dimensions: 18.8 cm x 26.7 cm x 3.9 cm
– Weight: 0.6 kg
– Operating Temperature: 0 to 55°C
– Operating Humidity: 10% to 90% noncondensing
– Power Requirements: +5 VDC, +12 VDC, and -12 VDC

Product Use:

The NI SCXI-1600 is used to condition and amplify various input signals from sensors and transducers, providing the necessary signal conversion and amplification for accurate measurement and control in data acquisition applications. It is commonly used in test and measurement, industrial automation, and scientific research environments.
