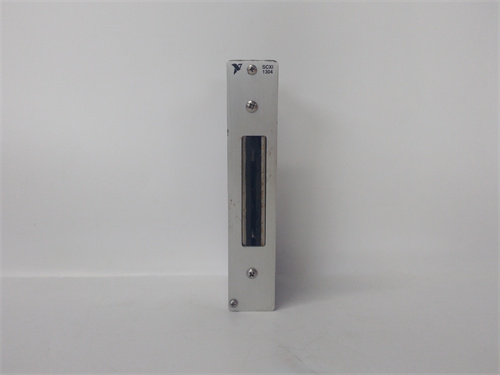

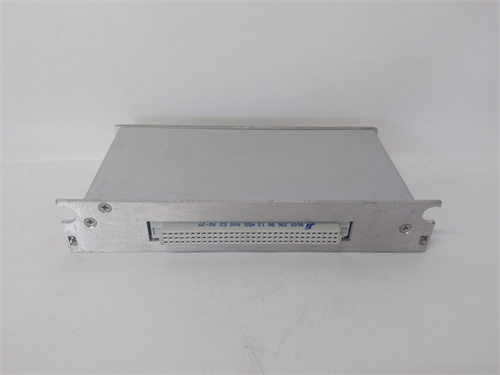

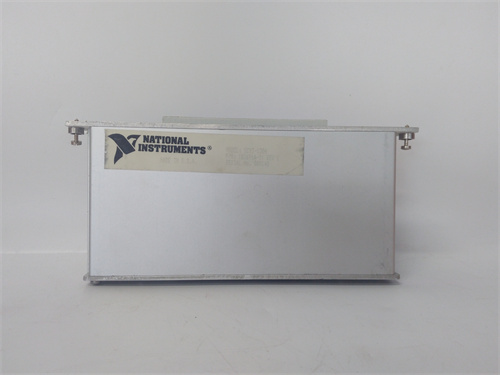

NI+SCXI-1304

Description

The National Instruments SCXI-1304 is a four-channel general-purpose relay module designed for use with SCXI signal conditioning systems. This module provides a convenient and reliable way to switch, route, or control external devices such as solenoids, motors, and power supplies in a variety of automated test and measurement applications.

Product Name:

National Instruments SCXI-1304

Product Description:

The SCXI-1304 is a 4-channel general-purpose relay module that provides reliable switching and control functionality for SCXI signal conditioning systems.

Product Parameters:

– Number of Channels: 4
– Contact Rating: 1 A at 30 VDC or 0.5 A at 125 VAC
– Switching Time: 3 ms
– Maximum Switching Rate: 300 operations/minute
– Isolation: 250 Vrms channel-to-channel and channel-to-earth ground
– Size: 1-slot, 8-channel relay module

Specifications:

– Operating Temperature Range: 0 to 55 °C
– Storage Temperature Range: -20 to 70 °C
– Operating Humidity: 10% to 90% noncondensing
– Storage Humidity: 5% to 95% noncondensing

Product Use:

The SCXI-1304 relay module is ideal for switching, controlling, and routing signals to external devices in automated test, measurement, and control applications. It can be used to automate the control of devices such as motors, solenoids, lamps, and other external instruments within a test system.
