NI+SCXI-1160

Description

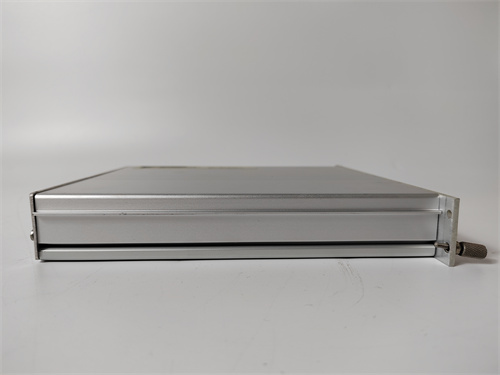

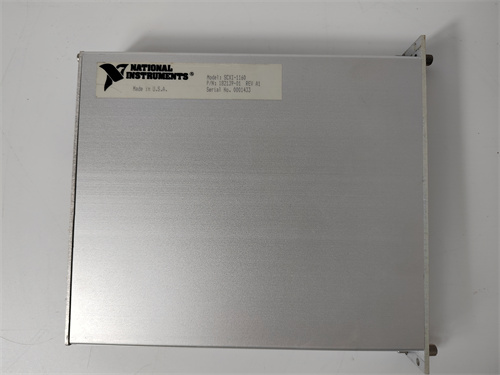

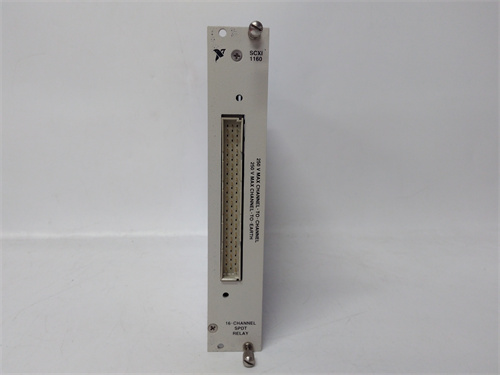

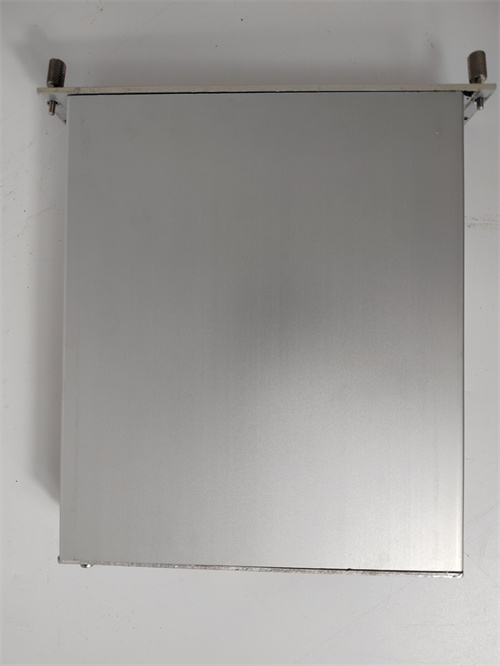

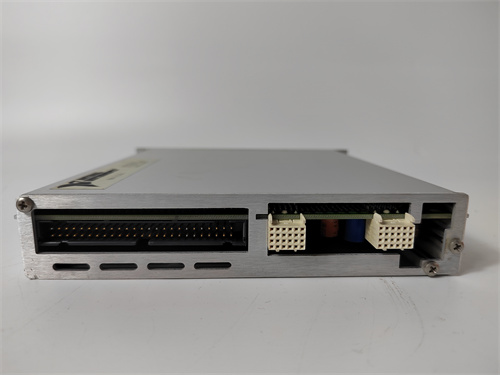

The NI-SCXI-1160 module is a signal conditioning module designed for use with the NI SCXI platform, which is a modular data acquisition system.

Product name: NI-SCXI-1160 16-Channel, 120 Vrms/v, 1 A, AC/DC input module

Product Description:
The NI-SCXI-1160 module features 16 channels for measuring AC and DC voltages or currents. It has a voltage range of up to 120 Vrms per channel and a current range of 1 A. The module is designed for high-performance data acquisition and signal conditioning applications, providing accurate measurements in industrial and laboratory settings.

Product Parameters and Specifications:

– Input Connector: Screw terminals
– Accuracy: 0.1% of reading + 1 mV
– Frequency Range: 40 Hz – 20 kHz
– Overvoltage Protection: 400 Vrms
– Isolation: Up to 300 V rms, CAT I
– Operating Temperature: 0 to 55°C
– Dimensions: 1 SCXI module slot

The NI-SCXI-1160 module is ideal for applications that require high-speed and high-accuracy measurements of voltage and current signals. It is compatible with the NI SCXI chassis and can be easily integrated into existing measurement systems.
