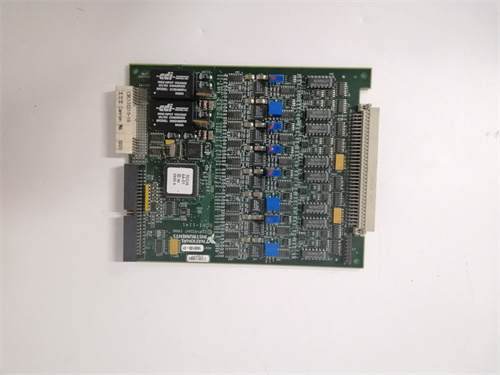

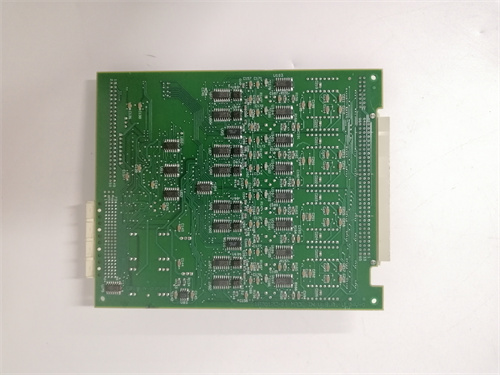

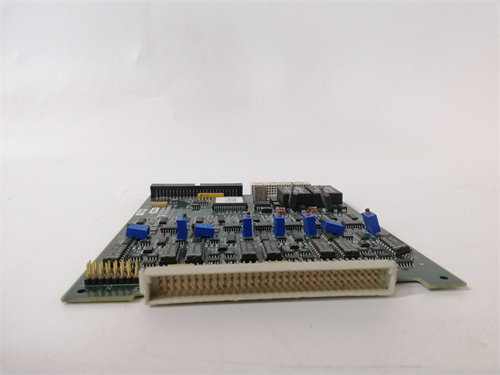

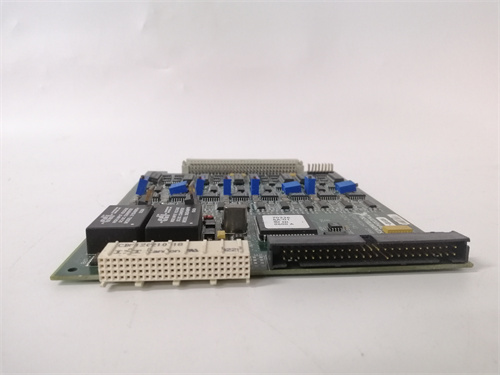

NI+SCXI-1141 182610D-01

Description

The NI SCXI-1141 is a module designed for use in National Instruments’ SCXI (Signal Conditioning eXtensions for Instrumentation) system.

Product Name

NI SCXI-1141

Product Description

The NI SCXI-1141 is a 16-channel analog input module designed for high-performance signal conditioning and data acquisition. It is specifically used for applications that require the measurement of low-level signals from a variety of sensors and transducers. This module supports a range of signal types, making it versatile for different measurement scenarios.

Product Parameters

• Channels: 16 analog input channels
• Input Type: Differential input
• Input Voltage Range: Typically ±10 V or ±5 V (configurable)
• Sampling Rate: Depends on the connected DAQ device
• Resolution: 16 bits (depending on the DAQ system)
• Signal Conditioning: Includes features for filtering and amplification
• Isolation: Offers channel-to-channel isolation for noise reduction

Specifications

• Connector Type: SCXI connector (for modular connection to SCXI chassis)
• Operating Temperature Range: Typically -40 to +70 °C
• Power Requirements: Varies based on the SCXI chassis and other modules in use
• Size: Standard SCXI form factor (dimensions vary slightly)

Product Use

The SCXI-1141 is commonly used in applications such as:

• Industrial monitoring and control systems
• Laboratory research and testing
• Automotive testing
• Aerospace applications
• Medical device testing
• Environmental monitoring

Key Features

• High-channel density
• Configurable input ranges
• Built-in signal conditioning
• Suitable for noisy environments due to isolation features
