NI+SCXI-1102B

Description

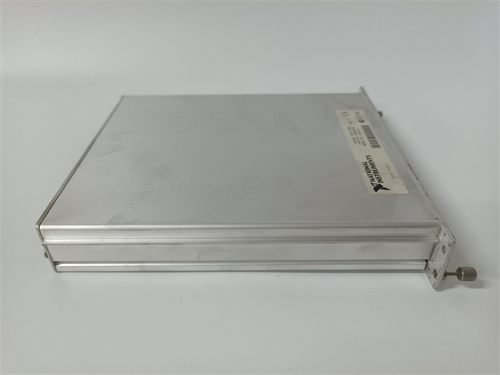

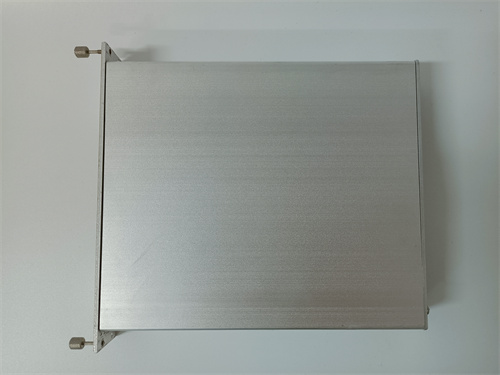

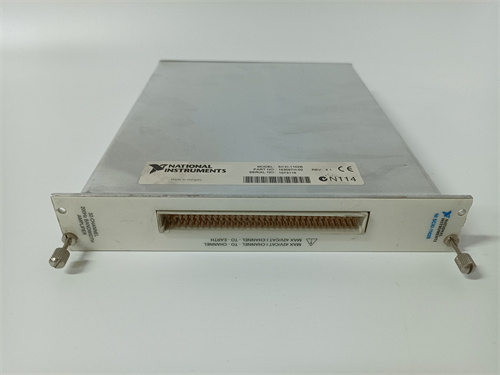

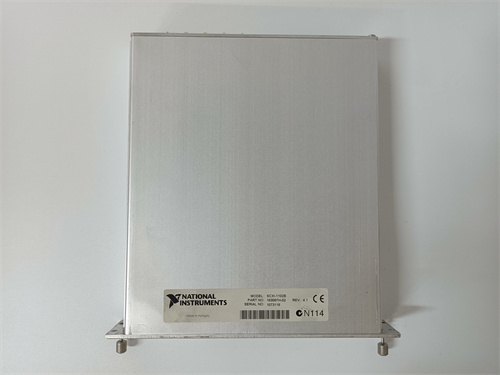

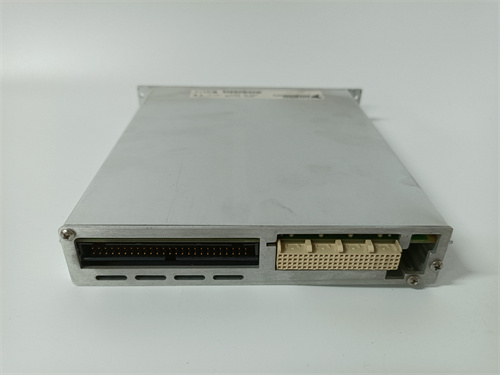

The NI SCXI-1102B is a multifunction signal conditioning module designed for use with the National Instruments SCXI (Signal Conditioning eXtensions for Instrumentation) system.

Product Name

NI SCXI-1102B

Product Description

The NI SCXI-1102B module is designed for analog signal conditioning and provides high-performance, flexible signal processing for various sensor types. It is often used in applications that require precision measurements, such as data acquisition, monitoring, and control systems.

Product Parameters and Specifications

• Input Channels: 8 differential input channels
• Input Range: ±10 V, ±5 V, ±2 V, and other ranges
• Input Impedance: Typically 1 MΩ (differential)
• Sampling Rate: Up to 100 kS/s per channel (depends on configuration)
• Signal Conditioning: Includes filtering, gain, and offset adjustment
• Low-Noise Performance: Designed for low noise and high accuracy
• Compatibility: Works with various NI DAQ devices and SCXI chassis
• Power Requirements: Typically powered via the SCXI chassis
• Dimensions: Standard SCXI module size
• Operating Temperature Range: 0 °C to 55 °C

Product Use

The NI SCXI-1102B module is used in various applications including:

• Industrial automation
• Laboratory experiments
• Environmental monitoring
• Biomedical instrumentation
• Structural health monitoring
