NI+SCXI-1100

Description

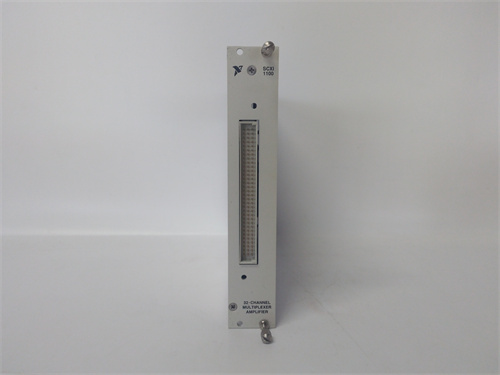

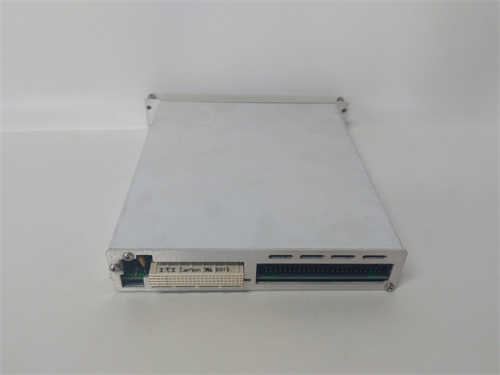

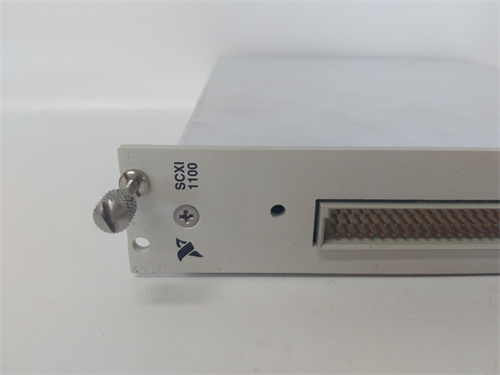

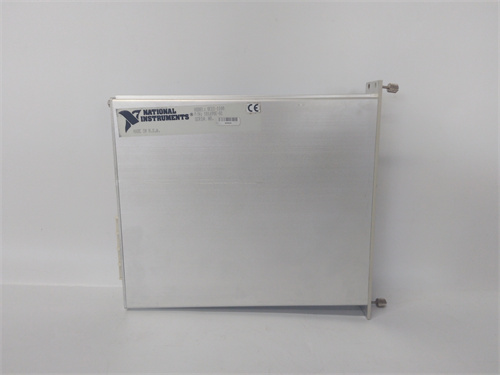

The NI-SCXI-1100 module from National Instruments is a high-performance data acquisition module designed for use in SCXI chassis.

Product Name:

NI-SCXI-1100

Product Description:

The NI-SCXI-1100 is a 32-channel general-purpose isolated input module. It offers versatile signal conditioning, including programmable gain and filtering, for a wide range of sensors and signals.

Product Parameters:

– Number of Channels: 32
– Input Voltage Range: ±10 V
– Input Impedance: 1 MΩ || 20 pF
– Isolation: 250 Vrms, CAT I

Specifications:

– Maximum Sample Rate: 100 kS/s (per channel)
– Resolution: 16 bits
– Accuracy: ±0.15% of reading
– Bandwidth: 50 kHz (-3 dB)
– Temperature Range: 0 to 50 °C

Product Use:

The NI-SCXI-1100 module is used for high-precision measurements in a variety of applications, including industrial automation, test and measurement, and scientific research. It is commonly used for acquiring data from sensors, transducers, and other analog signal sources, and can be integrated with National Instruments’ LabVIEW software for data analysis and visualization.

Overall, the NI-SCXI-1100 module provides reliable and accurate data acquisition capabilities for a wide range of measurement and control systems.
