NI+SCXI-1001

Description

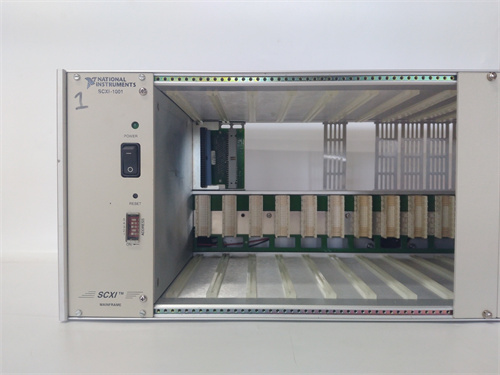

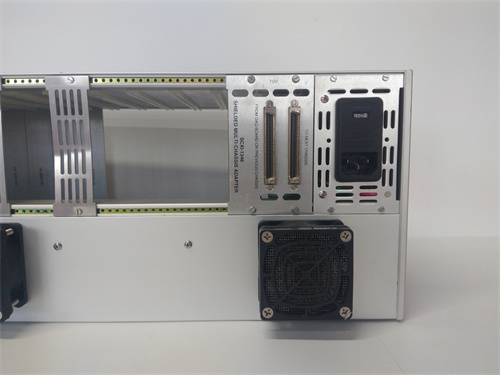

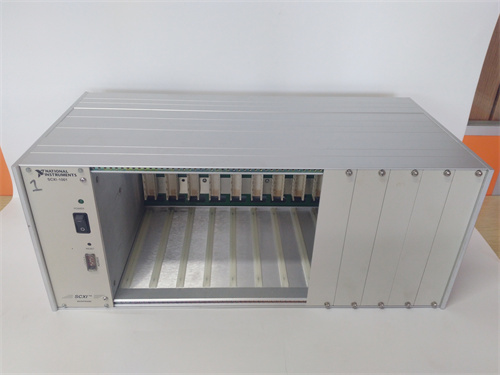

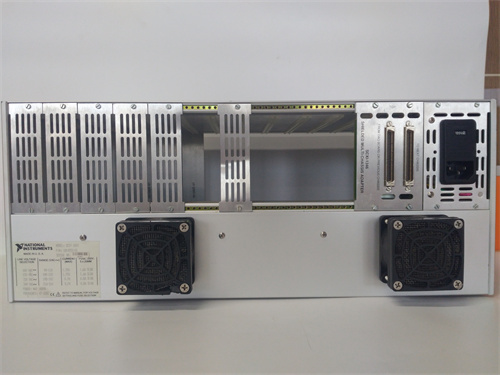

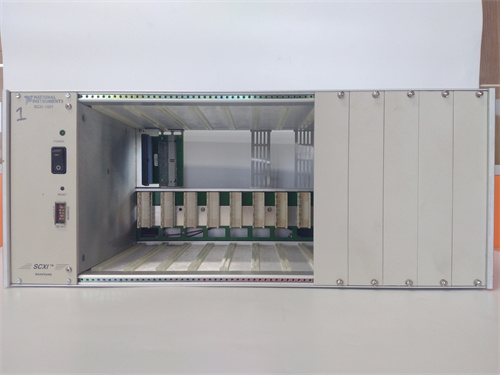

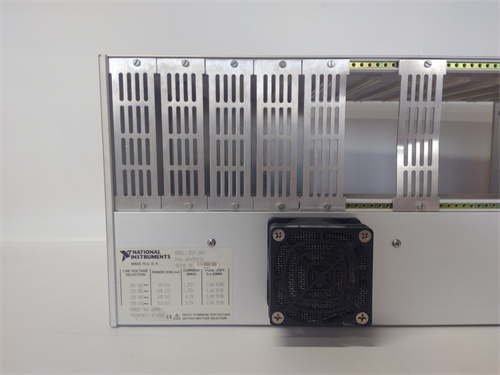

The NI SCXI-1001 is a modular, 19-inch rack chassis designed for use with National Instruments’ SCXI (Signal Conditioning for Instrumentation) systems. The SCXI-1001 serves as the housing for the SCXI signal conditioning modules, providing power, mechanical support, and communication between the modules and the computer system.

Product Name:

NI SCXI-1001 Chassis

Product Description:

The NI SCXI-1001 is a single-slot, 19-inch rackmount chassis for use with the SCXI modular signal conditioning system. It accommodates a wide range of SCXI modules that are used for signal conditioning, measurement, and data acquisition in industrial, laboratory, and research applications. The chassis provides power, cooling, and communication interfaces for the modules, facilitating the integration of SCXI signal conditioning into a wide range of data acquisition systems.

Product Parameters / Specifications:

• Form Factor:
  1U rackmount chassis (19 inches wide, single-slot)
• Number of Slots:
  Supports up to 1 SCXI module (more advanced systems can have chassis with more slots).
• Power Supply:
  • Provides ±15V DC and +5V DC power to the installed modules.
  • AC input: 100–240V, 50/60 Hz (auto-sensing)
• Communication:
  • SCXI-Bus: Communicates with the host computer or data acquisition device via the SCXI-bus, allowing for the transfer of data and control signals between the modules and the system.
  • PXI/PCI Compatibility: The system is designed to integrate with PXI, PCI, or other data acquisition systems via compatible interfaces.
• Cooling:
  • Built-in cooling system with passive ventilation, suitable for continuous operation in industrial environments.
• Dimensions:
  • Width: 19 inches (standard rack size)
  • Height: 1U (1.75 inches)
  • Depth: ~10 inches
• LED Indicators:
  • Status LEDs for power and communication monitoring.
• Operating Temperature:
  0°C to 50°C (32°F to 122°F)
• Storage Temperature:
  -40°C to 70°C (-40°F to 158°F)
• Relative Humidity:
  5% to 95%, non-condensing
• Weight:
  Approximately 2-3 kg (varies by configuration)

Product Use:

The NI SCXI-1001 chassis is used to integrate SCXI signal conditioning modules into measurement and control systems. These modules handle tasks such as:

• Signal conditioning (e.g., amplification, filtering, and isolation)
• Sensor interfacing (e.g., thermocouples, strain gauges, RTDs)
• Data acquisition (analog-to-digital conversion)
• Signal multiplexing

This chassis is ideal for applications in industries such as:

• Manufacturing (for industrial monitoring and control systems)
• Automotive (for engine testing and vehicle data acquisition)
• Aerospace (for testing and calibration)
• Research and development (for experimental setups requiring precise measurement)
• Lab environments (e.g., testing and prototyping equipment)
