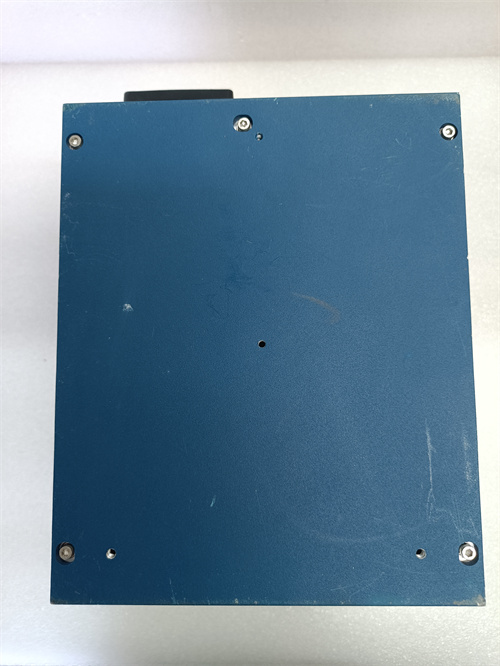

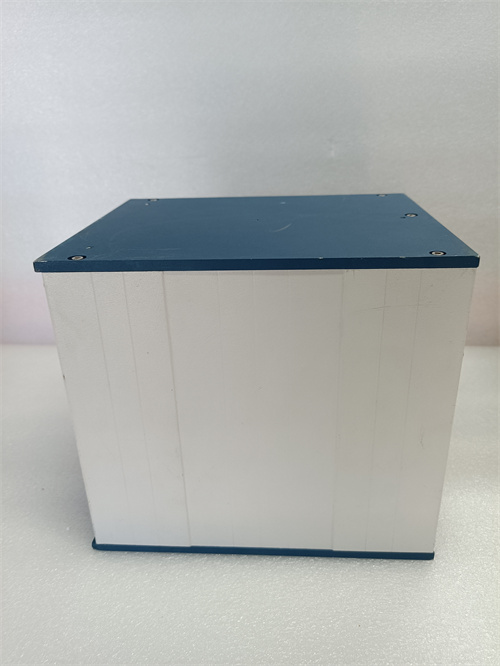

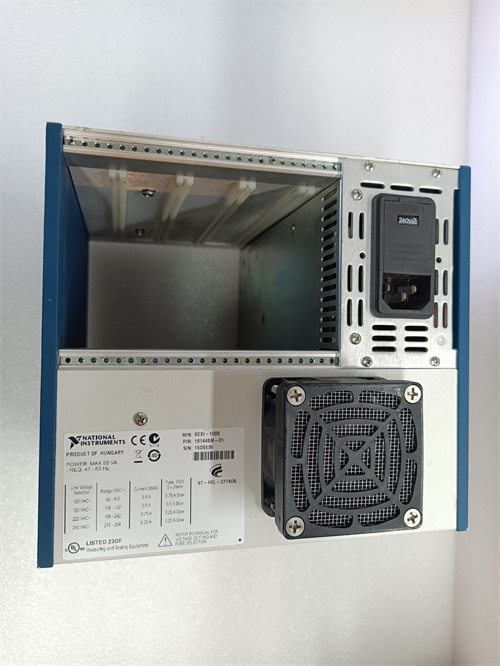

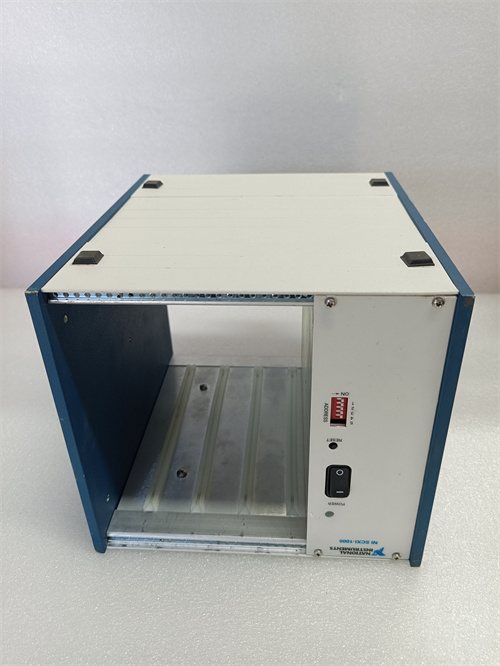

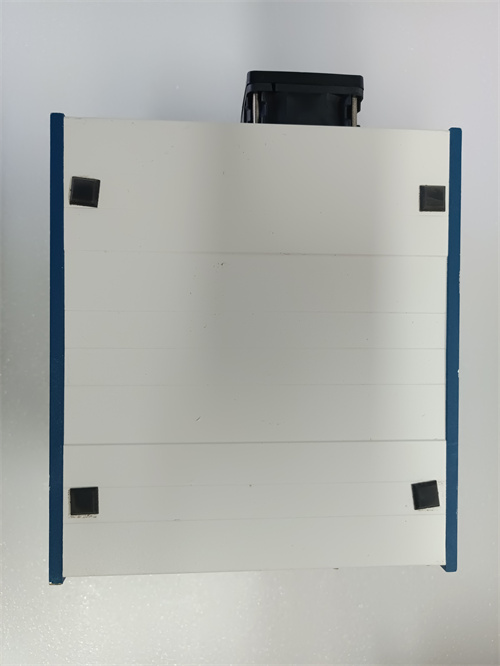

NI+SCXI-1000

Description

Product Name:

National Instruments PXI-1000 Series Racks

Product Description:

National Instruments (NI) PXI-1000 series racks are modular laboratory equipment infrastructure products that accommodate electronic instrumentation such as DAQ cards, PLCs, signal conditioning devices, DAQ cards and many other NI products. They provide a unified mechanical design and digital address space that simplifies development and deployment of data acquisition and measurement systems.

Product Parameters:

1. Power Distribution: The PXI-1000 series racks can have up to 4 slots for NI PXI modules. Module slots can be locked or unlocked and can be populated with any mix of PXI, PXI Express, or PXIe modules. The racks have high current power distribution and can be equipped with cooling fans for thermal management based on the number of modules.
2. Connectivity: They offer high-speed connectivity with support for protocols like PXI and PXIe, allowing direct connection and control of PXI and PXIe cards.
3. Ethernet Support: The rack support Local Area Network (LAN) connectivity via Ethernet ports, making it easy to connect to data acquisition systems and automation frameworks.
4. Interface: It includes front panel indicators that provide system status and communication status for easy monitoring. It also includes a USB port for programming and standalone operation.
5. Interoperability: The PXI-1000 series is compatible with a broad range of test, measurement, DAQ, and control hardware, maximizing investment.
6. Mechanical Design: It has a high-quality all-metal construction for durability and stability, and a full width sliding mechanism for easy access and maintenance.

Product Specifications:

– Material: All-Metal Construction
– Temperature Range: Operating -10°C to +45°C, Storage -20°C to +70°C
– Weight: Varies by model and configuration, typically ranging from 7kg to 17kg.
– Temperature and Humidity Limits: Operating at -10°C to +45°C, Storage at -20°C to +70°C at 40% to 90% humidity.

Product Use:

These racks can be utilized in a wide range of industries including aerospace/defense, automotive, consumer electronics, research and development, robotics, academia, and semiconductor. They are typical used for designing and building data acquisition, test and measurement, and automation systems where different kinds of NI instruments are needed. The PXI-1000 series racks offer the flexibility to configure the right system for various applications, from simple projects to complex, custom systems.
