Description

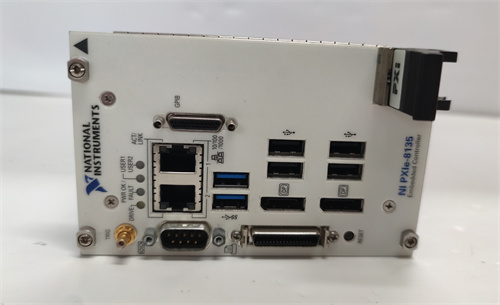

The NI PXIe-8135 is a compact, high-performance controller designed for use with the PXI Express (PXIe) platform from National Instruments (NI).

Product Name:

NI PXIe-8135

Product Description:

The NI PXIe-8135 is a 4-slot, embedded controller for the PXI Express platform. It integrates a high-performance Intel® processor with the capability to support a variety of applications that require fast data acquisition, signal processing, and extensive I/O connectivity. The PXIe-8135 controller is optimized for high-reliability and high-performance applications, making it suitable for industries such as aerospace, automotive, and manufacturing.

Product Parameters:

• Processor: Intel® Core™ i7 processor
• Form Factor: PXIe 2U
• Number of Slots: 4 PXIe slots
• Operating System: Windows or NI Linux Real-Time
• Memory: Varies with configuration; typically supports multiple GB of RAM.
• Storage: SSD/HDD options for storage capacity.
• Networking: Ethernet, USB, and other peripheral connectivity options.

Specifications:

• Power Consumption: Typically specified in watts depending on the configuration and load.
• Cooling: Active cooling features for heat dissipation.
• Bus Type: PXIe for high-speed data transfer between modules.
• Compatibility: Compatible with a wide range of NI PXI and PXIe modules for data acquisition, instrument control, and custom measurement systems.
• Dimensions: Standard PXI form factor; dimensions will fit typical rack mounts or enclosures.

Product Use:

The NI PXIe-8135 is commonly used in various applications, such as:

• Test and Measurement: Used in automated test systems for hardware-in-the-loop (HIL) testing and functional testing of electronic devices.
• Data Acquisition: For applications that require the acquisition of multiple channels of data in real time, such as in scientific research or industrial monitoring.
• Control Systems: Acts as a central controller in automation systems, enabling precise control of processes and systems.
• Signal Processing: Ideal for applications requiring signal analysis and processing in communications and radar systems.

This controller is designed to provide robust performance in demanding environments, supporting a wide range of PXIe modules to tailor systems to specific requirements.
