NI+PXI-8423

Description

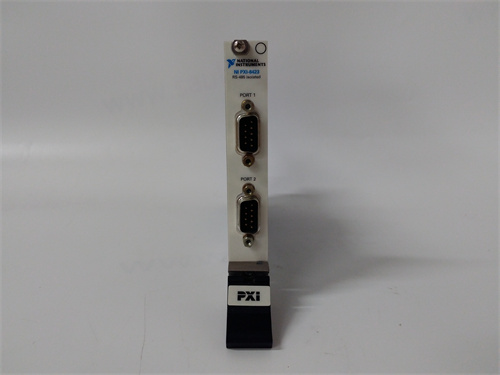

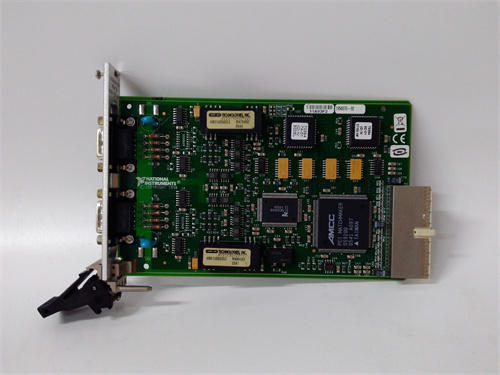

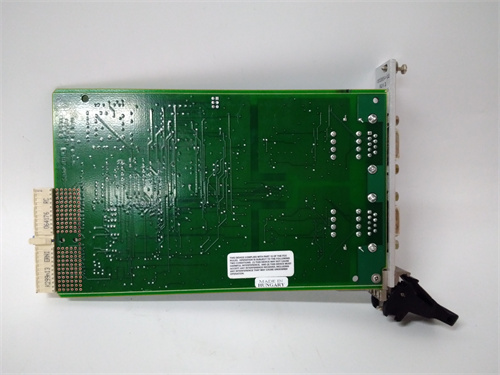

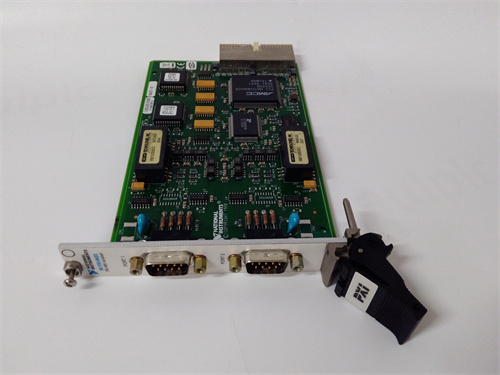

The NI PXI-8423 is a module from National Instruments designed for PXI systems.

**Product Name:**

NI PXI-8423

**Product Description:**

The NI PXI-8423 is a high-performance PXI module designed for industrial automation and data acquisition applications. It provides precise timing and synchronization capabilities, making it ideal for applications requiring deterministic control and data acquisition.

**Product Parameters:**

– **Form Factor:** PXI Module
– **Interface:** PCI Express
– **Connectivity:** High-speed digital I/O
– **Channels:** Configurable as inputs or outputs
– **Timing Resolution:** Sub-microsecond
– **Clock Synchronization:** Built-in timing and synchronization features
– **Compatibility:** Compatible with PXI chassis and systems

**Specifications:**

– **Bus Interface:** PCI Express x1
– **Digital I/O:** TTL-compatible
– **Input Voltage Range:** 0 to 5V
– **Output Voltage Range:** 0 to 5V
– **Maximum Output Current:** 24 mA per channel
– **Synchronization:** Internal clock with external trigger support
– **Software Support:** NI-DAQmx driver software for easy integration with LabVIEW and other development environments

**Product Use:**

The NI PXI-8423 module is used primarily in industrial automation, data acquisition, and control systems where precise timing and synchronization are crucial. Typical applications include:

– High-speed digital signal generation and capture
– Digital pattern generation and response analysis
– Time-sensitive measurement and control tasks
– Synchronized data acquisition across multiple channels or systems

This module is designed to provide reliable performance in demanding environments where accurate timing and synchronization are essential for effective operation and data integrity.
