NI+PXI-7344

Description

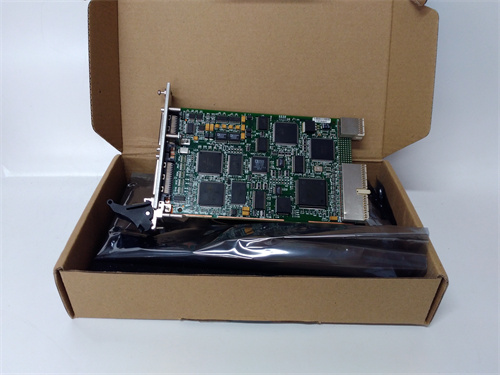

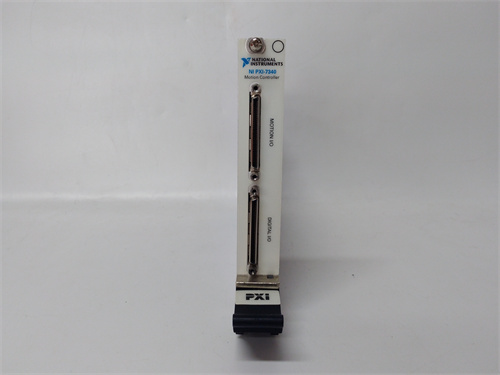

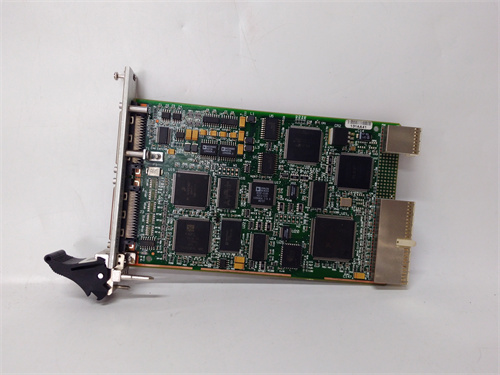

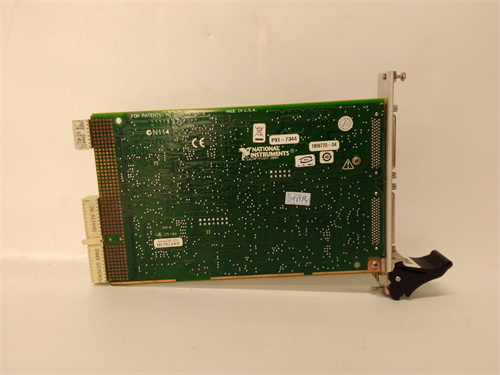

The NI PXI-7344 is a motion control and feedback module designed for high-performance industrial applications.

Product Name:

NI PXI-7344

Product Description:

The NI PXI-7344 is a 4-axis stepper/servo motion controller and driver for use in PXI systems. It provides advanced motion control capabilities and is suitable for demanding applications in industrial automation, machine control, and other motion control systems.

Product Parameters:

– Number of Axes: 4
– Motor Types: Stepper, DC servo, and brushless servo
– Maximum Output Frequency: 1 MHz
– Encoders: Quadrature, SSI, and absolute

Specifications:

– Output Current: Up to 8 A per axis
– Drive Type: PWM or DAC
– Communication Interface: PCI Express (PXI)
– Operating Temperature: 0 to 55 °C

Product Use:

The NI PXI-7344 is used for controlling and driving stepper and servo motors in applications such as robotics, automated manufacturing, CNC machines, and other machinery requiring precise motion control. It offers flexibility, high performance, and robustness for various motion control tasks.
