Description

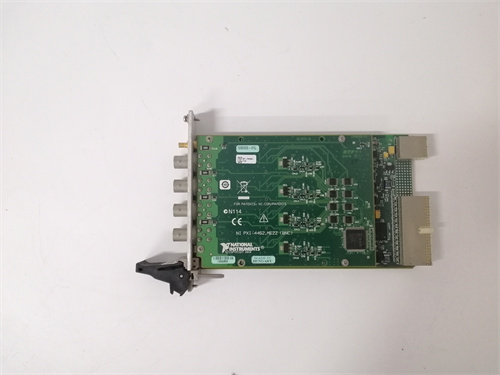

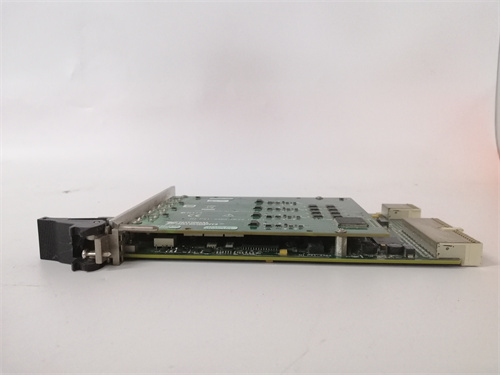

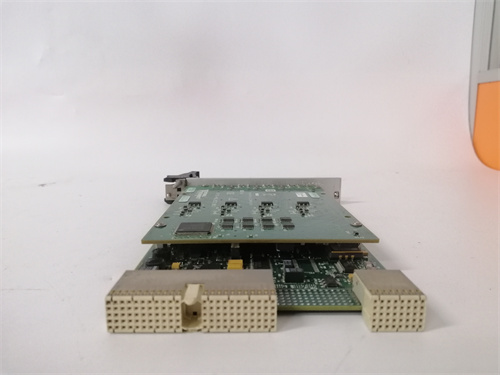

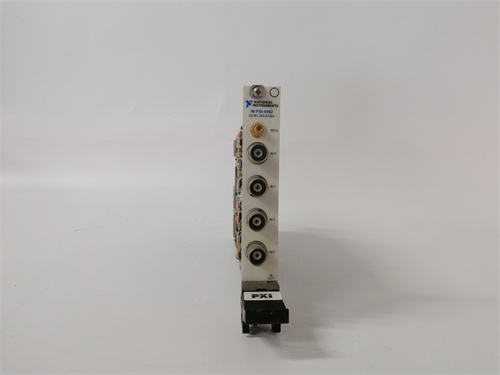

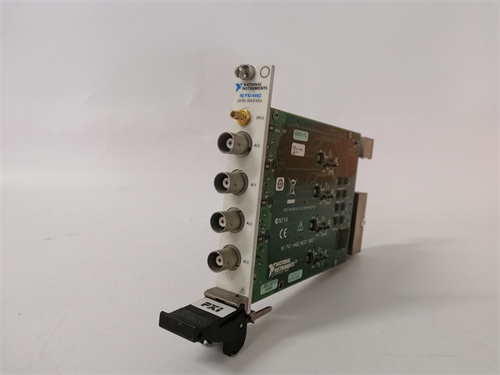

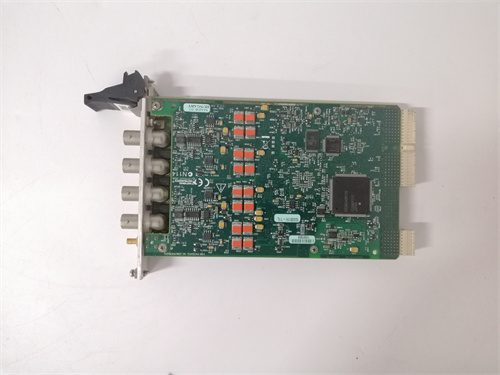

The NI PXI-4462 is a high-performance data acquisition module designed for use in PXI systems.

Product Name:

NI PXI-4462

Product Description:

The NI PXI-4462 is a 24-bit, multifunction data acquisition module that provides high-resolution voltage measurement capabilities. It is optimized for dynamic signal analysis and is suitable for a wide range of applications including audio testing, vibration analysis, and other applications requiring precise signal measurement.

Product Parameters:

• Input Channels: 4 differential or 8 single-ended
• Sample Rate: Up to 204.8 kS/s per channel
• Resolution: 24-bit
• Input Voltage Range: ±10 V, ±1 V, ±0.1 V, ±0.01 V
• Input Impedance: 1 MΩ (differential), 500 kΩ (single-ended)
• Total Harmonic Distortion (THD): -100 dB typical
• Crosstalk: -100 dB typical

Specifications:

• Analog Input: 24-bit resolution, simultaneous sampling on all channels
• Bandwidth: DC to 100 kHz
• Common Mode Rejection Ratio (CMRR): 100 dB (minimum)
• Dynamic Range: 108 dB
• Operating Temperature Range: 0 °C to 55 °C
• PXI Compatibility: PXI Express, PXI-1
• Power Requirements: +3.3 V, +5 V, +12 V, -12 V

Product Use:

The NI PXI-4462 module is widely used in various fields including:

• Automotive Testing: Analyzing vibrations and acoustic signals from vehicles.
• Aerospace and Defense: Testing sensors and performing dynamic analysis.
• Audio Testing: Measuring sound quality and distortion in audio devices.
• Research and Development: Collecting high-fidelity data for experiments and simulations.

The module integrates seamlessly into the PXI platform, allowing for modularity and scalability in test systems. It is often paired with software tools like NI LabVIEW for data analysis and visualization.
