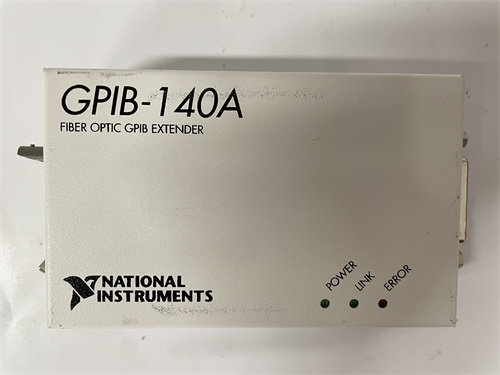

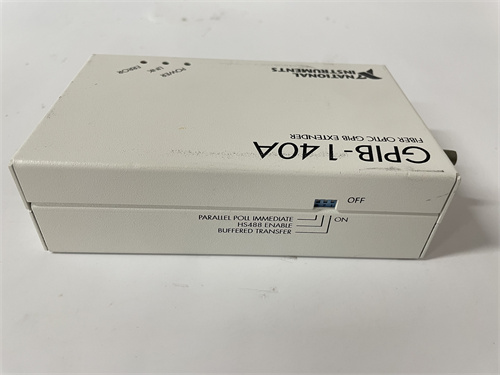

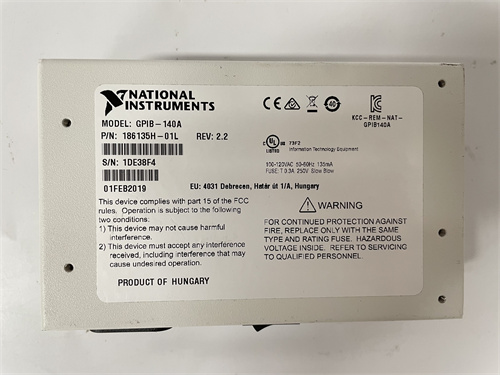

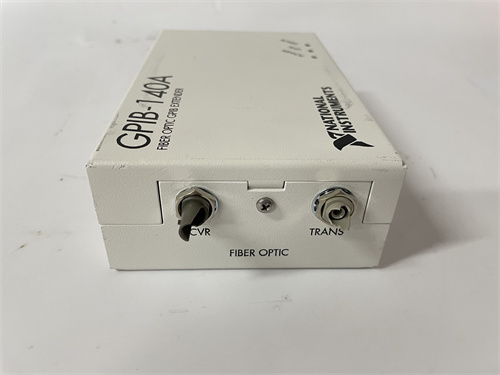

NI+GPIB-140A 186135H-01L

Description

The NI GPIB-140A is a GPIB (General Purpose Interface Bus) interface module used primarily for connecting instruments to a computer or control system in automated test and measurement setups.

Product Name

NI GPIB-140A

Product Description

The NI GPIB-140A is a high-performance GPIB interface module designed to connect to GPIB-compatible devices such as oscilloscopes, multimeters, signal generators, and more. It allows communication between the instruments and a host computer, facilitating automated data collection and instrumentation control.

Product Parameters and Specifications

• Interface: GPIB (IEEE 488.1 & IEEE 488.2 compliant)
• Bus Speed: Supports standard GPIB speeds (up to 1.5 MB/s)
• Connectors: Standard 24-pin GPIB connector
• Compatibility: Works with various National Instruments software (LabVIEW, LabWindows/CVI) and drivers
• Operating System Support: Compatible with Windows and various other operating systems depending on driver support
• Power Requirements: Powered through the host computer (no external power supply needed)
• Dimensions: Compact size suitable for integration into test setups

Product Use

The NI GPIB-140A module is used in several applications including:

• Automated Testing: Ideal for laboratories and manufacturing environments to automate testing.
• Data Acquisition: Collect data from various instruments seamlessly through GPIB.
• Instrument Control: Provides remote control capabilities for GPIB-compatible instruments.
• Research and Development: Used in engineering and scientific research for data analysis and instrument management.

Additional Features

• Plug-and-Play Setup: Easy installation with minimal configuration required.
• Comprehensive Documentation: Comes with extensive user manuals and application notes for implementation guidance.

This module is often favored for its reliability and compatibility with various GPIB equipment, making it a versatile choice for engineers and technicians involved in electronic testing and measurement.
