NI+GPIB-140A 186135G-01

Description

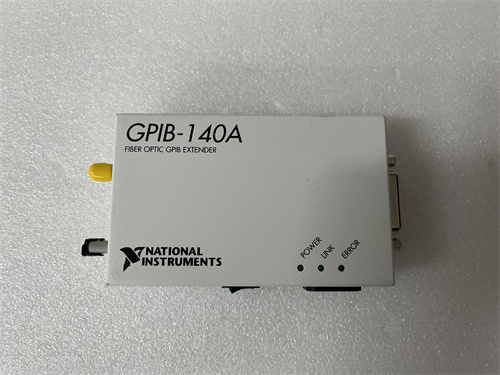

The NI GPIB-140A is a GPIB (General Purpose Interface Bus) interface module produced by National Instruments (NI).

Product Name:

NI GPIB-140A

Product Description:

The NI GPIB-140A is a GPIB interface device that enables communication between computers and instruments that comply with the IEEE 488 standard. This device is part of the National Instruments’ GPIB product line, designed to facilitate automated testing and control applications. It acts as a bridge for connecting multiple test and measurement instruments to a controlling PC, allowing for easy integration into measurement systems.

Product Parameters:

Interface Type: GPIB (IEEE 488)
Connection Type: PCI or PCMCIA (depending on configuration)
Compatibility: Works with a variety of instruments that support GPIB communication
Data Transfer Rate: Up to 1.5 MB/s (varies by configuration and system)
Power Requirements: Powered through the host computer or external power supply, depending on model

Specifications:

Dimensions: Depends on the form factor (PCI/PCMCIA)
Operating System Compatibility: Windows, Linux, and others, depending on driver support
Driver Software: NI-488.2 driver for GPIB, enabling instrument communication and control
Maximum Devices: Can support up to 14 GPIB devices on a single bus
Bus Length: Up to 20 meters between devices in a standard GPIB configuration

Product Use:

The NI GPIB-140A is primarily used in laboratory environments for:
Automated Testing: Integrating various instruments to perform automated measurements and tests in electronics, manufacturing, and research laboratories.
Data Acquisition: Collecting data from measurement devices such as oscilloscopes, signal analyzers, and multimeters for analysis and logging.
Control Applications: Managing test setups that require multiple instruments to work in concert, enhancing the efficiency of testing procedures.
Research and Development: Assisting engineers and scientists in developing new products by providing a reliable platform for instrument communication.

The NI GPIB-140A is valued for its reliability and compatibility with a broad range of test instruments, making it a staple in many instrumentation and measurement systems.
