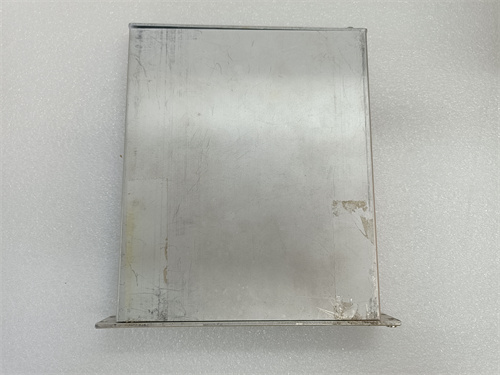

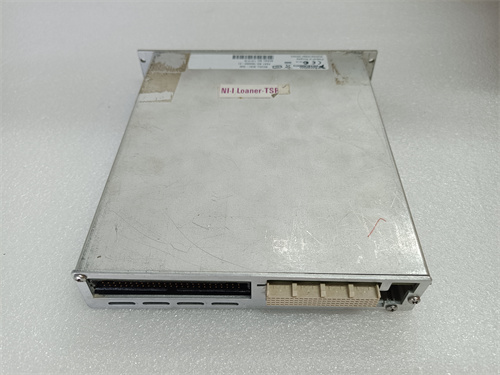

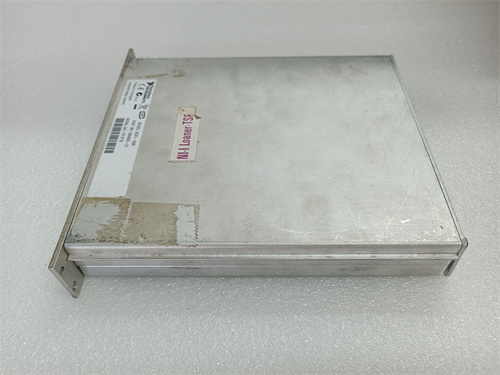

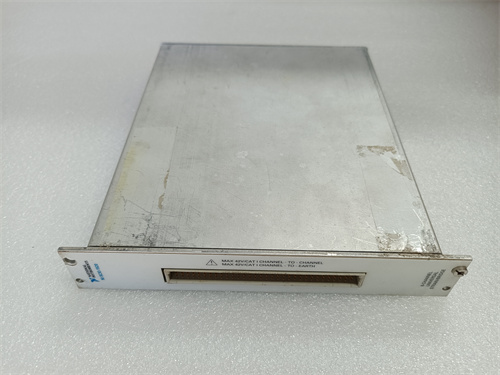

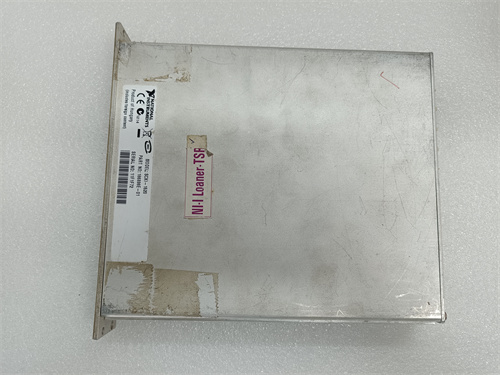

NI SCXI-1520

Description

The NI SCXI-1520 module is a 32-channel universal input module designed for data acquisition and signal conditioning in automated test and measurement applications. Here are the details for the product:

Product Name: NI SCXI-1520
Product Description: The NI SCXI-1520 is a multifunction input module that provides 32 channels of signal conditioning for a wide range of sensor types.
Product Parameters:

– Input Channels: 32 differential or 64 single-ended channels
– Input Types: Voltage, thermocouple, RTD, strain gauge
– Input Ranges: Configurable per channel
– Maximum Voltage Range: ±10 V
– Maximum Sampling Rate: Up to 1.25 kS/s
– Resolution: 24-bit
– Connectivity: Compatible with SCXI signal conditioning modules
– Measurement Accuracy: Depends on sensor type and range

Specifications:

– Dimensions: 142 x 241 x 64 mm (5.6 x 9.5 x 2.5 in)
– Weight: 1.5 kg (3.3 lb)
– Power Consumption: 6 W
– Operating Temperature: 0 to 55 °C

Product Use:

The NI SCXI-1520 module is typically used in industrial and laboratory environments for measuring various signals from sensors such as voltage, temperature, and strain gauges. It can be integrated into a SCXI chassis along with other signal conditioning modules to create a flexible and scalable data acquisition system. The module is commonly used in applications such as environmental monitoring, structural testing, and process control.
