NI-9505

Description

Product Name:

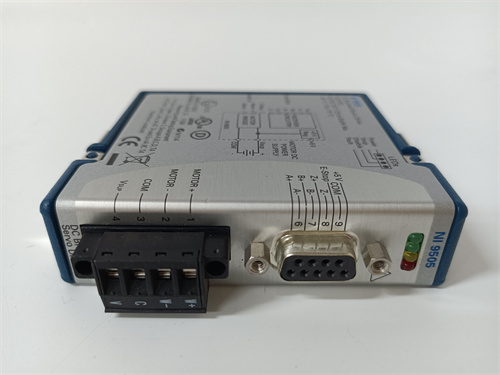

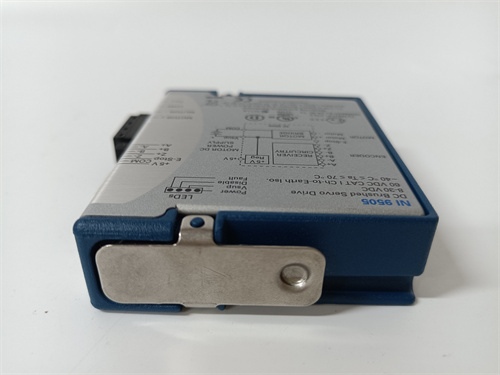

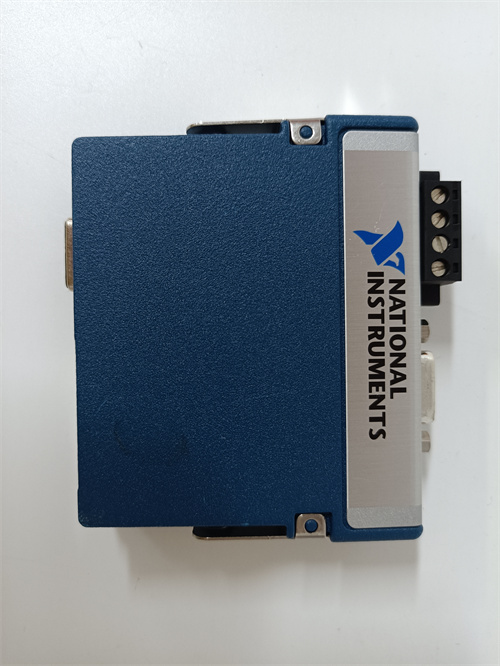

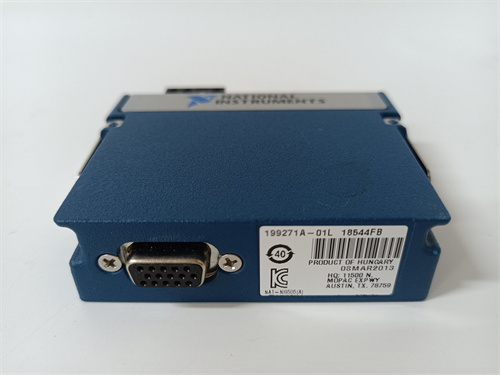

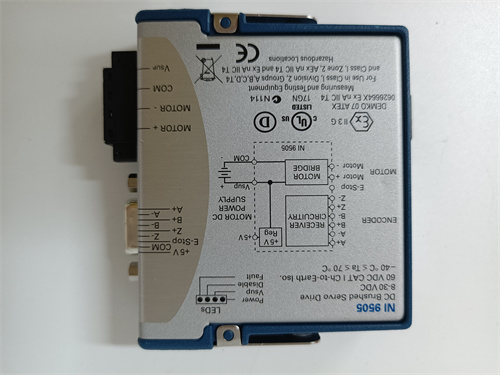

NI-9505 (National Instruments C Series Module)

Product parameters:

Motor power rating: The specific power rating depends on the selected motor and operating voltage, but NI offers a wide range of compatible brush DC motors
Rated voltage: The module generally works between 24V and 100V DC voltage
Current rating: The continuous current rating depends on the selected voltage and heat dissipation considerations. However, peak current ratings are higher for short periods of time.
Input/Output (I/O): Includes digital and analog I/O for sensor interfaces and control signal transmission.

Specifications:

Function: Brushed DC servo drive module of CompactRIO system
Communication: The backplane connector communicates with the CompactRIO chassis for control and data exchange
Control mode: Support position, speed, torque control and other control modes to achieve accurate motor operation
Programming: Programming with software tools such as LabVIEW from National Instruments for real-time control applications
Industrial applicability: Built for industrial environments with anti-noise, anti-vibration and wide operating temperature range
