Description

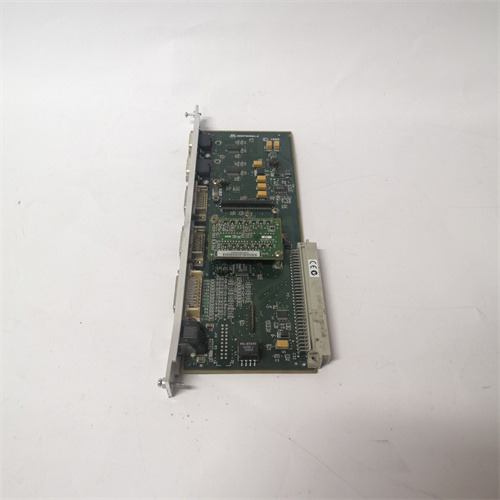

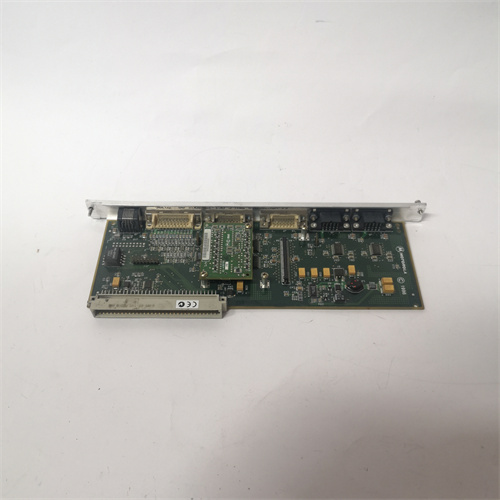

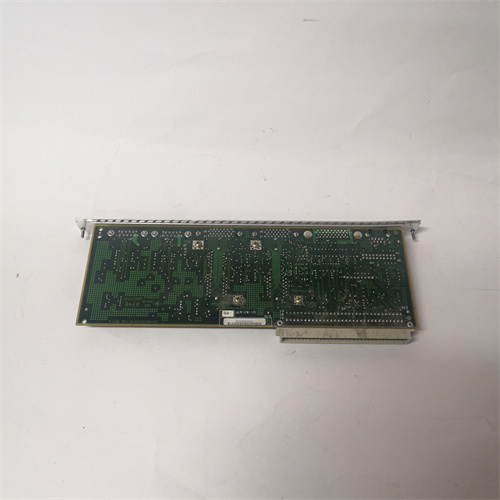

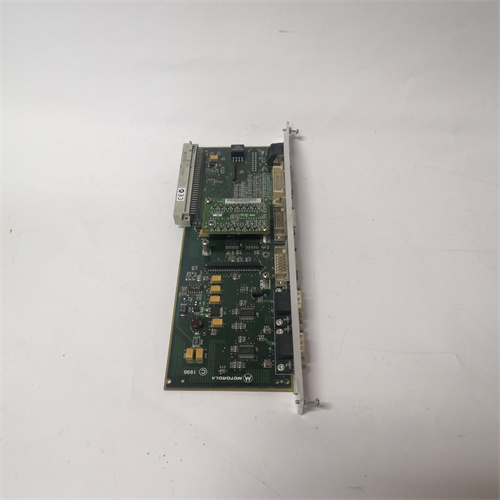

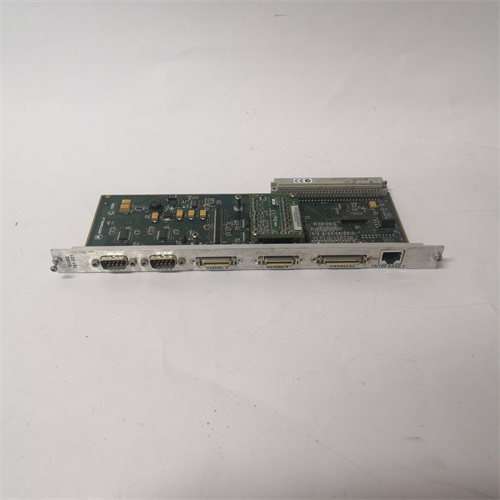

The Motorola MVME761-001 is a versatile VME (Versa Module Eurocard) single-board computer (SBC) commonly used in various industrial and embedded applications.

### Product Name:

**MOTOROLA MVME761-001**

### Product Description:

The MVME761-001 is a VMEbus single-board computer designed for demanding applications within automated systems, control, data acquisition, and telecommunications. It integrates a high-performance processor and various I/O capabilities, making it suitable for a range of industrial environments.

### Product Parameters and Specifications:

– **Processor**: Motorola 68040 microprocessor (or equivalent).
– **Clock Speed**: Typically 25 MHz, but specifications might vary.
– **Memory Support**:
– **RAM Options**: Configurable options typically include 4 MB to 64 MB of RAM (varies by configuration).
– **ROM Options**: Usually includes a boot ROM for system initialization.
– **Bus Structure**:
– Compliant with VMEbus protocol (IEEE 1014).
– Address space support for both 24-bit and 32-bit addressing.
– **I/O Interfaces**:
– Serial communication ports (often RS-232/RS-422).
– Possible Ethernet interface for network connectivity.
– Parallel I/O ports.
– Additional bus interfaces depending on configuration (e.g., SCSI, local bus connections).
– **Operating System Compatibility**: Typically used with real-time operating systems (RTOS) or standardized operating systems like VxWorks, Linux, or QNX depending on the installation.
– **Dimensions**: Standard VME card dimensions (6U x 160mm).
– **Power Requirements**:
– Typically operates at +5V supply; power consumption is dependent on configuration.

### Product Use:

The MVME761-001 is tailored for various applications, particularly in the industrial domain. Its uses include, but are not limited to:

– **Industrial Automation**: Used for controlling machinery, robotics, and production lines.
– **Data Acquisition Systems**: Capable of gathering and processing data from multiple sensors and input sources.
– **Telecommunications**: Often employed in systems that require robust processing and communication capabilities.
– **Embedded Control Systems**: Suitable for deployment in embedded systems that require real-time processing and control.

### Additional Features:

– **Expansion Options**: The MVME module may support additional plug-in cards for increasing functionality (e.g., additional I/O, communication ports).
– **Development Kits**: Often available to assist developers in creating tailored applications for the MVME board.
